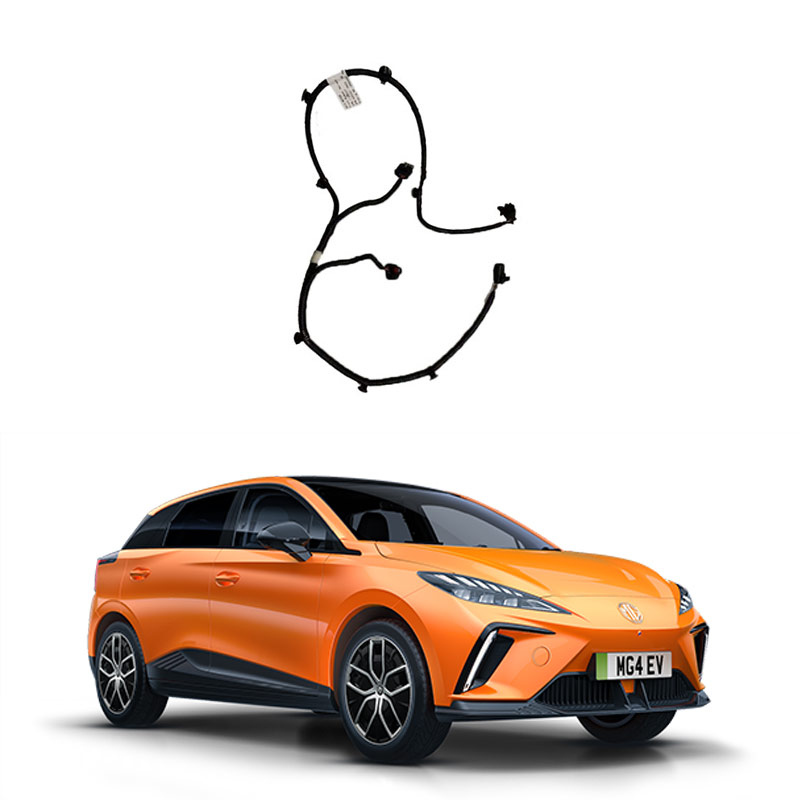

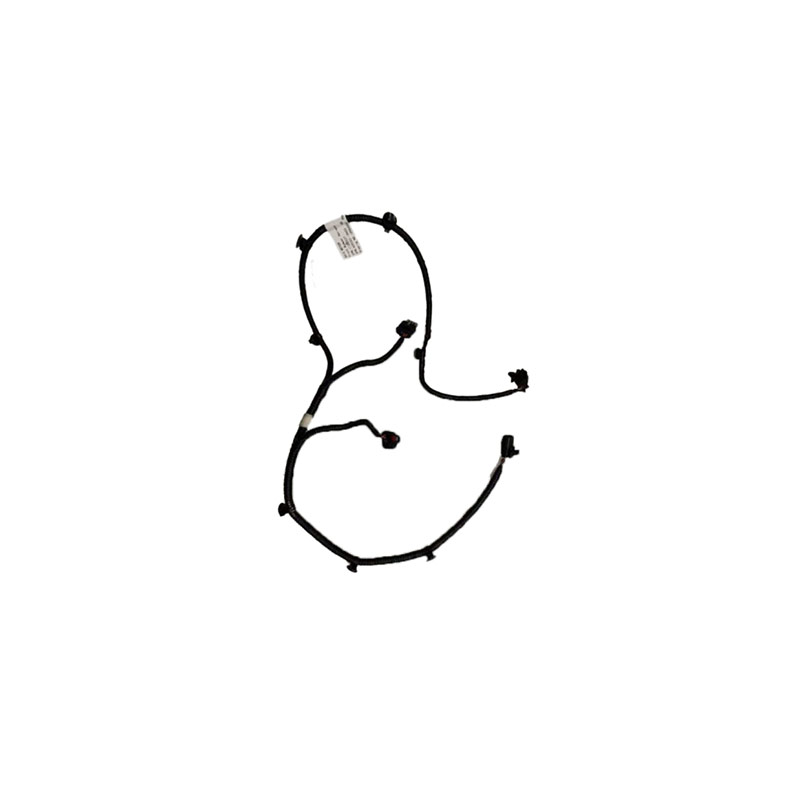

What is a car air intake grille wiring harness
The automotive air intake grille wiring harness is a wiring harness assembly installed at the position of the automotive air intake grille, mainly used to connect electrical components and achieve signal transmission and power distribution.
Structural features
It is usually composed of wires, connectors (such as the first, second, and third connectors), and waterproof protective structures (such as the left cover and right cover). It is insulated and fixed with moisture-proof absorbent pads and cloth tape to ensure reliable operation in harsh environments.
Function and role
Youdaoplaceholder0 Signal transmission : Transmits sensor instructions or control signals, such as lighting control signals;
Youdaoplaceholder0 Power distribution : provides stable current for components such as vehicle lamps and sensors;
Youdaoplaceholder0 Waterproof protection : Through the bolt-fixed structure and sealing design of the left and right covers, it prevents the circuit from getting damp or short-circuiting.
This wiring harness must meet the high standards of the automotive industry for electrical performance, temperature resistance, etc., and especially in scenarios involving lighting control, electromagnetic compatibility must be ensured.
The active air intake grille is a device that can automatically adjust the opening degree and is usually installed in front of the car's grille or engine compartment.
Its working principle mainly involves automatic adjustment based on the engine's temperature and vehicle speed.
When the car is just started, especially in the cold winter when the engine temperature is low, the active air intake grille will automatically close. Doing so can prevent external cold air from entering the engine, allowing the car interior to quickly fill with hot air, enabling the engine to reach the optimal working temperature in a short time, achieving rapid warm-up of the vehicle and faster supply of heating to the cabin.
When the engine temperature rises to a certain extent, the active air intake grille will automatically open to prevent the engine temperature from being too high and always maintain it at the optimal working temperature.
If the air intake grille remains open all the time, it will increase the wind resistance of the car, raise the driving burden of the car and lead to higher fuel consumption.
Vehicle speed is also one of the factors affecting the opening and closing of the active air intake grille. During driving, the automatically closing grille will open and close appropriately according to the vehicle speed and engine temperature to reduce wind resistance and enhance the stability of the car. Moreover, reducing the burden on the car and maintaining the engine at the optimal temperature continuously can make the fuel burn more fully, thereby lowering fuel consumption.
The working process of the active air intake grille is fully controlled by the vehicle's computer ECU, without the need for manual intervention by the driver. It intelligently and automatically adjusts the opening degree of the air intake grille to enable the engine to enter the best working state in the shortest time, improving fuel economy and stability.
Faults in the wiring harness of a car's air intake grille are usually manifested as the following symptoms:
Fault manifestation
Youdaoplaceholder0 Abnormal opening and closing of the air intake grille : Abnormal control signals of the wiring harness may cause the air intake grille to fail to close normally or remain open continuously, affecting the heat dissipation efficiency.
Youdaoplaceholder0 Air conditioning system abnormality : Problems such as failure of the cooling function and no cold air output from the air outlet may occur. Some models may also experience failure of the seat ventilation function.
Youdaoplaceholder0 Abnormal dashboard warning light : The engine fault light may be on, indicating an electrical fault in the system.
Youdaoplaceholder0 Difficulty in starting or power outage : Severe malfunctions may cause the vehicle to fail to start or suddenly lose power while driving (with a relatively low probability).
Common causes
Youdaoplaceholder0 Short circuit or open circuit : Surface damage, internal open circuit or short circuit of the wiring harness can cause abnormal transmission of control signals.
Youdaoplaceholder0 Component damage : A malfunction of the air intake grille motor or temperature sensor may indirectly cause abnormal load on the wiring harness.
Solution
Youdaoplaceholder0 Check the condition of the wiring harness : Observe whether there is any damage, cracking or loose connection on the surface of the wiring harness.
Youdaoplaceholder0 Professional maintenance : Fault codes need to be read through a diagnostic instrument, with a focus on checking the continuity of the circuit and the resistance value. Damaged wiring harnesses should be replaced if necessary.
Youdaoplaceholder0 Warranty treatment : If the damage is not caused by human factors within the warranty period, the wiring harness can be repaired or replaced free of charge.
It is recommended to contact a professional maintenance institution for inspection in a timely manner upon discovering the above symptoms to avoid damage to other systems caused by wiring harness faults.
