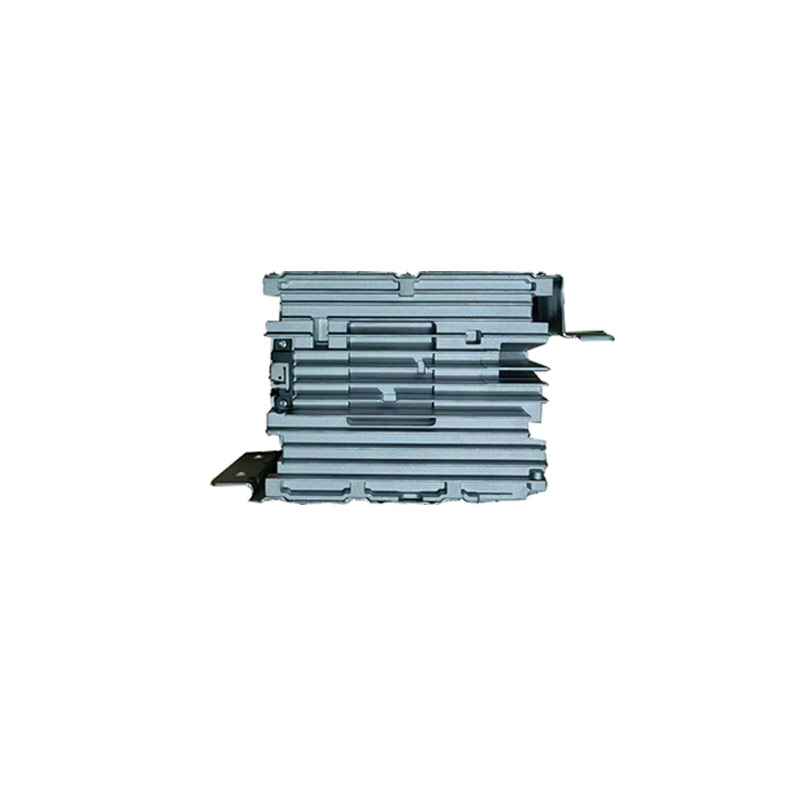

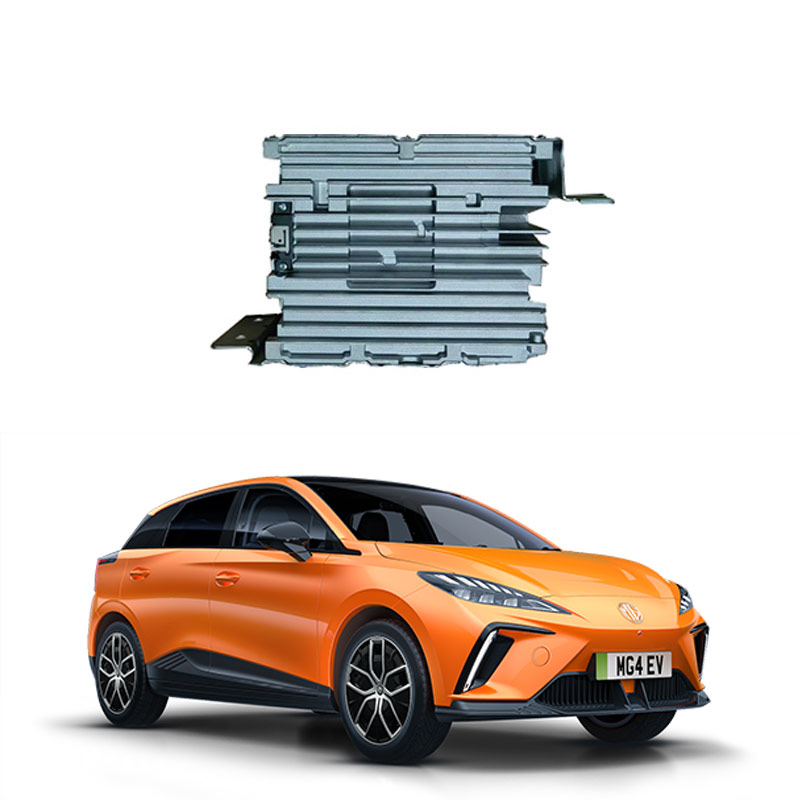

What is an automotive mainframe module assembly
The term "automotive host module assembly" is not a standard term and may refer to two situations:
Youdaoplaceholder0 Body control module (BCM) : responsible for controlling body electronic devices such as lights, door locks, and Windows, and communicating with other systems via CAN/LIN bus.
The main module assembly may refer to non-standard components and should be confirmed in combination with the specific vehicle model or manufacturer's definition.
It is recommended to consult the 4S store or professional maintenance personnel about the specific component referred to as the "main engine module assembly" for the particular model.
The automotive host module assembly is the core component of the body control system, mainly undertaking the dual tasks of vehicle function control and information processing. The following are its main functions:
Function control
Youdaoplaceholder0 Central control : Integrates the control functions of electronic components of the vehicle body such as door locks, window lifting, and central door locks, and realizes remote control operation through high-frequency transceivers.
Youdaoplaceholder0 Lighting management : Automatically adjust the illumination range of the headlights and control the on/off status of the vehicle lights (low beam/high beam/turn signal/brake light, etc.).
Youdaoplaceholder0 Safety protection : Integrated anti-lock braking system (ABS), central door lock control and other safety functions ensure driving safety.
Information processing
Youdaoplaceholder0 Communication hub : Communicates with the engine control module, ABS module, etc. via CAN/LIN bus to achieve data sharing and collaborative control.
Youdaoplaceholder0 Fault diagnosis : Some models support the OBD-II protocol, which can monitor the vehicle status in real time and provide fault code prompts.
Extended functions
Youdaoplaceholder0 Multimedia integration : Some models integrate functions such as navigation and reversing camera into the main unit module, simplifying the operation process.
Youdaoplaceholder0 Comfort optimization : Supports window anti-pinch function, instrument backlight adjustment and other humanized designs.
The main modules of different vehicle models vary in hardware configuration and software versions. The specific functions need to be determined in combination with the vehicle model configuration.
The failure of the automotive main module assembly usually refers to the failure of the body control module (BCM), which can cause abnormalities in various electronic systems of the vehicle. The following are the specific fault phenomena and repair methods:
Common fault phenomena
Youdaoplaceholder0 Electrical component abnormality : Malfunction of components such as headlights, wipers, window regulators, and central locking.
The safety system is affected : the anti-theft system and the automatic locking function during driving are abnormal, which may cause the vehicle to fail to start normally or stall.
The dashboard display is abnormal : the speedometer, fuel indicator and other signal lights cannot be displayed, which interferes with driving operations.
Youdaoplaceholder0 Load management failure : This may result in the inability to use comfort functions such as air conditioning and seat adjustment.
Repair method
Youdaoplaceholder0 Read the fault code : Use professional equipment to detect the module data and determine the specific cause of the fault (such as short circuit, sensor damage or system disorder).
Youdaoplaceholder0 Replace module : If the module is damaged and needs to be replaced with an original or compatible model, it is recommended to have it handled at a professional repair shop.
It is recommended to contact the 4S store or a professional maintenance institution for inspection as soon as possible to avoid affecting driving safety.
The damage of the automotive main unit module assembly needs to be diagnosed and handled based on the specific fault manifestations:
Fault diagnosis
First, it is necessary to use professional diagnostic equipment to confirm the type and extent of damage of the faulty module. For software issues, you can try reprogramming or updating the system. If hardware is damaged, you need to replace it with genuine matching accessories.
The processing methods for different module assemblies
Youdaoplaceholder0 engine control module assembly
Damage can cause difficulty in starting the engine, reduced power or the warning light to come on. It is necessary to check the line connection and reprogram it if necessary. If it is ineffective, the assembly needs to be replaced.
Youdaoplaceholder0 electronic brake module assembly
It is manifested as weakened braking effect or an alarm. The sensors and circuits need to be inspected. If the repair is ineffective, the assembly must be replaced to ensure braking safety.
Youdaoplaceholder0 body control module assembly
The malfunction may cause the car Windows, door locks to fail or the circuit to malfunction. Short circuit/open circuit issues need to be investigated, and faulty components should be replaced to restore functionality.
