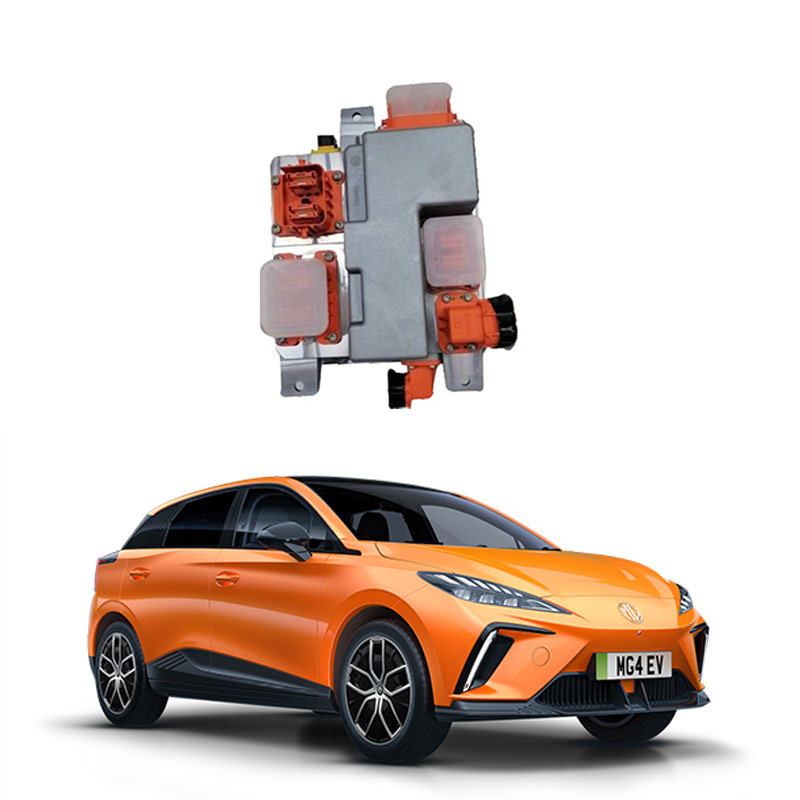

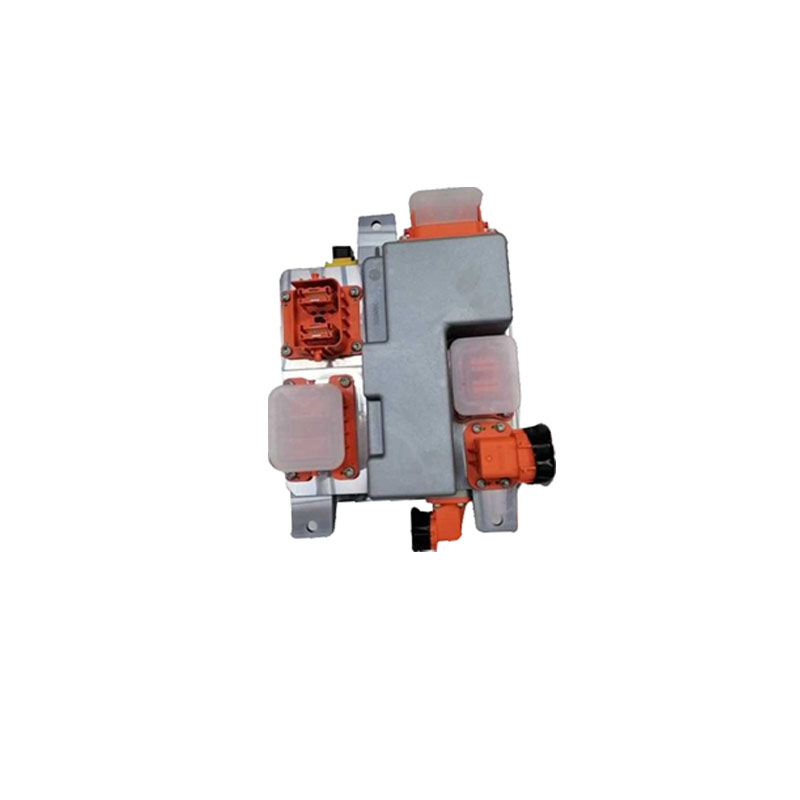

What is a high-voltage power distribution unit for automobiles
The automotive high-voltage distribution unit (PDU) is a core component in the high-voltage system of new energy vehicles, mainly responsible for power distribution and management to ensure the safe and stable operation of the vehicle's high-voltage components.
Main functions
Youdaoplaceholder0 Power distribution and management : Safely distribute high-voltage direct current to various electrical equipment, such as drive motors, charging systems, etc.
Youdaoplaceholder0 charge and discharge control : Manages the charge and discharge process of the high-voltage system, including overload protection, short-circuit protection and high-voltage sampling function.
Youdaoplaceholder0 low-voltage control : power-on control and status monitoring of high-voltage components through low-voltage circuits.
Youdaoplaceholder0 heat dissipation design : Some PDUs adopt water cooling or air cooling structures to ensure the heat dissipation requirements of high-voltage components.
Structural features
The PDU can integrate functions such as DC-DC conversion modules, charging OBC modules, and BMS main control, achieving a highly integrated design. For instance, three-in-one and four-in-one modules can integrate multiple functional units to meet the demands of different vehicle models.
The automotive high-voltage distribution unit (PDU) is the core control device of the high-voltage system in new energy vehicles, mainly realizing the functions of power distribution and safety protection. The following are its main functions:
High-voltage electrical energy distribution
The PDU distributes the high-voltage direct current (300-800V) output by the power battery to key components such as the drive motor, on-board charger (OBC), DC/DC converter, and electric air conditioning compressor. For instance, the drive motor controller accounts for approximately 60% of the electrical output, with the rest allocated to auxiliary systems such as charging and heating.
Safety protection mechanism
Including overcurrent, short circuit, overvoltage and overheat protection:
Youdaoplaceholder0 overcurrent protection : When the current exceeds 120% of the rated value for 2 seconds, the main contactor is disconnected and the fuse is blown
Youdaoplaceholder0 Short-circuit protection : When the impedance is lower than 100mΩ, the circuit is cut off in microseconds
Youdaoplaceholder0 Over-temperature protection : When the temperature of the copper busbar exceeds 110℃, it will gradually reduce the load or cut off the power
Youdaoplaceholder0 Insulation detection : can identify the risk of insulation failure <500Ω/V and trigger an alarm
System integration and control
It integrates DC/DC conversion module, charging control unit and BMS main control function, and supports modular design. The VCU instructions are received through the CAN bus to achieve the power-on/power-off sequence control of the high-voltage circuit (response time <50ms), and the power distribution strategy is dynamically adjusted (such as prioritizing the shutdown of non-essential loads during charging).
Performance indicators
Distribution efficiency ≥98% (under rated load)
The insulation strength can withstand 2500V AC for 60 seconds without breakdown
The mechanical life of the high-voltage relay is over 100,000 cycles
Supports adaptive load matching function (reducing energy consumption by 5-8%)
Faults in the high-voltage distribution unit of a vehicle usually lead to abnormal power systems, charging interruptions or damage to electrical components, which are specifically manifested as:
Fault phenomenon
Youdaoplaceholder0 Power system failure : The vehicle cannot accelerate normally, and the maximum speed is limited (for example, the speed in the case is only 40km/h)
Youdaoplaceholder0 Abnormal charging : AC/DC charging is interrupted or cannot be started (check for faults in the charging contactor line or sensor)
Youdaoplaceholder0 Instrument alarm : Displays "High voltage system fault" or "power system fault" prompt
Youdaoplaceholder0 Electrical component protection : The system automatically cuts off the high-voltage circuit to prevent further damage (such as motor controllers, power batteries, etc.)
Common causes
Youdaoplaceholder0 high-voltage interlock circuit open circuit : abnormal monitoring signals cause system locking (such as poor line contact, circuit breaker tripping)
Internal faults of the distribution box : the contactor of the high-voltage distribution box gets stuck, and the leakage detection fails
Youdaoplaceholder0 Short circuit or overload : damage to the insulation layer of the high-voltage wiring harness causes a short circuit to ground
Diagnostic methods
Youdaoplaceholder0 Read the fault code : Obtain the specific fault code (such as P1E0300, B042900) through the decoder
Youdaoplaceholder0 signal waveform test : Monitor whether the duty cycle signal of the high-voltage interlock circuit is normal (professional equipment is required)
Youdaoplaceholder0 circuit test verification : Observe the response of electrical components (such as the power supply status of the motor controller) in simulated fault scenarios
It is recommended to contact a professional maintenance institution for high-voltage circuit testing to avoid potential safety hazards caused by self-disassembly.
If you want to know more, keep reading the other articles on this site!
