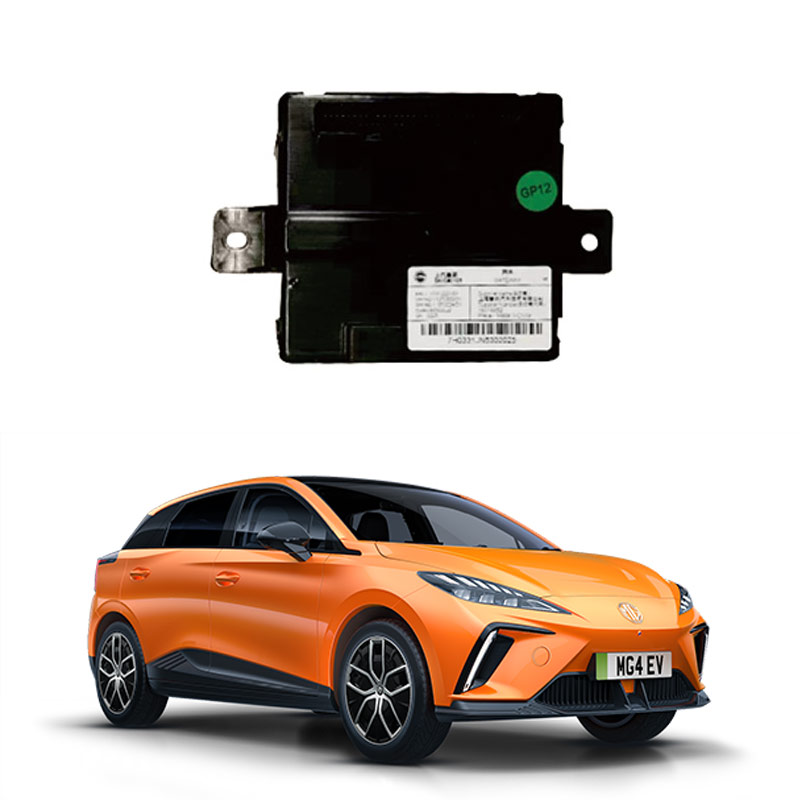

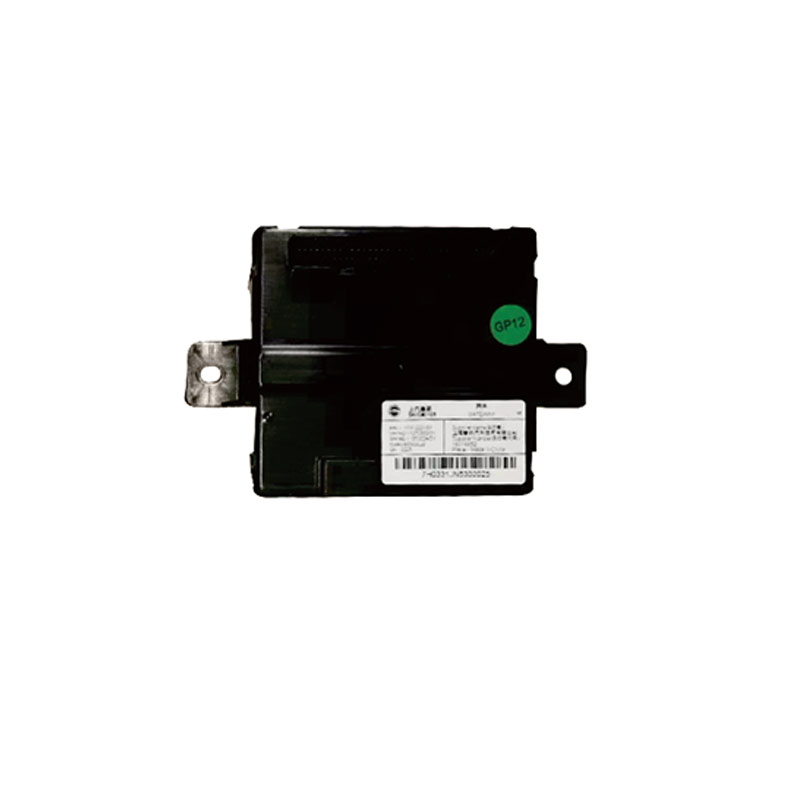

What is the automotive gateway control module
The automotive gateway control module is a core component of the vehicle's electronic system, mainly responsible for coordinating data communication and system control between different networks.
Main functions
Youdaoplaceholder0 Protocol conversion and data exchange
The communication protocols of various modules such as the engine ECU, ABS, and body ECU are uniformly converted into standard formats to achieve cross-system data sharing.
Youdaoplaceholder0 Fault diagnosis and recording
Monitor the operation status of the system in real time and record key data to quickly locate faults.
Youdaoplaceholder0 system collaborative management
Integrate subsystems such as the engine, body electronics, and safety to ensure the overall performance stability of the vehicle.
Common locations
Youdaoplaceholder0 car : usually located behind the dashboard of the cockpit or in the passenger compartment.
Youdaoplaceholder0 SUV : mostly located in the rear storage space (such as near the trunk).
Youdaoplaceholder0 sports car : Some models will install it near the firewall in the engine compartment.
The automotive gateway control module is a core component of the automotive electronic network system. Its main functions include:
Protocol conversion and data routing
Responsible for converting signals from different bus protocols (such as CAN, LIN, MOST, etc.) into a unified format and forwarding key data (such as engine status to the dashboard) between different networks as required.
Priority scheduling and rate adaptation
Schedule the data sent by each module according to priority and adjust the transmission speed to match the rate differences of different buses (for example, high-speed CAN of the engine and low-speed CAN of the comfort system).
Safety isolation and protection
By using the firewall function to block unauthorized access, it ensures that critical control networks (such as power systems) are not disturbed and guarantees network security.
System collaboration and fault diagnosis
Activate each control unit and maintain the synchronous operation of the network, while integrating diagnostic functions to monitor the network status and handle errors.
A malfunction of the gateway control module can lead to communication interruption among various modules of the vehicle, thereby causing multiple functional abnormalities
Main fault manifestations
Youdaoplaceholder0 system coordination failure : Functions that rely on multi-module collaboration, such as automatic door locking, window lifting and lowering, and wipers, fail.
Youdaoplaceholder0 Wireless connection issue : This may cause the vehicle to be unable to connect to the wireless network or have weak WIFI signals, affecting intelligent interconnection functions (such as remote control, navigation, etc.).
Youdaoplaceholder0 Electrical control abnormalities : flashing lights or failure to light up, abnormal turn signals, out-of-control air conditioning temperature, etc.
Youdaoplaceholder0 Safety configuration risk : Issues such as airbags not deploying, seat belts not being tightened, and P gear locking may cause safety hazards.
Fault detection suggestions
It is recommended to use a vehicle fault diagnostic instrument to read the fault code and give priority to checking the status of the power line and communication network. If self-inspection fails, you need to go to a professional repair point to replace the compatible control module.
Note: The specific fault symptoms may vary depending on the model and cause of the fault. It is recommended to contact the 4S store in a timely manner for a comprehensive inspection.
Damage to the car gateway control module can cause communication interruption in the vehicle's internal systems, which in turn leads to various functional abnormalities and requires timely professional maintenance.
Main influence
Youdaoplaceholder0 system communication interruption
The gateway control module is responsible for coordinating the data transmission of key systems such as the engine control unit and the body control module. If it is damaged, it will result in the failure to transmit start signals (such as ignition failure), abnormal instrument panel display (such as missing information like vehicle speed and fuel level), and electronic equipment failure (such as the inability to use multimedia and air conditioning).
Youdaoplaceholder0 The security system is restricted
Data sharing involving safety features such as anti-lock braking system (ABS) and electronic stability program (ESP) is blocked, which may lead to response delays in emergency situations.
Youdaoplaceholder0 Abnormal wireless network connection
It may result in the inability to connect to wireless networks or search for WIFI signals, affecting intelligent interconnection functions (such as remote control, navigation, etc.).
Handling suggestions
Professional personnel should use diagnostic equipment to detect fault codes. After determining the specific problem, line repair, sensor replacement or module upgrade should be carried out.
