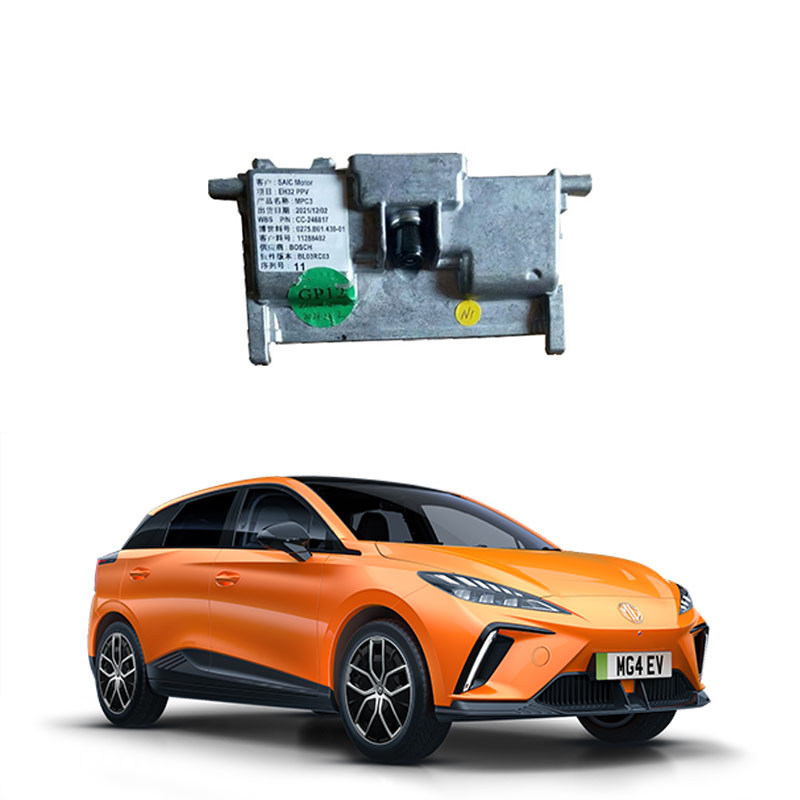

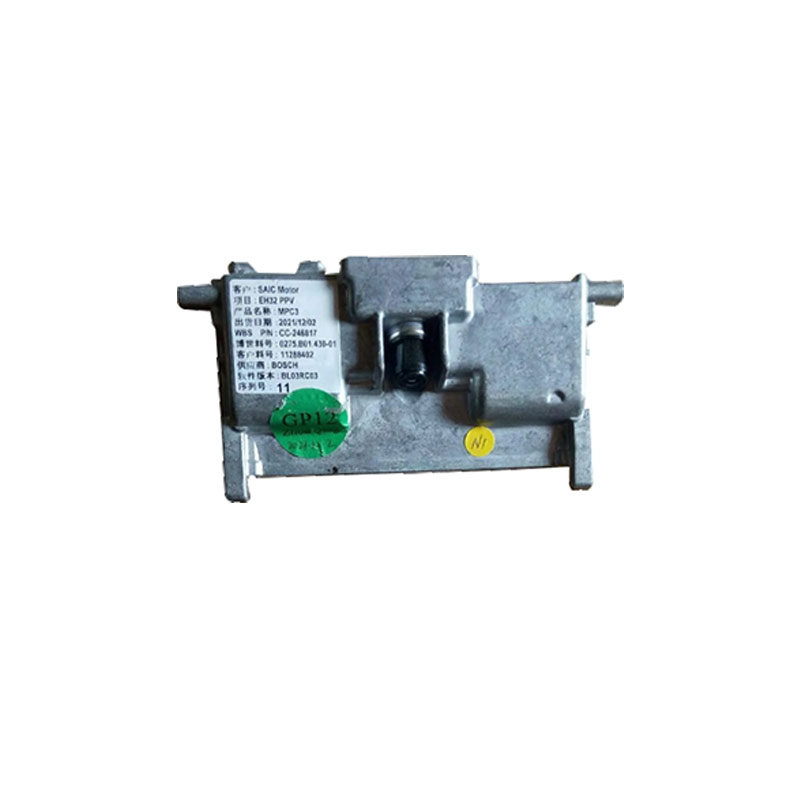

What is the function of the front-view camera module in a car
The automotive front-view camera module is a core component of the ADAS system and mainly realizes the following functions:
Obstacle recognition and distance measurement
Through digital image processing technology, dynamic targets such as pedestrians, vehicles and obstacles in front of the vehicle are detected in real time, and the distance from the vehicle is calculated to assist the driver in avoiding collision risks.
Lane keeping assist
Real-time monitoring of the lane line position of the vehicle is carried out. When the vehicle deviates from the main lane, it automatically alerts the driver or takes steering intervention to avoid the risk of loss of control due to distraction.
Adaptive cruise control
Combined with sensors such as radar, the vehicle speed is automatically adjusted to maintain a safe distance from the vehicle in front and relieve fatigue from long-distance driving.
Traffic sign recognition
Automatically recognize road signs such as speed limits and no parking to avoid fines for violations caused by not paying attention to the signs.
Pedestrian detection and early warning
Monitor the movements of pedestrians ahead in real time in complex road conditions and remind drivers to give way through sound or vision.
Environmental perception fusion
Working in coordination with millimeter-wave radars, ultrasonic sensors and other devices, a 360° environmental perception system is built to enhance the safety and reliability of autonomous driving.
The malfunction of the car's front-view camera module may be caused by hardware or software issues, and it needs to be judged based on specific symptoms:
Common causes and solutions
The camera is dirty
Dirt on the surface of the camera can trigger false alarm faults in the system. It is necessary to wipe the surface of the lens and the surrounding area with a lint-free cloth. If an error still occurs after wiping, it might be an internal problem with the camera.
Software system anomaly
Some vehicle models may falsely report faults due to system software defects, such as:
Restart the vehicle system (restart after turning off the engine or hold down the central control power button for 15 seconds before restarting)
Waiting for the manufacturer 's OTA upgrade and repair (applicable to 2023 Nautilus and other models)
Hardware connection issue
Check whether the camera wiring harness is loose, oxidized or has poor contact. If necessary, reinsert or replace the interface. If the camera is damaged (such as fogging of the lens or intermittent images), the parts need to be replaced.
Environmental interference
When installing devices such as dash cams, avoid connecting the wrong power supply to prevent abnormal power supply to the camera. If the power cord is connected incorrectly, the wiring needs to be standardized again.
If the above operations are ineffective, it is recommended to contact the 4S store to have the fault code (such as C1001782A) detected by professional equipment and upgrade to the latest system version.
The common causes of damage to the front view camera module of a car include poor contact of the circuit, aging or damage of the camera, system failure, etc. The specific manifestations and solutions are as follows:
Fault manifestation
Youdaoplaceholder0 Black screen or flickering : Damage to the camera module may cause the display to go completely black or show abnormal images such as snowflakes or stripes.
Youdaoplaceholder0 Function limitations : Auxiliary functions such as rearview camera and automatic parking may not be available.
Youdaoplaceholder0 system error : Prompts such as "camera limited" or "video stream failure" may appear.
Common causes
Youdaoplaceholder0 Circuit issues : flat cable breakage, poor contact or blown fuse.
Youdaoplaceholder0 Hardware failure : camera aging, lens fogging or damage to internal components.
Youdaoplaceholder0 System issue : Failure of the central control host system or software conflict.
Solution
Youdaoplaceholder0 Check the wiring : Prioritize inspecting the flat cable connecting the camera and the central control system, and repair any broken or poorly connected lines.
Youdaoplaceholder0 Clean the camera : Wipe off the dirt on the surface of the lens to prevent dust or gum from affecting the image.
Youdaoplaceholder0 Replace parts : If the camera is damaged and needs to be replaced with original or compatible parts, it is recommended to handle it through a 4S store or a professional modification shop.
Youdaoplaceholder0 System upgrade/restart : Try upgrading the in-vehicle system or restarting the central control screen recovery function.
If self-inspection fails, it is recommended to contact a professional maintenance institution for inspection to avoid misjudgment and secondary damage.
