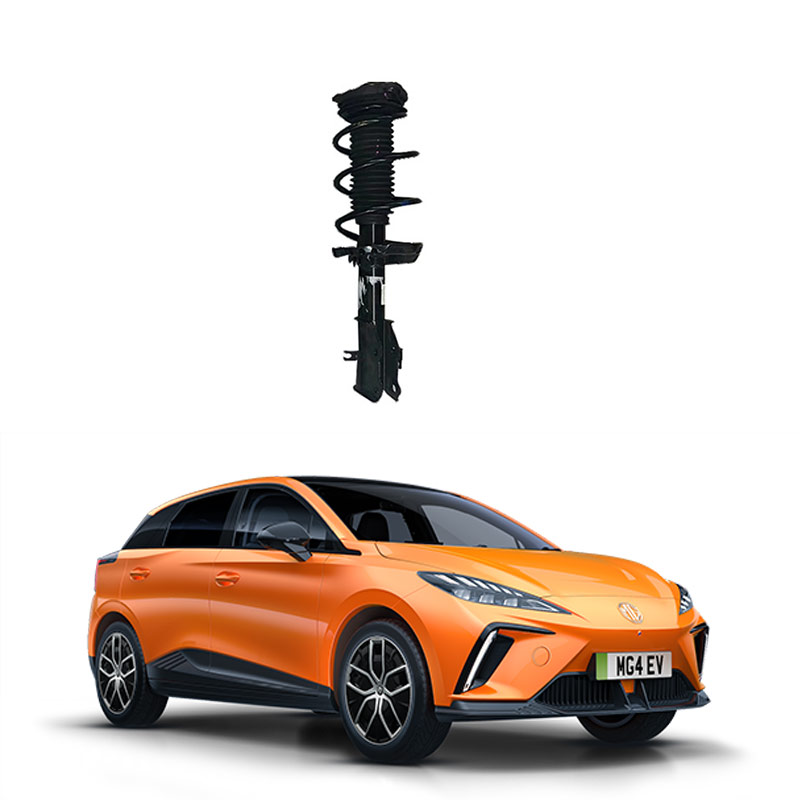

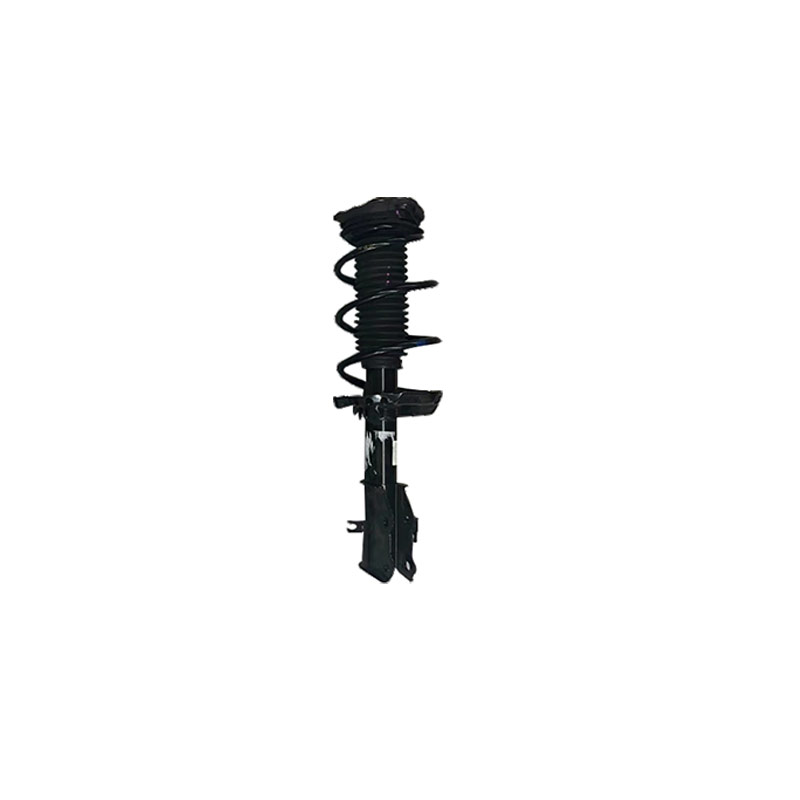

What is the front shock absorber assembly of a car
The front shock absorber assembly of a car is an important component of the vehicle's suspension system. It is mainly used to absorb and mitigate the vibrations transmitted from the road surface to the vehicle body during driving, thereby enhancing driving stability and comfort.
Structural composition
It is mainly composed of shock absorbers, springs, rubber pads, dust covers, spring seats, bearings, top rubber and other components. Some models may also include buffer blocks. These components work together, converting vibrations into heat energy through the movement of shock absorber pistons, providing elastic support with springs, and reducing friction between components with rubber pads.
Functional features
Youdaoplaceholder0 Shock absorption : Attenuate road impact through hydraulic or gas damping to keep the vehicle body stable;
Youdaoplaceholder0 cooperative support : It shares the weight of the vehicle body with the springs, enhancing handling stability;
Youdaoplaceholder0 Easy maintenance : Compared with replacing components separately, replacing the assembly is simpler and less costly.
If the front shock absorber assembly is damaged, it may cause problems such as jolts and abnormal noises during vehicle operation, and timely maintenance is required.
The function of the front shock absorber assembly of a car is to enhance driving smoothness and stability by suppressing the rebound oscillation after the spring absorbs shock and eliminating the impact on the road surface.
Specific working principle
The shock absorber assembly uses fluid to convert the elastic energy of the spring into heat energy, optimizing the convergence of vehicle movement and thereby rapidly attenuating vehicle body vibration. During the compression stroke (when the axle is close to the frame), the damping force of the shock absorber is relatively small to fully exert the buffering effect of the elastic element. During the extension stroke (when the axle and the frame are far apart), the damping force increases to quickly suppress the rebound.
Structural and installation requirements
The front shock absorber is usually fixed to the front shock absorber seat by three fasteners. It is necessary to ensure that the installation structure has sufficient rigidity and strength to transfer the load. If the structural rigidity is insufficient, it may cause cracking of vehicle body components (such as water channels, elephant trunk beams, etc.), posing a safety hazard.
The main symptoms of faults in the front shock absorber assembly of a car are as follows:
Typical symptoms
Youdaoplaceholder0 Abnormal noise : When passing over speed bumps or potholes, there is a dull "thump thump" sound or a "creaking" friction sound. In severe cases, it is accompanied by the sound of metal colliding.
Youdaoplaceholder0 Oil leakage : Oil stains or oil seepage appear on the outside of the shock absorber, forming "snot" -like marks.
Youdaoplaceholder0 Abnormal body vibration : Press the four corners of the body and then release. The vehicle should shake continuously for more than three times before stabilizing (normally, it should rebound 1-2 times).
Youdaoplaceholder0 Uneven tire wear : The front wheels show jagged or wavy wear, and the contact area is uneven.
Youdaoplaceholder0 Extended braking distance : When braking suddenly, the subsidence of the front of the vehicle increases, and the braking distance on dry roads increases by 15% to 20%.
Youdaoplaceholder0 Unstable handling : The roll intensifies when taking high-speed turns, and the roll Angle increases by more than 40% during emergency lane changes.
Electronic system misjudgment: Systems such as ESP and ABS may trigger misoperation due to abnormal vehicle body posture.
Maintenance suggestions
Youdaoplaceholder0 Mild oil leakage or abnormal noise : Replace the oil seal (shock absorber disassembly is required, which incurs higher labor costs) or directly replace the assembly (original factory or brands such as KYB and Mono are recommended).
Youdaoplaceholder0 Severe damage : The shock absorber assembly needs to be replaced as a whole to avoid affecting driving safety.
After the front shock absorber assembly of a car is damaged, the vehicle will show the following typical symptoms:
The driving comfort has declined.
When passing over speed bumps or bumpy roads, the front wheels will make a dull "thump thump" sound or a "creaking" friction sound, and the vehicle body will shake continuously for more than 2 to 3 times before coming to a stop.
Abnormal vehicle body posture
During driving, the vehicle body will experience significant jolts. When braking, the front of the vehicle will sink to a greater extent (brake nodding phenomenon), and the sense of roll will intensify when making high-speed turns.
Accelerated tire wear
The front wheels suffer from abnormal wear due to the imbalance of the suspension system, and wavy or serrated wear marks are commonly seen.
