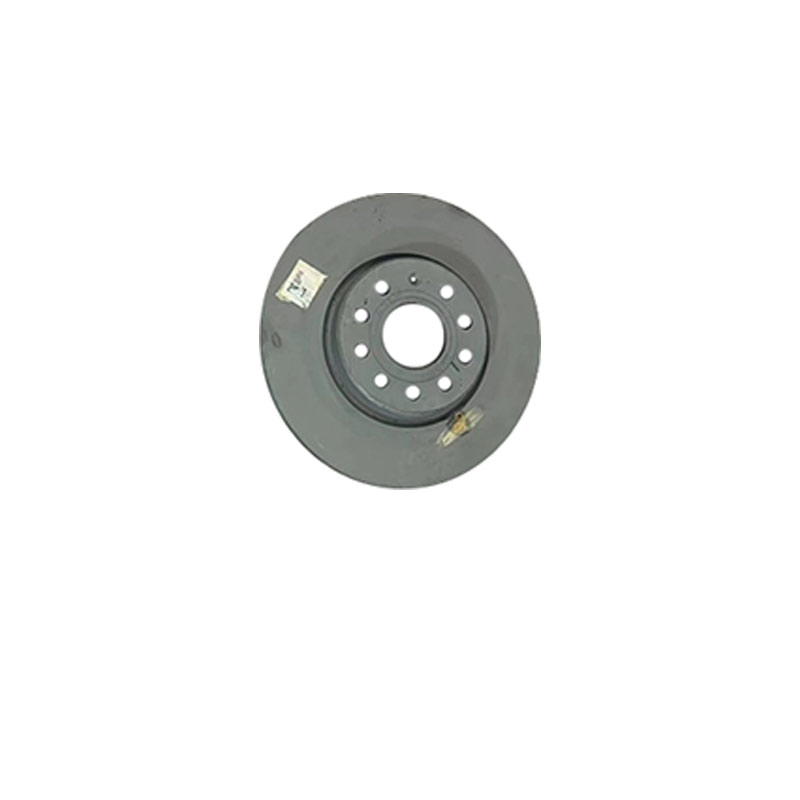

What is the front brake disc of a car
The front brake disc of a car is a core component of the braking system. It is cast from cast iron and consists of components such as discs and hubs. It generates friction through the clamping of brake calipers to achieve deceleration or stopping.
Structure and Function
The brake disc is a circular metal disc that rotates synchronously with the wheel. When braking, the calipers compress the brake pads to generate friction, causing the wheels to slow down. The front brake disc, as a key component for braking the front wheels of a vehicle, directly affects the vehicle's steering stability and handling.
Materials and Properties
Modern brake discs are mostly made of cast iron, which has high thermal conductivity and wear resistance. The ventilation disc enhances heat dissipation efficiency and reduces high-temperature heat attenuation through a honeycomb structure. High-performance ceramic brake discs (such as silicon carbide composite materials) can withstand higher temperatures and are suitable for high-performance vehicles like supercars.
The front brake disc of a car is a core component of the braking system, which decelerates or stops the vehicle through friction. The following are the specific functions and key features:
Braking function
The brake discs and brake calipers work in coordination, converting the vehicle's kinetic energy into thermal energy through friction, enabling the vehicle to decelerate or stop rapidly in emergency situations.
Performance indicators
Youdaoplaceholder0 Braking distance : Under the same vehicle speed and road conditions, the shorter the braking distance, the better the effect (for example, the vehicle can stop smoothly during emergency braking).
Youdaoplaceholder0 thermal attenuation performance : It can maintain stable braking effect even in high-temperature environments, avoiding performance degradation during continuous braking.
Youdaoplaceholder0 smoothness : No shaking or abnormal noise during braking, ensuring driving safety.
Youdaoplaceholder0 Wear resistance : Long service life, reduced replacement frequency (usually the original factory brake disc thickness is about 1.5 millimeters, and it needs to be replaced when worn to 2 millimeters).
Maintenance suggestions
Regularly check the thickness (replace if the wear exceeds 2 millimeters)
Avoid prolonged braking or frequent sudden braking to reduce wear and tear
Damaged front brake discs of a car need to be repaired or replaced depending on the specific situation. The following are common solutions:
Minor rust treatment
If the brake disc rusts due to moisture and makes abnormal noises, you can try continuously gently pressing the brake to remove the rust. If the rust is severe (such as when the vehicle is parked by the seaside for more than 14 days), it needs to be polished and ground by professionals using a brake disc repair machine, with the cost ranging from tens to hundreds of yuan.
Abnormal wear repair
If minor scratches are caused by driving habits or road conditions, they can be sanded smooth with sandpaper. If the depth of the groove exceeds 2 millimeters, new brake discs need to be replaced.
Thickness inspection standard
When the thickness of the brake disc is less than 1.6 millimeters (approximately the thickness of two stacked coins), it must be replaced; otherwise, it may deform due to high temperature, leading to brake failure. Regular maintenance requires regular checks to ensure that the thickness is no less than 3 millimeters.
Maintenance Precautions
Some repair shops may induce the replacement of the entire braking system. It is recommended to check the thickness of the brake pads by yourself (if less than 3 millimeters, they need to be replaced) to avoid being overcharged. The service life of original factory brake discs can reach over 100,000 kilometers, while that of third-party products may only last for a few tens of thousands of kilometers.
Youdaoplaceholder0 visual inspection :
Turn the steering wheel fully and observe the thickness between the brake pads and the brake discs through the gap between the wheel hubs. The thickness of the new film is approximately 10 to 15 millimeters. If the thickness of the remaining friction material is ≤3 millimeters (about the thickness of two coins stacked), it needs to be replaced immediately . If your view is blocked, you can use the flashlight of your mobile phone to assist in observing the reflection of the metal back plate .
Youdaoplaceholder0 simple tool measurement :
Youdaoplaceholder0 vernier caliper method : Insert the depth gauge into the gap between the brake pad and the brake disc, and press it against the black friction plate (not a caliper). Measure the total thickness minus 5 millimeters of the base thickness. If the friction material is less than 4 millimeters, it needs to be replaced .
Youdaoplaceholder0 straw replacement method : Mark the insertion depth of the straw, measure it, and then subtract 5 millimeters from the base thickness. The error is about 1 millimeter, but it can be used as an emergency judgment .
Abnormal signal recognition method
Youdaoplaceholder0 metal friction noise :
A sharp metallic sound when braking indicates that the wear limit warning plate has come into contact with the brake disc (some models do not have this design) .
Youdaoplaceholder0 brake feel change :
If the pedal travel becomes longer, the demand for pedaling force increases, or the braking distance significantly rises, it indicates that the friction material is too thin .
Youdaoplaceholder0 instrument alarm prompt :
The dashboard of some models will light up a brake pad wear warning light or a handbrake/brake fluid warning light (indicating a drop in fluid) .
Key points to note
Youdaoplaceholder0 must examine the inner and outer films :
The outer sheet may be thicker, while the inner sheet has been worn to the limit (especially when the guide pin is stuck). It is necessary to confirm respectively.
Youdaoplaceholder0 cold vehicle status check :
When the vehicle is just parked, the brake disc expands due to heat, which affects the measurement. Wait for 30 minutes after cooling before operating .
Youdaoplaceholder0 regular cross-validation :
Check every 5,000 kilometers or before a long journey. Increase the frequency of inspection after the rainy season/mountain road driving .
️ situations requiring professional maintenance
Youdaoplaceholder0 drum brake system : complex structure. It is not recommended to disassemble it by yourself .
Youdaoplaceholder0 Uneven wear or oil contamination : Oil leakage from the sub-pump leads to a decrease in braking force. The contaminated brake pads need to be replaced and the sub-pump repaired.
Youdaoplaceholder0 electronic handbrake type : Special equipment is required for resetting the rear wheels. Improper operation may damage the motor .
Key tip: Do not rely solely on the alarm panel! Some models do not have this design, or the alarm fails due to uneven wear of the inner and outer plates. Regular visual inspection combined with tool measurement is the most reliable .
