The working principle of the front bottom deflector plate of a car
The working principle of the front bottom deflector plate of a car is to guide the direction of the airflow, reduce the air resistance during vehicle operation and balance the air pressure distribution of the vehicle body, thereby enhancing driving stability.
Specific principle
The deflector is usually installed below the front bumper of the vehicle. Through an inclined design, it guides the airflow from the front to the heat dissipation device near the wheels, optimizing the air flow path. Its core functions include:
Youdaoplaceholder0 Reduce air resistance : Reasonable guidance of airflow can lower the airflow resistance in the front area of the vehicle and improve fuel economy.
Youdaoplaceholder0 Balance the air pressure distribution : By adjusting the direction of the airflow, it can prevent the vehicle from "lifting up" due to low air pressure at the bottom of the front of the vehicle, thereby enhancing driving stability.
Youdaoplaceholder0 Enhance heat dissipation efficiency : Direct the airflow to the heat dissipation components to improve the cooling efficiency of the engine and wheels and prevent overheating.
The shape and installation position of the deflector plates may vary among different vehicle models, but their core functions are all centered around aerodynamic optimization.

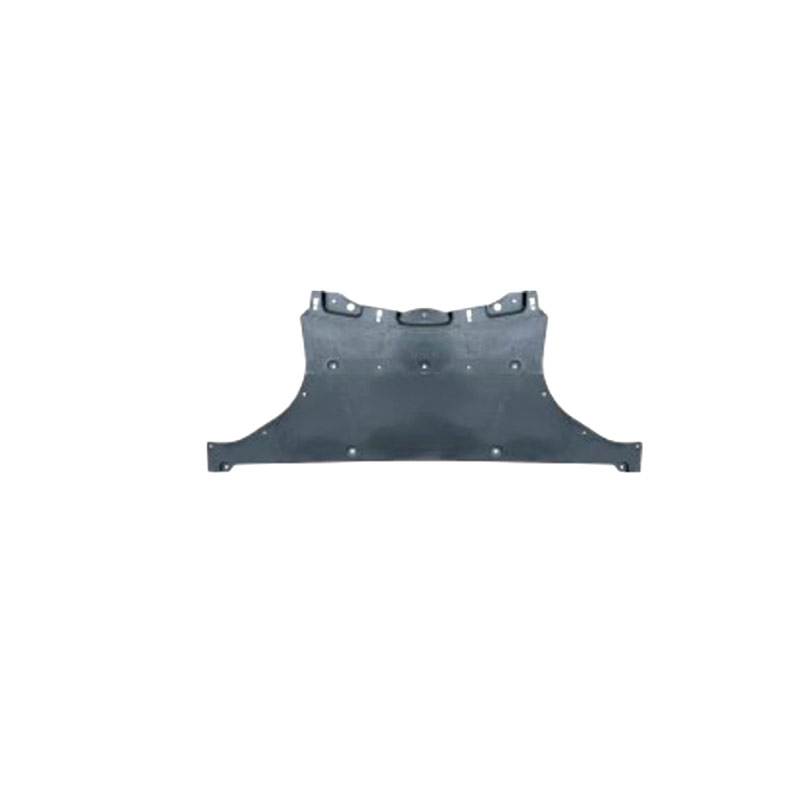

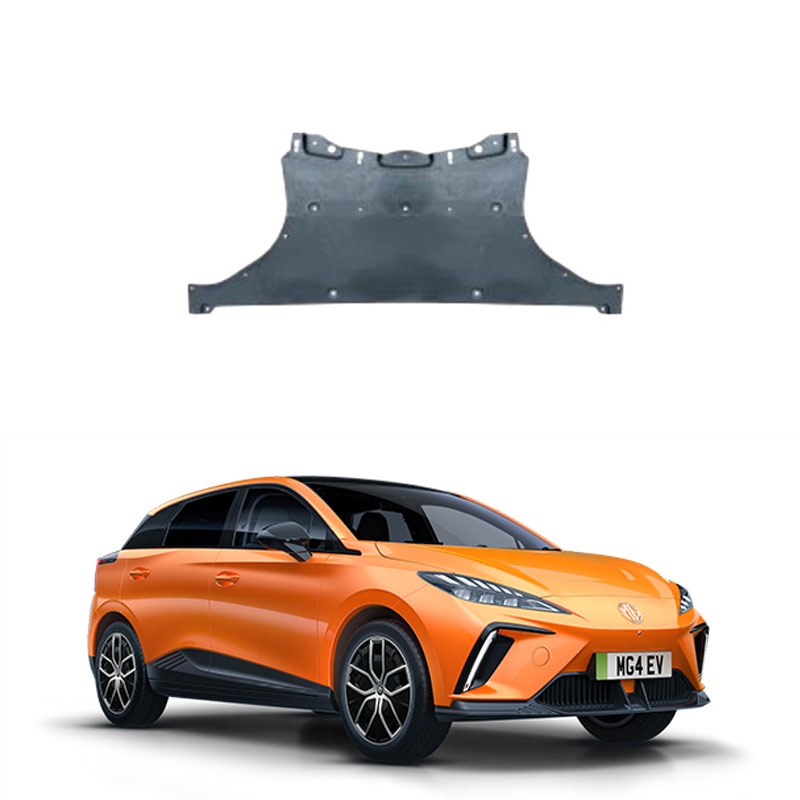

The front bottom spoiler of a car is a black plastic component installed below the bumper and connected to the front skirt. Its main function is to guide the airflow, reduce air resistance and optimize the vehicle's driving stability.
Structure and fixation method
The spoiler is usually fixed to the bottom of the bumper with screws or clips, and in some models, it is integrated with the front skirt of the vehicle body. If the deflector is damaged or lost, the car owner can replace it separately without having to replace the entire bumper.
Main functions
Youdaoplaceholder0 Reduce air resistance : By guiding the direction of air flow, the air resistance during vehicle operation is reduced, thereby improving fuel economy.
Youdaoplaceholder0 Optimize heat dissipation : Direct the airflow to the heat dissipation equipment to enhance the heat dissipation efficiency of the engine and the cooling system.
Youdaoplaceholder0 Protective function : In some models, the deflector plate works in conjunction with the engine guard plate to protect the chassis components from damage by foreign objects such as stones and sand.
The front bottom deflector of a car mainly serves to guide the airflow, reduce lift, enhance vehicle stability and improve aerodynamic performance. Specifically, it is manifested as
Guide the airflow and reduce lift
The deflector plate, through its inclined design, effectively directs the airflow from the front of the vehicle to the heat dissipation equipment near the wheels, reducing the underbody air pressure of the vehicle. This, in turn, reduces the lift generated by the vehicle during high-speed driving, prevents the rear wheels from floating, and enhances driving stability.
Optimize aerodynamic performance
By rationally designing the air intake and air flow channels, the deflector can reduce the airflow resistance at the front of the vehicle, decrease the overall air resistance coefficient, and improve fuel economy. For instance, the deflector design of the 9th generation Accord has significantly improved its aerodynamic performance.
Maintain vehicle safety and heat dissipation
The deflector plate is also responsible for guiding the airflow to scour the license plate area and the rear windshield, preventing sludge accumulation. At the same time, by enhancing the heat dissipation efficiency, the engine can be prevented from being damaged due to overheating.
The repair method for the malfunction of the front bottom deflector plate of the car should be determined based on the degree of damage:
Maintenance suggestions
If the deflector plate is only slightly damaged (such as scratched), it can be taken to an auto repair shop for painting and repair, and the cost is about 200 to 300 yuan. If the deflector plate needs to be replaced, it is recommended to cover the cost through insurance to reduce the maintenance cost. When replacing, the front engine hood needs to be removed and the mudguard positioned. When installing the new deflector, ensure that its position and fixation method are correct.
"Safety hazard"
The detachment of the deflector plate may lead to increased wind resistance and reduced grip during driving, affecting vehicle stability. Especially at high speeds, it may cause safety hazards. If the deflector plate and the front windshield crack, causing water leakage, the cracks should be repaired in time to prevent further damage.
