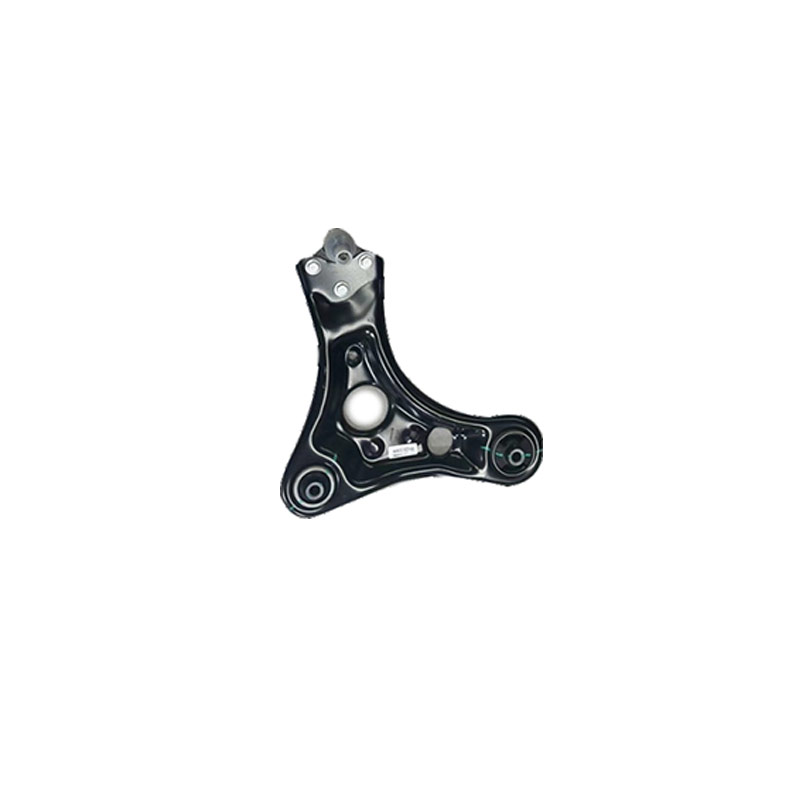

What is the front lower control arm of a car
The front lower control arm of a car is an important component of the suspension system, located on the inner side of the front wheels. It mainly undertakes the following functions:
Support the vehicle body and shock absorption
The front lower control arm connects the vehicle body with the wheels to provide support and, in conjunction with shock absorbers, buffers vibrations during driving, ensuring a smooth ride for the vehicle.
Positioning and Orientation
It precisely controls the relative position between the wheels and the vehicle body, maintains the stability of the wheel trajectory, and ensures accurate steering. If damaged, it may lead to problems such as failure of four-wheel alignment and steering wheel deviation.
Bear the weight of the vehicle body
As the main load-bearing component of the independent suspension, the front lower control arm needs to transfer the weight of the vehicle body to the wheels and, together with the shock absorber, maintain the balance of the vehicle.
Abnormal manifestations
When damaged, abnormal noises may occur, the control arm may break or deform, leading to unstable vehicle driving, reduced steering wheel sensitivity, and even causing friction between the wheels and the chassis.
Youdaoplaceholder0 The front lower control arm of a car is a core component of the front suspension system, mainly undertaking three functions: supporting the vehicle body, buffering vibrations, and maintaining wheel alignment.
Youdaoplaceholder0 Core Function Analysis
Youdaoplaceholder0 Body support and load transmission .
As the connection hub between the front axle and the wheels, it undertakes the task of transmitting the vehicle's weight and dynamic load.
The longitudinal and lateral forces are rationally distributed to the suspension system through a triangular structure design to ensure the vehicle's stability under various road conditions.
Youdaoplaceholder0 vibration buffering and shock absorption work together .
It forms a three-in-one shock absorption system in combination with shock absorbers and springs, absorbing over 80% of the high-frequency vibrations on the road surface.
The rubber bushing design can effectively absorb impact energy and prevent direct collision of metal parts.
Youdaoplaceholder0 Positioning control and steering assurance .
The key components that maintain the camber Angle and toe-in Angle of the wheels directly affect the accuracy of four-wheel alignment.
When turning, restrict the wheel movement trajectory to ensure the response sensitivity of the steering system.
Youdaoplaceholder0 Structural features and working mechanism
It is made of high-strength forged steel or aluminum alloy, with a typical thickness of 8-12mm.
The steering knuckle is connected through a ball joint, and the bushing end is fixed to the subframe, forming a three-point force-bearing structure.
The unique longitudinal lever arm design in the front suspension system can effectively suppress the brake nodding phenomenon.
Youdaoplaceholder0 Maintenance precautions
Youdaoplaceholder0 damage warning signal .
Low-speed abnormal noise (aging of the rubber sleeve).
The play of the steering wheel has increased (the bushing is loose).
Tire uneven wear (inaccurate positioning).
Youdaoplaceholder0 Maintenance points .
Check the wear of the bushing every 30,000 kilometers.
After replacement, four-wheel alignment calibration must be carried out.
Give priority to choosing replacement parts of the original factory specifications.
If the front lower control arm of a car is damaged, it should be replaced in time to avoid affecting driving safety. The following are the specific handling methods and precautions:
Damage manifestation
Damage to the lower control arm can cause problems such as steering wheel shaking, deviation, abnormal noises from the chassis, and increased jolting. In severe cases, it may lead to the risk of loss of control.
Youdaoplaceholder0 Check the relevant components : if the rubber sleeve of the swing arm is aged or damaged, it needs to be replaced simultaneously to ensure stability (for some models, the entire assembly needs to be replaced)
Youdaoplaceholder0 four-wheel alignment : After replacement, four-wheel alignment correction is required to prevent abnormal tire wear
Handle risks by oneself
The lower control arm is a core component of the vehicle suspension system. If it is replaced by oneself, it may lead to installation deviation or mismatch of accessories, which may instead aggravate safety hazards.
