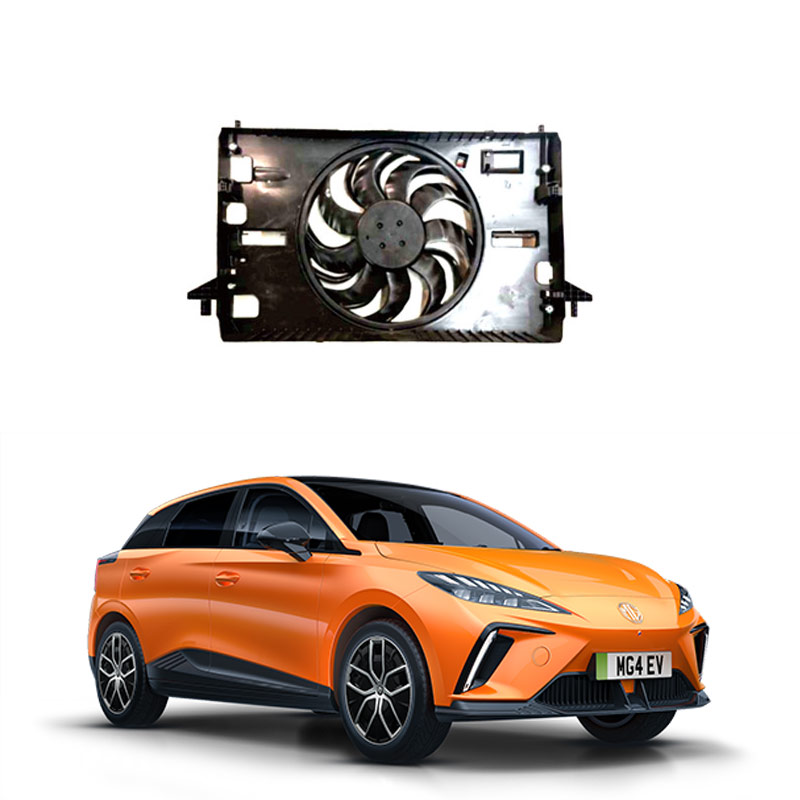

What is an automotive electronic fan
The automotive electronic fan is a core component of the vehicle cooling system , providing active heat dissipation for the engine, transmission and air conditioning condenser by forcing air flow.
Youdaoplaceholder0 Core functions and components
Automotive electronic fans are active cooling devices of the automotive thermal management system, mainly composed of motors, fan blades, control units and temperature control sensors. Its core functions include:
Youdaoplaceholder0 Engine cooling : to prevent engine overheating from causing power loss or mechanical damage.
Youdaoplaceholder0 transmission cooling : Maintain the normal working temperature of the transmission fluid.
Youdaoplaceholder0 air conditioning condenser auxiliary heat dissipation : Enhances heat exchange efficiency during the operation of the air conditioning system.
Youdaoplaceholder0 Working principle and control logic
The operation of the electronic fan follows an intelligent temperature control strategy:
Youdaoplaceholder0 two-stage temperature control mechanism :
Start the first low-speed operation at 90°C.
Switch to secondary high-speed operation at 95°C.
Youdaoplaceholder0 air conditioning interlocking control : When the air conditioner is turned on, the fan is forcibly started, and the speed is adjusted by detecting the temperature of the condenser and the pressure of the refrigerant.
Youdaoplaceholder0 Energy consumption optimization : High and low speed switching is achieved by means of series resistance, and it only needs to operate when heat dissipation is required to reduce energy loss.
Youdaoplaceholder0 technology type evolution
Mainstream heat dissipation solutions are showing differentiated development
Youdaoplaceholder0 silicone oil clutch fan : It transmits power by taking advantage of the thermal expansion property of silicone oil and is mainly used in commercial vehicles.
Youdaoplaceholder0 electromagnetic clutch fan : Driven by the principle of electromagnetic field attraction, it is commonly found in passenger cars.
Youdaoplaceholder0 fully electronic control fan : an intelligent system integrated with ECU control, capable of achieving 0-100% stepless speed regulation.
The core function of an automotive electronic fan is to control the engine temperature and assist the air conditioning system in heat dissipation, optimizing vehicle performance and driving comfort through intelligent temperature control.
Youdaoplaceholder0 Core function
Youdaoplaceholder0 engine temperature control .
Lower the temperature of the engine coolant through the radiator to prevent mechanical failures caused by overheating.
It automatically starts when the water temperature exceeds the set threshold and stops running when it drops below the lower limit value, achieving intelligent temperature management.
Youdaoplaceholder0 air conditioning condenser heat dissipation support .
Assist in maintaining the working temperature of the air conditioning refrigerant to ensure the cooling efficiency of the air conditioning system.
Youdaoplaceholder0 Technical advantages
Youdaoplaceholder0 Energy conservation and power optimization .
Compared with traditional mechanical fans, it reduces engine power consumption by 5% to 8%, improving fuel economy.
Start and stop as needed to avoid excessive cooling and keep the engine within the optimal operating temperature range.
Youdaoplaceholder0 intelligent control feature .
Supports stepless speed regulation and achieves precise temperature control through ECU or built-in programs.
When starting in cold winter, the operation can be paused to reduce the warm-up time.
Comprehensive performance improvement of .
Miniaturized design reduces operating noise and improves NVH performance.
The structure is more compact, simplifying the later maintenance process.
The main manifestations of faults in automotive electronic fans are abnormal increase in engine temperature, water leakage from the radiator, and coolant splashing, etc. The specific causes need to be investigated in combination with the manifestations of the faults.
Common causes of faults
Youdaoplaceholder0 water temperature not meeting the standard : Electronic fans usually do not start when the water temperature has not reached the set threshold. This can be confirmed by observing the water temperature gauge.
Youdaoplaceholder0 Relay/temperature control switch failure : If the water temperature is normal but the fan does not rotate, it may be that the relay is damaged or the temperature control switch has failed. Inspection and replacement are required.
Youdaoplaceholder0 motor damage : manifested as coil charring, poor shaft operation or abnormal temperature rise. The fan motor needs to be replaced.
Youdaoplaceholder0 circuit issues : including blown fuses, open circuits/short circuits, etc. The relevant circuits need to be inspected and repaired.
Emergency handling suggestions
If the water temperature is found to be too high while driving and the electronic fan does not rotate, you can temporarily short-circuit the thermal switch with a wire (connect the pins on both sides of the plug) to force the high-speed gear to cool down. Subsequently, professional maintenance is required.
