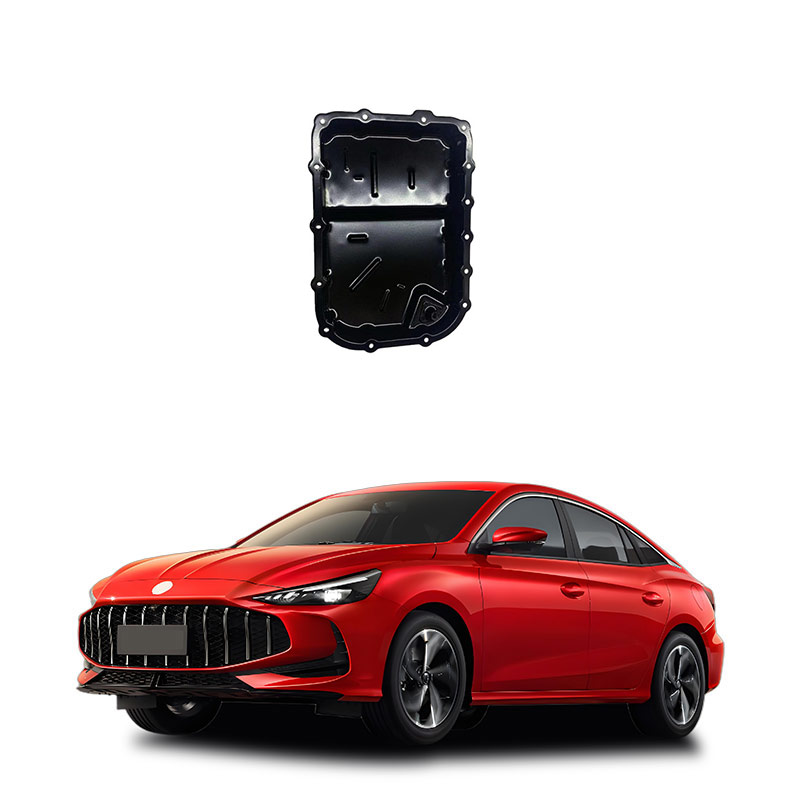

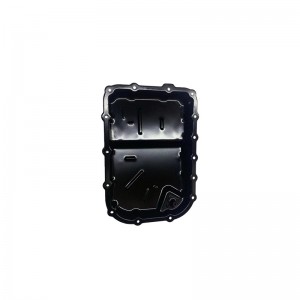

What is the oil pan of a car transmission
Youdaoplaceholder0 The oil pan of a car is an essential component of the transmission. Its main functions include storing and sealing the engine oil, assisting in cooling, and sealing the crankcase to prevent impurities from entering.
Structure and Function
The oil pan of the transmission is located at the bottom of the transmission and its main task is to store engine oil. It is like a solid "container" to ensure that there is enough oil supply for the components of the gearbox to work in a good lubricated environment .
In addition, the oil pan also has excellent sealing performance to prevent oil leakage and maintain the stability of the lubrication system .
In terms of heat dissipation, the oil pan helps to dissipate the heat generated by the operation of the transmission effectively lowers the oil temperature, ensuring that the transmission operates efficiently within the appropriate temperature range .
Cleaning and maintenance
When changing the transmission fluid, it is usually necessary to remove the oil pan. After disassembly, the oil pan needs to be cleaned because impurities such as sludge and metal powder will deposit at the bottom of the oil pan. The cleaned oil pan needs to be equipped with a new oil pan gasket and the oil pan should be reinstalled. If the screw on the oil pan is not tightened properly or is installed slightly off, it may cause oil leakage in the vehicle transmission .
The core functions of the transmission oil pan include storing and sealing transmission fluid, cooling fluid, integrated filtration function and protecting the components inside the transmission . As a key component of the transmission, it ensures the normal circulation of the lubrication system by storing oil, maintains system stability through sealing and heat dissipation, and extends the service life of the transmission with the help of a filtration design.
Youdaoplaceholder0 The four core functions of the transmission oil pan
Youdaoplaceholder0 Store and seal transmission fluid
The oil pan serves as the oil storage container for the transmission, ensuring that the oil maintains an adequate and stable volume during circulation in the lubrication system. At the same time, it prevents oil leakage through high-strength sealing gaskets. This characteristic is directly related to the lubrication efficiency and operational reliability of the gearbox.
Youdaoplaceholder0 Cooling oil and heat dissipation
During the circulation process, the transmission fluid absorbs frictional heat. The oil pan achieves heat exchange through the metal surface in contact with the air, thereby reducing the oil temperature. Some high-performance models will also adopt a design with heat dissipation fins to further enhance the heat dissipation effect and prevent the aging of the sealing gasket caused by overheating.
Youdaoplaceholder0 Integrated filtering function
Modern transmission oil pans often have built-in filter elements to filter out impurities such as metal debris and gum deposits in the oil. This design can reduce mechanical wear inside the transmission. For instance, in models of brands like BMW, when changing the transmission fluid, the oil pan of the integrated filter element must be replaced simultaneously.
Youdaoplaceholder0 Protection and system maintenance
Prevent external contaminants from entering and protect precision components such as gear sets and valve bodies
Collect the reflux oil and use gravity to precipitate impurities
By regularly replacing the oil pan (it is recommended to do so every 60,000 to 80,000 kilometers), the sediment can be thoroughly removed and the sealing performance updated.
Youdaoplaceholder0 Function extension for special scenarios
In high-performance or heavy-duty vehicles, the oil pan may need to be equipped with an additional oil deflector design to prevent insufficient lubrication caused by the shaking of the oil during intense driving. Meanwhile, some all-aluminum oil pans can also enhance the vehicle's power response through lightweight design.
Youdaoplaceholder0 The main causes of gearbox oil pan failure include aging gasket, loose screws, aging oil seal and excessive internal pressure . Aging or damaged gasket will cause poor sealing performance, loose or not tightened screw will cause oil to seep out of the gap, aging oil seal will reduce its elasticity, excessive internal pressure will also cause oil to seep out of the oil pan .
Youdaoplaceholder0 Fault manifestations mainly include oil seepage and leakage. Oil seepage refers to the presence of oil stains at the edge of the oil pan, but the oil volume does not decrease significantly. Oil SPILL IS referring TO a large amount of oil in the pan flowing out, causing the oil volume to decrease rapidly .
Youdaoplaceholder0 Solutions include reapplying glue, replacing gaskets, tightening screws, replacing aged oil seals, etc. If the oil seepage is not severe, you can try reapplying the glue. If the oil leakage is severe or there is already oil leakage, the gasket, tightening screws or oil seal need to be replaced. In addition, regular inspection and maintenance are also important measures to prevent failure .
Youdaoplaceholder0 Preventive measures include regularly checking the seal of the oil pan, ensuring that the screws are tightened, replacing aged gaskets and oil seals in time, and avoiding excessive pressure inside the gearbox. In addition, regular maintenance at prescribed intervals and the use of standard oil and transmission fluid are also effective ways to prevent failure .
