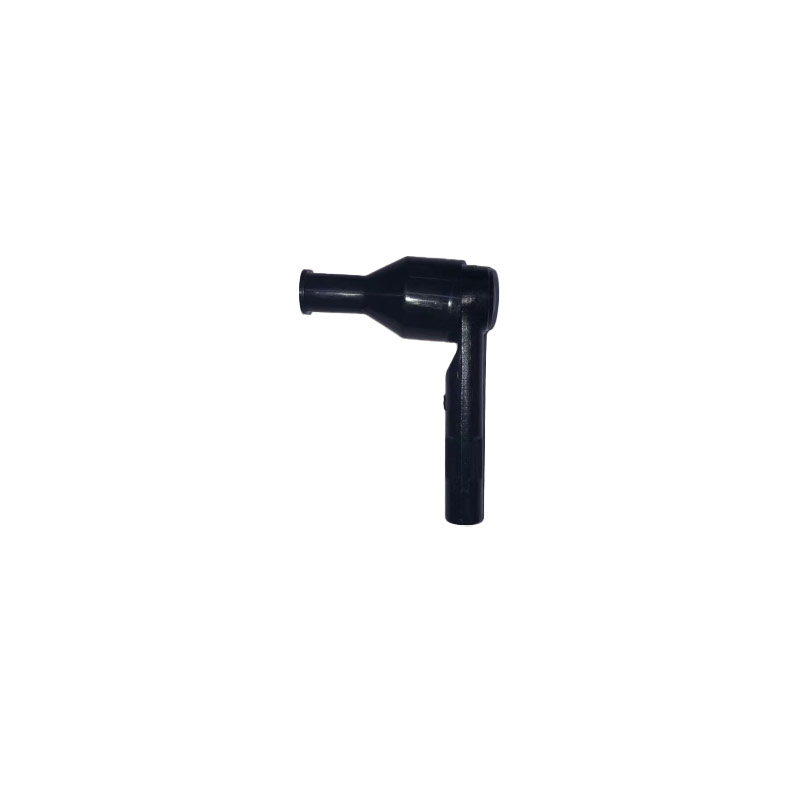

What is the ball joint outside the steering machine
The steering ball joint is an important component of a car 's steering system, mainly responsible for the steering function. It is attached to the steering knuckles, like the "shoulders" of the vehicle, and supports the entire steering system .
There are various types of steering gear ball heads, including suspension ball heads (lower arm ball heads) and steering gear pull-rod ball heads ().
The function of the ball joint outside the steering machine
The main function of the external ball joint of the steering gear is to transmit the steering force and torque, enabling the vehicle to steer according to the driver's intention. It connects to the rest of the steering system through a ball joint to ensure that the vehicle can operate flexibly when turning .
Symptoms of damage to the ball joint outside the steering machine
When the ball joint outside the steering machine is damaged, the following symptoms will occur:
Youdaoplaceholder0 MAKES abnormal noise when turning : Makes a "tap-tap-tap" sound when turning.
Youdaoplaceholder0 Steering clearance becomes larger : The steering clearance becomes larger, the steering is unstable when driving.
Youdaoplaceholder0 Unstable driving : Especially at high speeds, the wheels may suddenly swing sideways and fall off, seriously affecting driving safety .
Youdaoplaceholder0 Core Function Analysis
Youdaoplaceholder0 Power transmission and connection
One end of the outer ball joint is connected to the steering tie rod, and the other end is fixed to the wheel steering knuckles through bolts, converting the rotational force of the steering wheel into the steering action of the wheels, ensuring that the steering wheel operation can precisely control the steering Angle of the wheels.
Youdaoplaceholder0 Multi-directional degree-of-freedom adaptation
The spherical hinge structure design enables the vehicle to adapt to the up and down jumping of the suspension system and the lateral swinging of the wheels when turning during driving, avoiding steering stalling or component damage caused by mechanical interference.
Youdaoplaceholder0 Structure and maintenance features
Lubrication requirements
Grease should be regularly injected between the ball joint seat and the housing of the outer ball joint to reduce wear and extend service life. Insufficient lubrication will accelerate component wear, cause abnormal noise or steering lag.
Youdaoplaceholder0 Safety hazard warning
Wear or looseness of the outer ball joint can cause the steering wheel to shake, the vehicle to veer off course, and even the steering to fail. In extreme cases, the wheel may lose control due to the detachment of the ball joint, and the faulty parts need to be replaced in time.
Steering outside ball joint failure is mainly characterized by unstable steering, brake deviation, abnormal driving noise, uneven tire wear and steering failure. Specifically:
Youdaoplaceholder0 Steering instability : When the external ball joint of the steering machine is damaged, the steering wheel becomes "floating" and out of control, resulting in a poor driving experience and increasing driving difficulty and tension .
Youdaoplaceholder0 Brake deviation : When braking, the vehicle will unconsciously shift to one side, affecting the braking effect and posing a safety hazard .
Youdaoplaceholder0 Abnormal driving noise : When driving on uneven roads, a "clucking" sound is produced. This is due to the amplification of gaps and looseness between components, which cause them to collide and rub against each other .
Youdaoplaceholder0 Uneven tire wear : Due to an abnormality in the steering system, the wheels are subjected to uneven force, resulting in varying degrees of wear in different parts of the tire, which shortens the tire's lifespan and increases the risk of a blowout .
Youdaoplaceholder0 Steering failure : In extreme cases, the vehicle does not respond when the steering wheel is turned, endangering driving safety .
Cause of failure
The main reasons for the damage of the ball joint outside the steering machine include:
Youdaoplaceholder0 Damaged dust cover : Poor material of the dust cover or bad road conditions cause the dust cover to break, shortening the service life of the ball head .
Youdaoplaceholder0 Lubrication and fit issues : The material of the ball seat, the quality of the grease, and the error size affect the lubrication effect and fit tightness between the ball pin and the ball seat, causing premature wear of the ball head .
Youdaoplaceholder0 Steering deviation and safety hazard : A loose ball joint of the crossbar may cause the vehicle to veer off course, the tires and steering wheel to shake, or even the ball joint to suddenly fall off, causing the wheel to suddenly swing sideways and fall off, posing a serious safety hazard .
Fault diagnosis and maintenance suggestions
Youdaoplaceholder0 Abnormal steering noise : Hearing a "click-click" abnormal noise when turning the steering wheel may indicate insufficient lubrication of the steering ball joint .
Youdaoplaceholder0 Deviation from the intended route : When a vehicle deviates from its intended route while in motion, apart from rotor dynamic balance issues, damage to the steering ball joint is also a major cause .
Youdaoplaceholder0 Steering wheel clearance increases : The ratio between the Angle at which the steering wheel is turned and the actual steering Angle of the vehicle increases .
Youdaoplaceholder0 Abnormal noise on bumpy roads : Making a cackling sound when driving on uneven roads .
Youdaoplaceholder0 Brake failure : A faulty ball joint of the steering gear may cause the vehicle to veer off course during braking, affecting braking performance .
Youdaoplaceholder0 Abnormal steering wheel operation : A problem with the steering ball joint may cause difficulty in turning the steering wheel or complete failure .
Youdaoplaceholder0 Wheel shaking at low speed : When driving at low speed, you can clearly feel wheel shaking .
Youdaoplaceholder0 Abnormal wheel inspection : Lift the car, lift the wheels off the ground, then drag the tires up and down for inspection. If the tire can move up and down easily, it indicates that the ball head is too large, in this case the ball head is prone to break when impact occurs .
