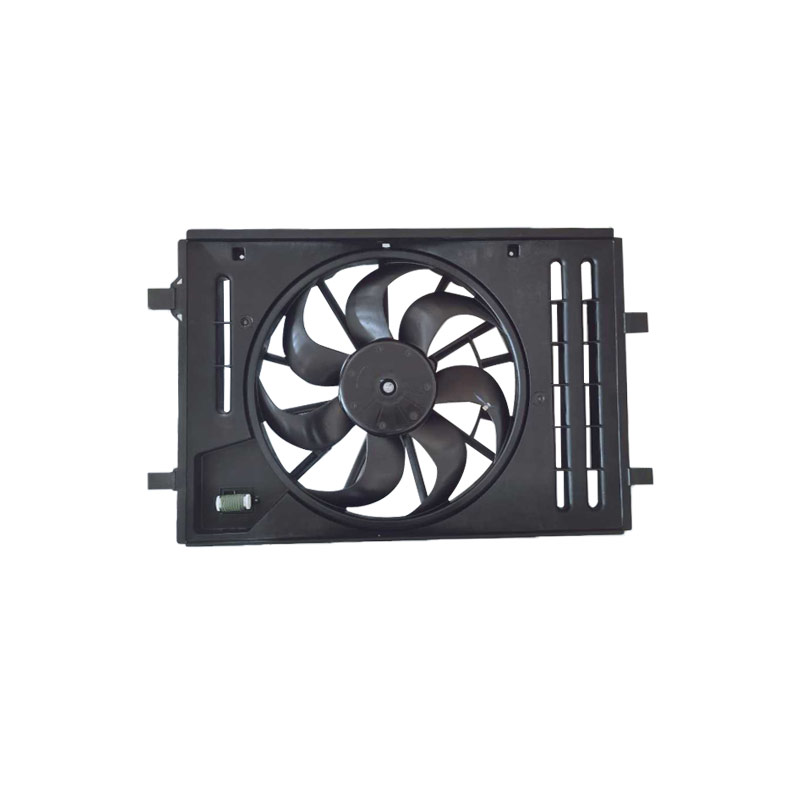

What is an automotive electronic fan
Youdaoplaceholder0 The electronic fan is an important component of the automotive cooling system Its main function is to dissipate heat from the engine block, transmission and air conditioning condenser. Electronic fans are usually installed near the water tank and their operation is controlled by a thermostat. When the water temperature reaches the upper limit value, the thermostat is connected to the power supply and the fan starts to operate. When the water temperature drops to the lower limit, the thermostat shuts off power and the fan stops working .
Working principle
The automotive electronic fan is mainly regulated by the temperature controller. When the water temperature reaches the upper limit value, the temperature controller connects the power supply and the fan starts to operate. When the water temperature drops to the lower limit value, the thermostat turns off the power and the fan stops working. In addition, the engine coolant temperature switch and the on state of the air conditioner can also affect the operation of the electronic fan. The electronic fan usually has two levels of speed, one low at 90°C and two high at 95° C. When the air conditioner is turned on, the condenser temperature and the refrigerant pressure also control the electronic fan to operate .
Types and advantages and disadvantages
Automotive electronic fans mainly include types such as silicone oil clutch cooling fans and electromagnetic clutch cooling fans. The advantage of these fans lies in that they only drive the engine when it needs to cool down, thereby reducing the engine's energy loss and improving overall energy efficiency. Electronic fans have better precision control performance and energy efficiency, and are more suitable for passenger cars .
The main function of an automotive electronic fan is to ensure the reliable operation of electronic components in the vehicle and to guarantee the normal operation of the vehicle by regulating the temperature of the engine and air conditioning system.
Automotive electronic fans are an important component of the automotive cooling system. Their main functions include:
Youdaoplaceholder0 Heat dissipation : The electronic fan helps dissipate the heat generated by the engine and air conditioning system by drawing in air to prevent overheating. When the engine temperature rises above a certain threshold or the air conditioning system needs additional cooling, the electronic fan will automatically start and draw in air through the radiator or condenser to adjust the temperature of the engine coolant and the refrigerant in the air conditioning system .
Youdaoplaceholder0 Regulate temperature : The electronic fan keeps the engine and air conditioning system within the optimal operating temperature range by expelling hot air and promoting efficient heat exchange. It ensures that the engine and air conditioning functions run smoothly and reliably, and prevents the engine from overheating .
Youdaoplaceholder0 Improve fuel economy : In a low-temperature environment, reducing the fan speed can decrease energy loss and thereby reduce fuel consumption. Adjusting the fan speed properly helps the engine operate within the appropriate temperature range and extends lifespan .
Youdaoplaceholder0 Adapt to extreme conditions : In extreme conditions, appropriately increasing the fan speed can prevent the engine from overheating and ensure the normal operation of the vehicle .
Youdaoplaceholder0 The causes of faults in automotive electronic fans mainly include the following :
Youdaoplaceholder0 The water temperature did not meet the requirement : The fans of car radiators mostly work with electronic temperature control, and the fans will only turn normally when the water temperature reaches a certain level. If the temperature is too LOW, the radiator FAN won 't work .
Youdaoplaceholder0 Relay failure : If the water temperature is normal but the fan still doesn't work, there may be a problem with the relay. Relay failure causes the fan to fail to start .
Youdaoplaceholder0 Faulty temperature control switch : A faulty temperature control switch can also affect the normal operation of the fan. It is necessary to check and replace the damaged temperature control switch .
Youdaoplaceholder0 Abnormal coolant circulation : Poor coolant circulation or blockage inside the cooling system can cause the fan to keep running and fail to cool .
Youdaoplaceholder0 Pump failure : Aging of the pump seal or deformation of the impeller can cause a decrease in pump efficiency, which in turn affects the cooling effect and keeps the fan running .
Youdaoplaceholder0 Temperature control module failure : A malfunction of the temperature control switch will cause the fan trigger temperature to drop, resulting in premature fan startup .
Youdaoplaceholder0 Belt slippage : Wear or loosening of the drive belt can cause abnormal fan speed, affecting the cooling effect .
Youdaoplaceholder0 Abnormal wear of mechanical parts : Mechanical problems such as failure of the belt tensioner and jamming of the thermostat can also cause abnormal fan .
Youdaoplaceholder0 Manifestations of faulty automotive electronic fan include :
Youdaoplaceholder0 Visual inspection : The coil color at the air outlet of the fan motor may have scorched marks, and it smells of burnt plastic and wire .
Youdaoplaceholder0 Difficulty in running : When turning the fan shaft by hand, it feels not running smoothly and the temperature rises rapidly .
Youdaoplaceholder0 Abnormal noise : Stuck or abnormal noise inside the fan motor, abnormal noise in the engine compartment .
Youdaoplaceholder0 Water temperature rise : The engine radiator temperature rises, the engine overheats, the coolant has difficulty circulating, and even leaks .
Youdaoplaceholder0 inspection and repair methods include :
Youdaoplaceholder0 Visual inspection : Observe if there are any signs of burning on the coil at the fan motor vent .
Youdaoplaceholder0 Smell identification : Smell around the fan motor for a burnt smell, a smell of molten plastic, or a burnt smell of short-circuited wires .
Youdaoplaceholder0 Manual inspection : Rotate the fan shaft by hand to feel if it runs smoothly, touch the surface to check if the temperature is too high .
Youdaoplaceholder0 Visual inspection : Clean the ECU interface with an alcohol swab and check the oxidized part of the plug .
Youdaoplaceholder0 Replace damaged parts : Replace damaged relays, temperature control switches, fan motors, etc. .
