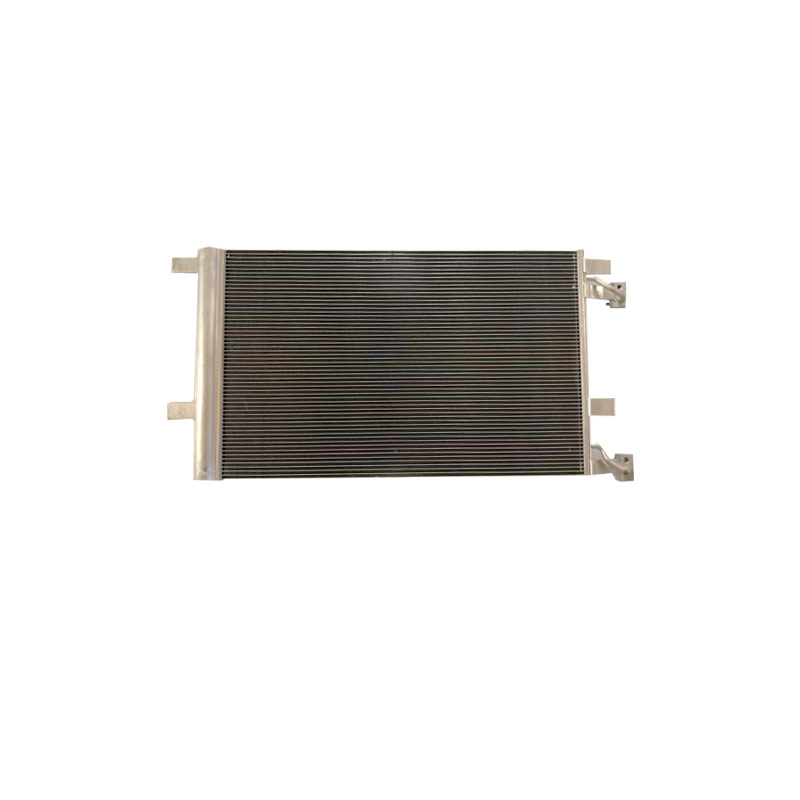

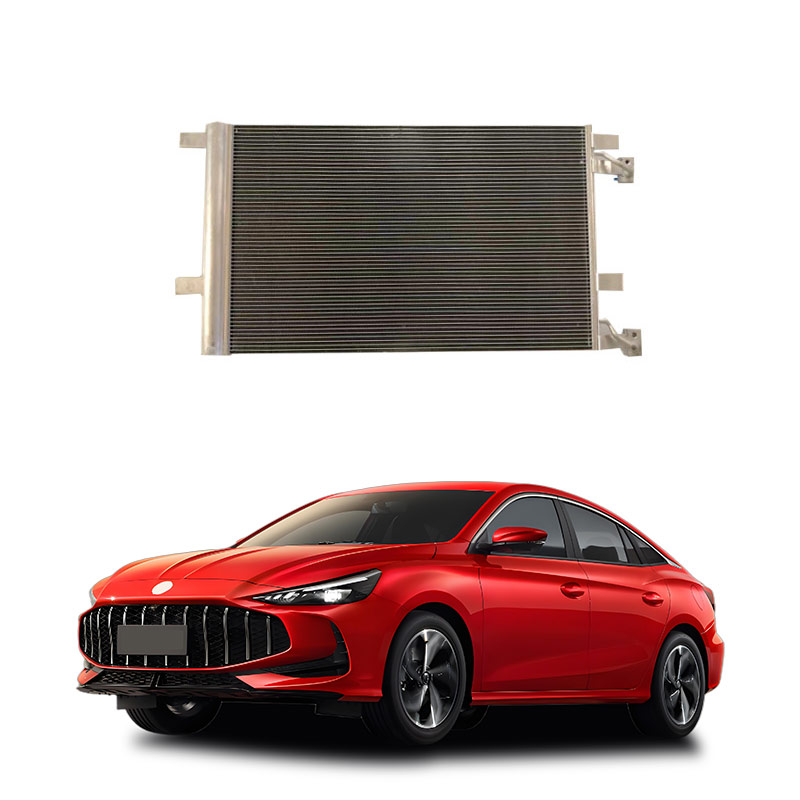

What is a car condenser
Automobile CONDENSER IS the CORE component of air conditioning refrigeration system, belongs to a type of heat exchanger, its function is to cool the high-temperature and high-pressure gaseous refrigerant discharged from the compressor into liquid, through heat dissipation release heat to achieve cooling inside the vehicle
Youdaoplaceholder0 The basic functions of a condenser
The automotive condenser is a key component of the air conditioning refrigeration system and mainly undertakes the following functions:
Youdaoplaceholder0 Heat conversion : The high-temperature and high-pressure gaseous refrigerant (such as R134a, etc.) discharged from the compressor is condensed into liquid refrigerant through heat exchange with the outside air by a heat sink.
Youdaoplaceholder0 Pressure regulation : During condensation, the refrigerant pressure gradually decreases from a high pressure state to create conditions for the subsequent evaporation heat absorption cycle.
Youdaoplaceholder0 Temperature control : By releasing heat, it ensures that the refrigerant reaches the appropriate temperature before entering the evaporator, thereby efficiently absorbing heat from the vehicle.
Youdaoplaceholder0 Working principle and structure
The condenser realizes the refrigeration cycle through the following mechanism:
Youdaoplaceholder0 Phase transition process : As the refrigerant flows through a copper (or aluminum) tube, it changes from a gaseous state to a liquid state, and the latent heat released is rapidly conducted to the air by the aluminum fins.
Youdaoplaceholder0 Forced convection : By means of natural air currents in motion or an electronic fan to force heat dissipation and accelerate the efficiency of heat exchange.
Youdaoplaceholder0 Multi-layer design : Most models adopt a parallel flow structure, consisting of multiple rows of flat tubes and louver fins, to increase the heat dissipation area.
A Condenser (Condenser), a component of a refrigeration system, is a type of heat exchanger that converts gas or vapor into liquid and transfers heat from a tube to the air near the tube at a rapid rate. The working process of the condenser is an exothermic process, so the temperature of the condenser is always relatively high.
Power plants use many condensers to condense the steam discharged from turbines. In the freezing plant, condensers are used to condense refrigeration vapors such as ammonia and Freon. Condensers are used in the petrochemical industry to condense hydrocarbons and other chemical vapors. In the distillation process, the device that converts vapor into liquid is also called a condenser. All condensers operate by removing the heat from gases or vapors.
Gas passes through a long tube (usually coiled into a solenoid), allowing heat to dissipate into the surrounding air. Metals like copper, which have strong thermal conductivity, are often used to transport steam. To enhance the efficiency of the condenser, heat sinks with excellent heat conduction performance are often attached to the pipes to increase the heat dissipation area and accelerate heat dissipation. At the same time, fans are used to speed up air convection and carry away the heat.
In the circulation system of a refrigeration machine, the compressor sucks in low-temperature and low-pressure refrigerant vapor from the evaporator. After adiabatic compression by the compressor, it becomes high-temperature and high-pressure superheated vapor, which is then pressed into the condenser for constant pressure cooling and releases heat to the cooling medium. Finally, it is cooled into a supercooled liquid refrigerant. The liquid refrigerant undergoes adiabatic throttling through the expansion valve to become low-pressure liquid refrigerant. In the evaporator, it evaporates and absorbs heat from the air conditioning circulating water (air), thereby cooling the air conditioning circulating water to achieve the purpose of refrigeration. The low-pressure refrigerant that flows out is drawn into the compressor, and this cycle continues.
A single-stage vapor compression refrigeration system is composed of four basic components: a refrigeration compressor, a condenser, a throttling valve and an evaporator. They are connected in sequence by pipes to form a closed system. The refrigerant continuously circulates in the system, undergoes state changes and exchanges heat with the outside world.
