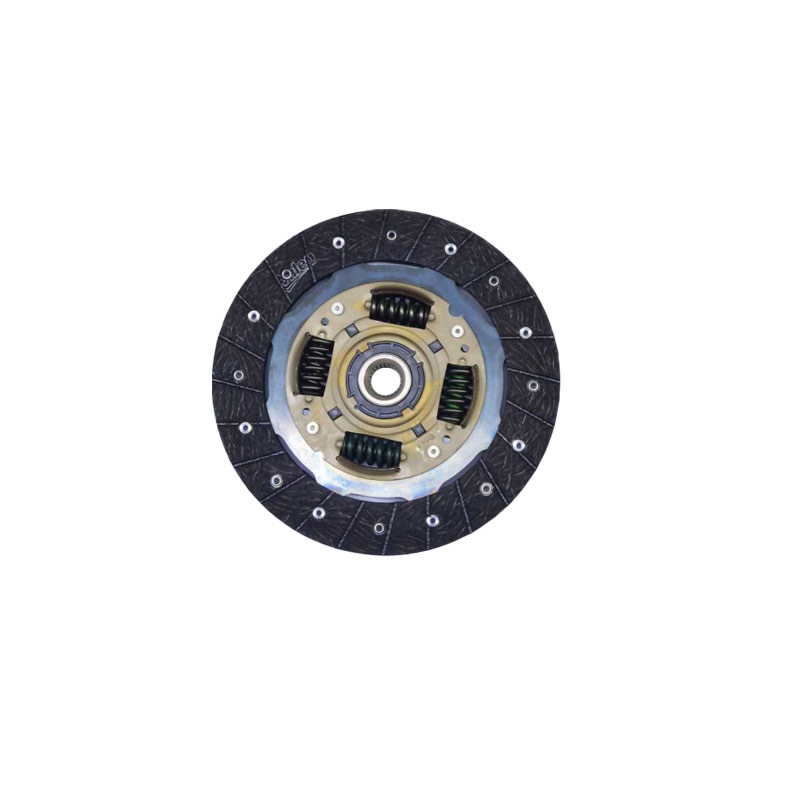

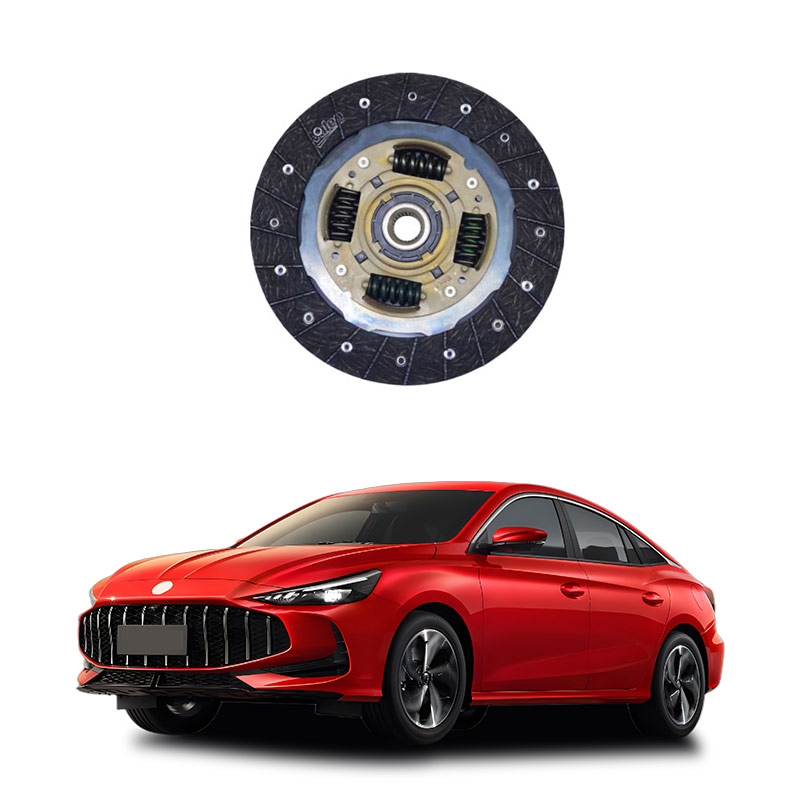

What is a car clutch disc
Automobile clutch disc is a composite material with friction as the main function and structural performance requirements , mainly used in automobiles, together with flywheels, pressure plates and other components to form the clutch system of automobiles. Its main function IS TO REALIZE THE power transmission and disconnection between the engine and the transmission device in the driving process of the vehicle, to ensure the smooth start, shift and stop of the vehicle under various conditions .
The working principle of clutch plates
The clutch plate transmits power through friction. When the driver presses the clutch pedal, the clutch release bearing will push the clutch pressure plate, causing the clutch disc to separate from the flywheel and interrupting the power transmission from the engine to the transmission. When the driver releases the clutch pedal, the pressure plate, under the action of the spring, presses the clutch disc tightly against the flywheel, achieving the transmission of power. Friction between clutch disc and flywheel is key to power transmission .
The material and type of clutch plates
Clutch plates are usually made of materials with specific friction coefficients, such as asbestos-based friction materials, semi-metallic friction materials, composite fiber friction materials and ceramic fiber friction materials, etc. These materials need to have a high and stable coefficient of friction and good wear resistance to ensure that the clutch can work properly under all conditions .
Maintenance and replacement of clutch plates
During use, it should be noted that the foot should not be placed on the clutch pedal for a long time to reduce the wear of the clutch plate. When the clutch disc slips, makes abnormal noises or fails to disengage normally, it may be necessary to inspect and replace the clutch disc. Replacing clutch plates usually requires professional skills and proper tools. It is recommended to go to a professional auto repair shop .
The main functions of automobile clutch plates include the following aspects :
Youdaoplaceholder0 To ensure a smooth start of the car : When the car starts, the clutch plates gradually engage to smoothly transfer the engine power to the wheels, thus preventing the vehicle from suddenly surging forward and ensuring a smooth start of the car .
Youdaoplaceholder0 For smooth gear shifting : During driving, the clutch plates can temporarily cut off the power connection between the engine and the transmission when shifting gears, allowing the driver to shift gears easily and reducing shock and wear during gear shifting .
Youdaoplaceholder0 To prevent overloading of the transmission : When the vehicle encounters emergency braking or other unexpected situations, the clutch disc limits the maximum torque transmitted to the transmission through sliding friction, thereby protecting the transmission and other transmission components from overloading damage .
Youdaoplaceholder0 The working principle of the clutch plate is based on friction and mechanical transmission. When the driver steps on the clutch pedal, the driving part of the clutch (such as the flywheel and pressure plate) separates from the driven part (such as the clutch disc), and the power transmission is cut off. When the pedal is released, the pressure plate presses the clutch disc again and power gradually returns to transmission .
Youdaoplaceholder0 Types of clutch plates including friction clutches, electromagnetic clutches and hydraulic clutches, etc. Among them, the friction clutch is the most common type and is widely used in manual transmission vehicles. Manual transmission COMMON dry single-plate clutch transmits engine power to transmission through friction plates, simple structure, low cost, easy to maintain .
The main manifestations of clutch plate damage in automobiles are abnormal power transmission, difficult operation and abnormal smell . The following is the classification description of specific symptoms:
Core fault manifestation
Youdaoplaceholder0 Clutch slipping
When accelerating, the engine speed increases but the vehicle speed rises slowly, especially when climbing slopes or starting, the power is obviously insufficient.
When accelerating sharply, the power response lags behind, overtaking is difficult, and fuel consumption abnormally increases.
Youdaoplaceholder0 Abnormal noise and metal friction sound
When the clutch pedal is depressed or lifted, a continuous "screeching" sound is emitted, accompanied by the shaking of the vehicle body.
The abnormal noise is particularly obvious when shifting gears.
Youdaoplaceholder0 Incomplete separation
It's difficult to shift gears and there is a distinct lag when shifting.
When starting, the vehicle body shakes violently and the clutch cannot completely cut off the power.
Youdaoplaceholder0 Burnt smell
A pungent burnt smell in the cockpit, especially after climbing slopes or frequent half-engagement operations, indicates that the clutch plates are overheated or eroded.
Abnormal operation manifestations
Youdaoplaceholder0 Clutch pedal travel becomes HIGHER : Originally it needed to be lifted 1 cm to start, now it needs to be raised more than 2 cm due to wear and thinning of clutch plate;
Youdaoplaceholder0 Abnormal power transmission : When the engine is not faulty, weak acceleration, difficulty in going uphill, etc. occur.
Other accompanying phenomena
Youdaoplaceholder0 Clutch shaking : The vehicle keeps running when starting, unable to engage the power smoothly;
Youdaoplaceholder0 Accelerated wear of components : Long-term incomplete separation can cause abnormal wear of components such as the pressure plate and flywheel.
Youdaoplaceholder0 Suggestion : If the above symptoms occur, check the clutch plate and pressure plate in time to avoid more serious mechanical failure due to persistent slippage. In daily driving, semi-engaged operations should be reduced and the clutch pedal should be avoided from being depressed for a long time.
