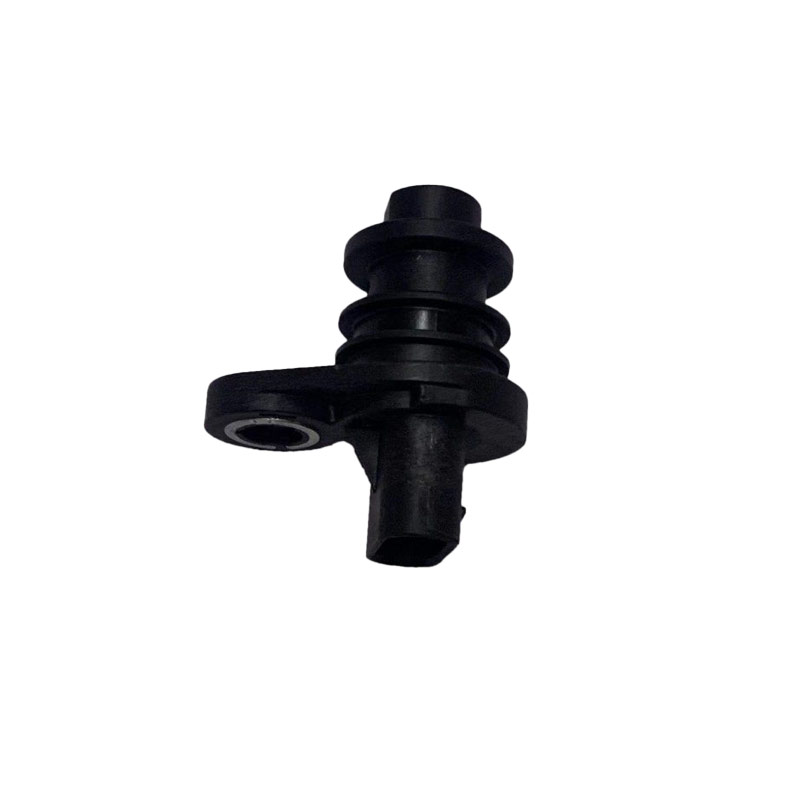

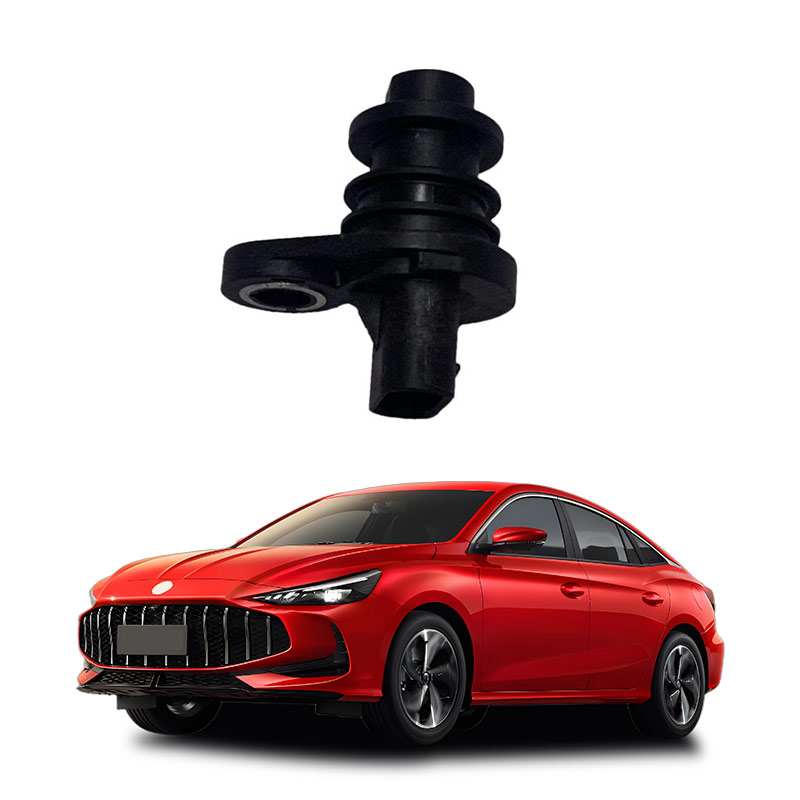

What is a car camshaft sensor
Youdaoplaceholder0 Camshaft Position Sensor (CPS) is a device used to collect camshaft position signals and is primarily used in engine management systems. Its main functions include inputting camshaft position signals to the electronic control unit (ECU) to determine ignition and fuel injection timing, helping the ECU identify cylinder 1 compression top dead center to achieve sequential fuel injection control, ignition timing control and deflameout control .
Installation location
The camshaft sensor is usually installed at the front end of the camshaft cover, directly facing the front of the intake and exhaust camshafts. This installation ensures that the sensor accurately captures the camshaft position signal and transmits it to the ECU.
Working principle
Camshaft sensors use the magnetoelectric effect or Hall effect to detect the position and rotational speed of the camshaft. For example, a magnetoelectric camshaft position sensor calculates the position and velocity of a camshaft by detecting changes in the induced current in the sensor coil produced by magnetic material as the camshaft rotates .
Fault diagnosis method
When inspecting the camshaft sensor, you can determine whether it is working properly by unplugging its plug and turning on the ignition switch, and using a test lamp pen to test the three wires (power wire, signal wire and ground wire). If the signal voltage varies between 0 and 5 volts, the sensor is working properly. Otherwise, the sensor may be damaged .
Car camshaft sensor failure is MAINLY manifested as difficult start, unstable idle speed, weak acceleration, increased fuel consumption, fault light always on , may also be accompanied by engine shaking, jerking, hot car stalling, etc. These symptoms result from abnormal sensor signals, which prevent the ECU from precisely controlling the ignition and fuel injection timing, thereby affecting the overall performance of the engine.
Youdaoplaceholder0 Core failure manifestations
Youdaoplaceholder0 Difficulty in starting : Due to ignition timing disorder, it may take multiple attempts to start or fail to start at all. In some cases, crankshaft reverse rotation and intake manifold backfire are shown.
Youdaoplaceholder0 IDLE instability : Abnormal shaking of the engine, obvious fluctuations in engine speed, similar to a missing cylinder, and in severe cases trigger limping mode.
Youdaoplaceholder0 Dynamic anomaly :
Weak acceleration and slow response, condition may worsen above 2500rpm
There is a distinct jolt during driving, especially when accelerating or decelerating
Youdaoplaceholder0 Economic decline :
Fuel consumption increased by 10%-30% due to fuel injection volume control failure
Emissions deteriorate, the exhaust pipe often has black smoke
Youdaoplaceholder0 Fault Warning : The engine fault light remains on, and the OBD system usually records the P0340-P0344 series code.
Youdaoplaceholder0 Derivative symptoms and risks
Youdaoplaceholder0 Hot engine stalling : The engine may suddenly stall after warming up and needs to be restarted to run
Youdaoplaceholder0 Component wear : Long-term failure will accelerate the wear of components such as pistons and cylinder walls, shortening the engine's lifespan
Youdaoplaceholder0 Safety risk : Power interruption or limitation during driving (limping mode) increases the probability of sudden accidents .
Automotive camshaft position sensors are usually one or two, depending on the engine configuration
The number of camshaft position sensors in automobiles varies depending on the engine design and functional requirements, and is mainly divided into the following two situations:
Youdaoplaceholder0 Single-sensor configuration
It is commonly seen in basic engines or systems that only perform variable timing control on the intake valves (such as some models applying VVT technology). Sensors are usually installed at the front end of the intake camshaft and are used to provide the main control signal for ignition control to the ECU.
For example: Some vehicle models adjust the intake valve timing through only one sensor, while the exhaust valve remains fixed.
Youdaoplaceholder0 Dual-sensor configuration
It is commonly seen in systems that simultaneously control the variable timing of intake and exhaust valves (such as dual VVT technology). The two sensors correspond respectively to the intake and exhaust camshafts to achieve more precise phase adjustment.
For instance, the third-generation EA888 engine explicitly adopts dual sensors (one for intake and one for exhaust).
Youdaoplaceholder0 Key points summary :
The number of sensors is related to the technical complexity of the engine. Basic models usually have one sensor, while high-end or performance models are more likely to adopt two.
Also known as "synchronous signal sensor" or "Cylinder discrimination and Positioning device", the core function of both is to transmit camshaft phase information to the ECU.
The installation position must be directly opposite the signal wheel; otherwise, accurate data collection cannot be achieved.
