The function of the airbag spring in automobiles
The main function of the airbag spring is to prevent occupants in the vehicle from colliding directly with components in the vehicle, thereby significantly reducing the risk of injury . When the vehicle encounters a collision, the airbag inflates instantly to provide a soft cushion for the occupants, effectively reducing the impact force on the occupants, ultimately reducing INJURY .
The working principle of the airbag spring
Airbag springs are usually used together with seat belts as a dual safety guarantee for vehicles. After a car is subjected to a certain degree of collision and impact, the airbag system will trigger a chemical reaction similar to the explosion of a small amount of explosives, enabling the airbags hidden inside the vehicle to inflate and deploy instantly. The airbag arrives in time before the occupants' bodies collide with the interior components, providing a soft cushion for the occupants to reduce the impact force .
The structure and design features of airbag springs
The airbag system is composed of multiple precise components working in coordination, including core components such as collision sensors, control modules (ECUs), gas generators, and airbags. The collision sensor is responsible for monitoring the acceleration changes of the vehicle during a collision and quickly transmitting these signals to the airbag computer as the basis for triggering the airbag.
Automobile airbag spring actually means air spring, it is one of the key components of the air suspension system in the chassis of a car. Air springs use the reaction force of compression inside the rubber airbag as elastic recovery force to adjust the height of the vehicle body and the stiffness of the suspension system by adjusting the internal air pressure, thereby better adapting to road conditions and driving state, improving vehicle comfort and handling .
The working principle and function of air springs
The air spring adjusts the height of the vehicle body by controlling the inflation volume. By inflating the airbags, the ground clearance can be increased, the vehicle body can be raised, and the off-road capability of the entire vehicle can be improved. Inflating airbags can lower the body, improve stability at high speed, reduce drag coefficient, improve economy .
In addition, air springs have nonlinear stiffness characteristics, and stiffness characteristic curves can be designed according to vehicle requirements to match different initial stiffness, improving ride comfort and handling stability .
The relationship between air springs and other components
The air suspension system also includes an air supply unit (such as an air compressor, air storage tank, distribution valve, etc.), an ECU controller, and sensors (such as body height sensors, acceleration sensors, etc.), and is used in conjunction with variable damping shock absorbers. Of these, air compressors and air springs are the components with the highest value and technical barriers .
The application and importance of air springs in automobiles
The application of air springs in automobiles not only enhances the comfort and handling of vehicles, but also meets the demands of new energy vehicles. Due to the heavy weight of electric vehicles, their center of mass is relatively backward, and the power torque is large, which puts forward higher requirements for the suspension.

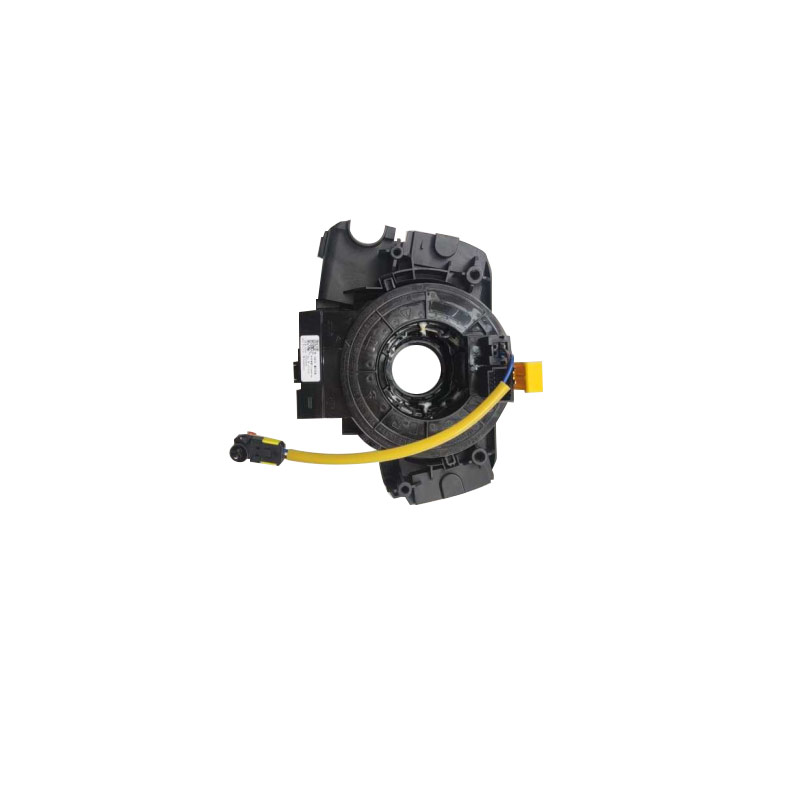

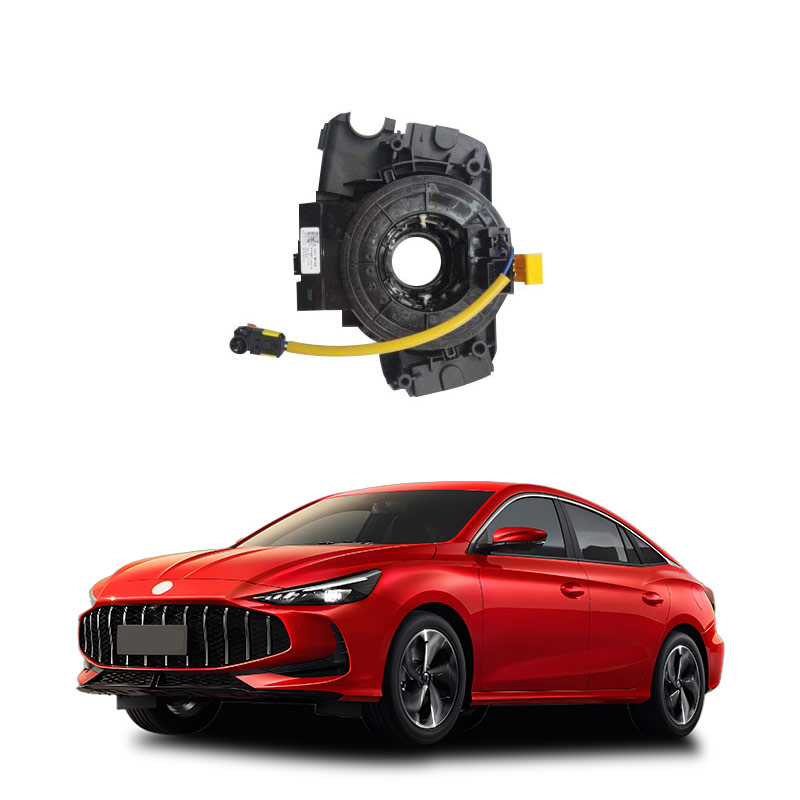

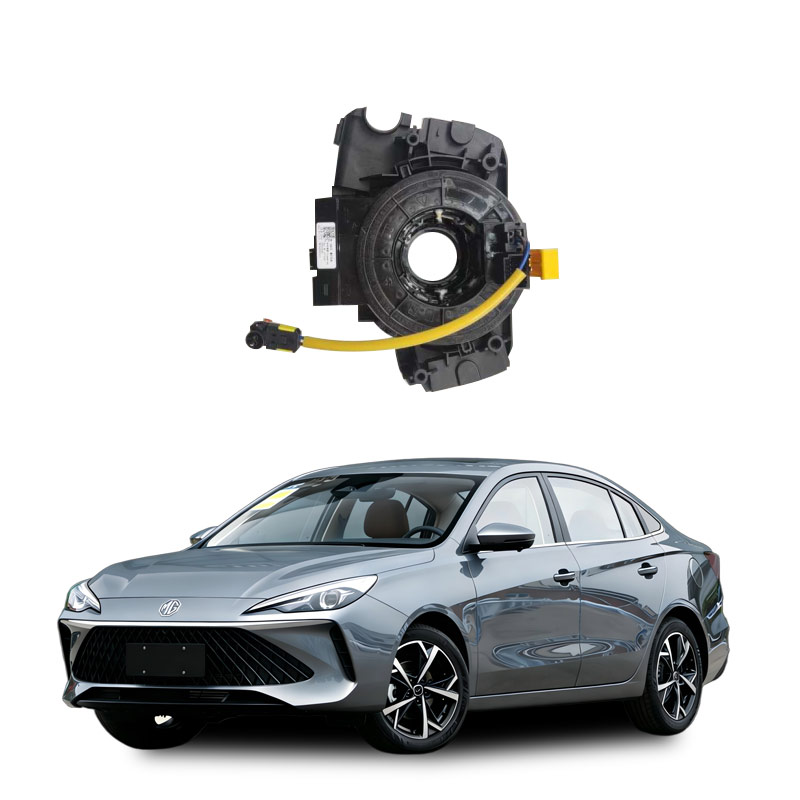

Youdaoplaceholder0 Airbag spring failure usually refers to the damage of the airbag hairspring, also known as the airbag drive spring. The airbag hairspring is located directly beneath the steering wheel and is responsible for connecting the airbag computer to the main airbag, rotating along with the steering wheel. After long-term use, the internal wiring harness may be damaged due to wear and tear, causing the airbag to fail to work properly. The specific manifestations are:
Youdaoplaceholder0 Airbag fails to deploy : This is the most direct sign of a faulty airbag hairspring. When the airbag needs to deploy to protect passengers, the airbag will not inflate properly due to damage of the airbag hairspring .
Youdaoplaceholder0 Warning light on : The airbag control module detects the fault and lights up the corresponding warning light .
Youdaoplaceholder0 Collision sensor activation issue : In the event of a collision, the collision sensor may not function properly, causing the airbag to fail to deploy or deploy with delay .
Youdaoplaceholder0 False alarm : A damaged airbag hairspring may generate false signals, causing the airbag warning light on the dashboard to falsely report a fault .
Youdaoplaceholder0 The multifunction button on the steering wheel malfunctions : In some models, a damaged airbag hairspring may also cause the multifunction button on the steering wheel to malfunction .
The cause of the fault and the solution
Youdaoplaceholder0 Poor plug contact : Vibration during vehicle operation or dust covering may cause poor contact of the plug. The solution is to unplug the plug, clean the dust, ensure that the fixed pins are stable and then reinsert it and clear the fault code. If the fault light is still on, you may need to replace the wiring harness and connectors .
Youdaoplaceholder0 Loose grounding wire : Tighten the grounding wire to ensure the airbag system works properly .
Youdaoplaceholder0 Battery undercharged : When severely undercharged, the airbag may report low voltage or even show a fault code. Need to go to the 4S store to remove or deal with loose PLUG problem .
Youdaoplaceholder0 Airbag hairspring damaged : Simply replace the damaged airbag hairspring to solve the problem .
Youdaoplaceholder0 Collision sensor failure : Use a fault diagnostic tool to identify the fault and repair or replace .
Youdaoplaceholder0 Airbag itself damaged : Use a fault diagnostic instrument to identify the damaged airbag and replace the corresponding parts .
Youdaoplaceholder0 Airbag computer board failure : Repair or replace the damaged airbag computer board, tighten or repair the loosely connected power and ground wiring harness .
Youdaoplaceholder0 Line open circuit : Check and fix the open circuit location .
preventive measure
Youdaoplaceholder0 Regular inspection : Check the seat slide and wiring every two years and avoid attaching accessories to the airbag cover.
Youdaoplaceholder0 Protection of modified wiring : Use automotive-specific bellows to protect the wiring harness during modification to prevent damage to the wiring harness .
