What is a car treasure beam
Subframe
Basic definitions and structures
Youdaoplaceholder0 Core function

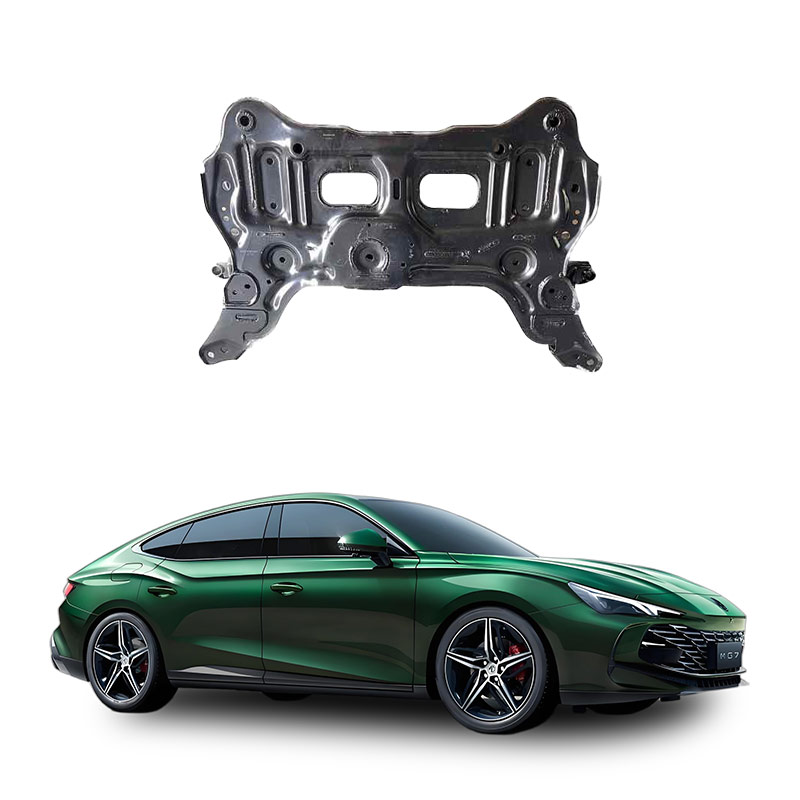

The Yuanbao beam (subframe) is a key component of the car chassis, located beneath the engine. It connects the front and rear axles, suspension and the main frame, providing support and fixation. Its design can effectively block vibration and noise, reduce the noise entering the carriage, and enhance the riding comfort.
Youdaoplaceholder0 Also known as : subframe (as it is not a complete frame, it is only used as a support).

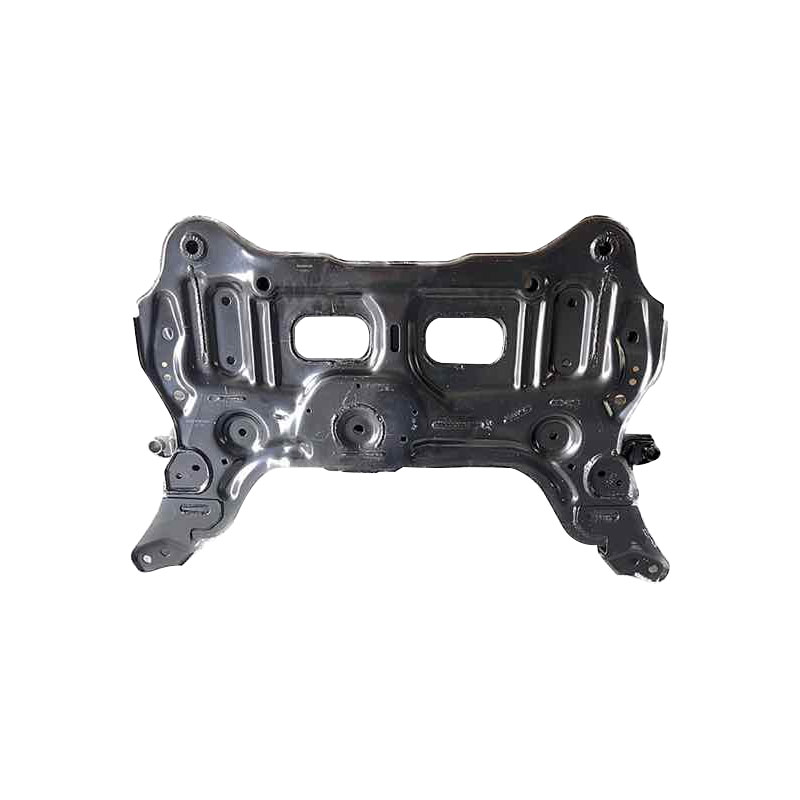

Youdaoplaceholder0 Shape : Named for its resemblance to a gold ingot, it is mostly composed of upper and lower plates and reinforcing plates, with mounting sleeves on both sides to adjust the suspension height.
Youdaoplaceholder0 Material and type
Youdaoplaceholder0 Material : Ordinary models mostly use steel (high strength, good toughness), high-end models use cast aluminum alloy (lightweight, corrosion-resistant).
Youdaoplaceholder0 Type : Divided into integral stamping type (formed in one piece, high strength) and welding type (flexible design, customizable).
Main function
Youdaoplaceholder0 Support and hold
Lift the engine and transmission to enhance the rigidity of the chassis.
Horizontally connect the vehicle body to enhance the overall strength of the vehicle body.
Youdaoplaceholder0 Protection and shock absorption
Protect the oil pan, engine and other components from direct impact.
By elastically connecting the main frame, it absorbs road vibrations and noises (more common in luxury cars and off-road vehicles).
Youdaoplaceholder0 Collision safety
In the accident, the Yuanbao beam might have been damaged due to the impact on the front longitudinal beam, causing the suspension to shift (when replacement is needed, the chassis components need to be disassembled, but it does not affect the engine).
Application scenarios and importance
Youdaoplaceholder0 Model adaptation : Unibody (such as in A-class passenger cars) is commonly equipped, and some tough SUVs optimize off-road performance with the Yuanbao beam.
Youdaoplaceholder0 Design significance : Its structure directly affects the vehicle's handling stability, comfort and safety, and it is one of the core components of the chassis system.
Automobile ingots BEAM (subframe) THE main functions include the following aspects :
Youdaoplaceholder0 For fixation : The gold beam is used to fix and support the engine and transmission to ensure their stability during vehicle operation .
Youdaoplaceholder0 Connection protection function : The intaglio beam increases the strength of the vehicle body by laterally connecting it, protecting key components such as the engine and transmission from direct impact .
Youdaoplaceholder0 Block vibration and noise : The Yuanbao beam can isolate and reduce vibration and noise during vehicle operation, enhancing driving and riding comfort .
Youdaoplaceholder0 Enhance suspension stability : The suspension system supported by the gold beam enhances the vehicle's stability and handling, ensuring it maintains a good driving condition in all road conditions .
Youdaoplaceholder0 The structure and installation position of the Yuanbao beam : The Yuanbao beam is usually composed of two crossbeams and one longitudinal arm, which are connected by high-strength bolts to form a strong frame. It is located at the front of the vehicle and enhances the vehicle 's stability and steadiness by passing the body weight to the front wheels .
Youdaoplaceholder0 Types of ingot beams : According to their structures, ingot beams can be divided into full ingot beams and half ingot beams. The full ingots beam covers the entire frame, while the half ingots beam only covers part of the frame. While the half-beam may be less stressed than the full-beam, it was designed and used to meet specific vehicle requirements and cost-effectiveness .
Youdaoplaceholder0 Faults of car gold beam usually show problems such as abnormal noise, vibration and deviation. The gold beam, also known as the subframe, is a bracket that supports the front and rear axles and suspension by connecting to the main frame to block vibration and noise and reduce the vibration directly entering the car .
If the Yuanbao beam malfunctions, it may cause the following problems:
Youdaoplaceholder0 Abnormal noise : If there is a problem with the gold beam, it may cause the vehicle to make abnormal noise during driving, especially when stepping on the accelerator and brake .
Youdaoplaceholder0 Vibration : Damage or loosening of the gold beam may cause unnecessary vibration during driving, affecting the smoothness and comfort of the vehicle.
Youdaoplaceholder0 Deviation : A malfunction of the Yuanbao beam may also cause the vehicle to veer off course, affecting its handling and safety .
Cause of failure and diagnostic methods
The possible causes of the malfunction of the Yuanbao beam may include the following:
Youdaoplaceholder0 Design defect or manufacturing problem : In some cases, there may be a defect in the design or manufacturing of the Yuanbao beam, which causes it to have problems during use.
Youdaoplaceholder0 Wear or aging : Prolonged use and wear may cause the connecting parts of the ingots beam to become loose or damaged.
Youdaoplaceholder0 Collision damage : After a collision, the gold beam of the vehicle may be damaged, resulting in its failure to function.
The methods for diagnosing faults in Yuanbao beams include:
Youdaoplaceholder0 Self-check : Check that the tires, suspension and braking systems are functioning properly and eliminate any abnormal noises or vibrations caused by these systems.
Youdaoplaceholder0 Professional diagnosis : Use a four-wheel alignment instrument to measure parameters such as the headbeam value, camber, and pin rearview Angle to ensure that these parameters are within the normal range .
Maintenance suggestions and preventive measures
Once a fault is found in the Yuanbao beam, it should be repaired or replaced in a timely manner. Maintenance suggestions include:
Youdaoplaceholder0 Replace damaged part : If the ingot beam itself is damaged, a new ingot beam needs to be replaced.
Youdaoplaceholder0 Tighten connecting parts : If the connecting parts are loose, tighten the relevant screws and connecting parts.
Youdaoplaceholder0 Professional inspection : It is recommended to have the inspection and repair done at a professional auto repair shop to ensure that all parts work properly.
In terms of preventive measures, it is recommended to regularly inspect the condition of the Yuanbao beam and its connecting components to ensure they are tight and intact, and to prevent minor issues from accumulating into major malfunctions.
