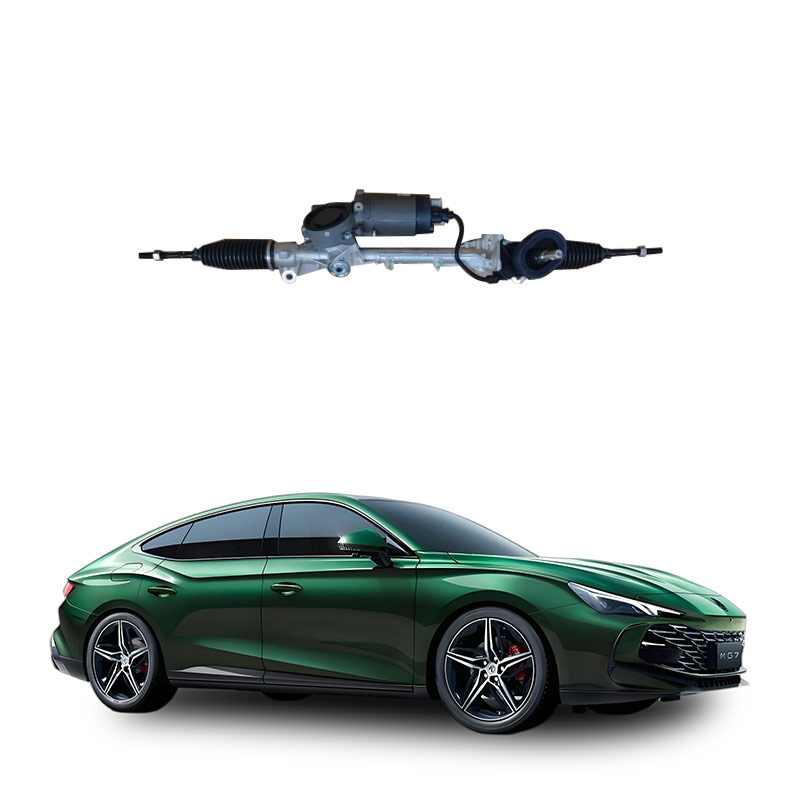

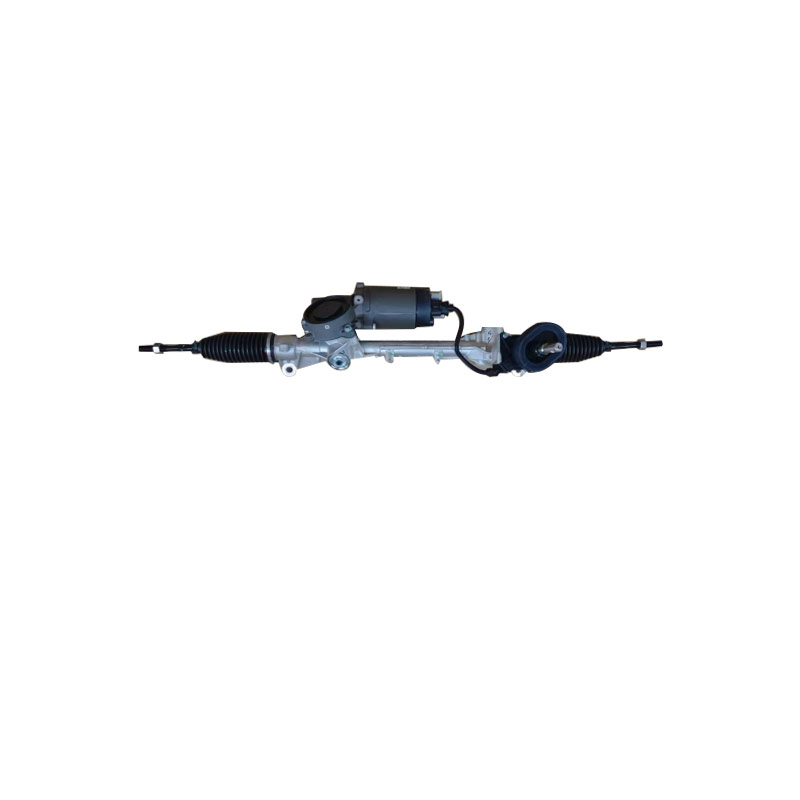

What is the automotive steering gear assembly
Youdaoplaceholder0 The steering gear assembly is the core component of the vehicle's steering system, which is mainly responsible for converting the driver's action of turning the steering wheel into the vehicle's steering action. The steering gear assembly consists of multiple key components that work together to complete the vehicle's steering function.
The main components and functions of the steering gear assembly
Youdaoplaceholder0 Steering wheel : The main component used to control the direction of the vehicle's movement .
Youdaoplaceholder0 Steering shaft : Connects the steering wheel and the steering gear, converting the rotation of the steering wheel into the input of the steering gear .
Youdaoplaceholder0 Steering gear : Also known as a reduction transmission device, it is responsible for converting the rotation of the steering shaft into the steering action of the wheels .
Youdaoplaceholder0 Steering knuckle : Connects the wheels and the steering gear, and supports the rotation and steering of the wheels .
Youdaoplaceholder0 Power steering mechanism (such as hydraulic power steering or electric power steering system) : Assists the driver in steering operations and reduces the power consumption during steering .
Youdaoplaceholder0 Mechanical steering gear : Converts the rotation of the steering wheel into the swing of the steering rocker arm and amplifies the torque at a certain transmission ratio .
Youdaoplaceholder0 Power steering gear : Steering is achieved through a hydraulic or electric power assist device, making driving easier .
Youdaoplaceholder0 Gearbox : Converts the rotational motion of the steering wheel into the linear motion of the rack. The core part is responsible for power transmission and conversion .
Youdaoplaceholder0 Rack : Connects the steering gearbox and the steering tie rod to enable left and right movement, driving the wheels to steer .
Youdaoplaceholder0 Steering gear tie rod : Connects the steering gear to the bogie component, transmitting and amplifying the driver's operating force .
Youdaoplaceholder0 Direction tie rod outer ball joint : Provides stability and flexibility to ensure accurate steering .
Youdaoplaceholder0 Pull rod dust cover : Protects the interior from dust and wear, ensuring reliable long-term operation of the components .
The working principle of the steering gear assembly
The working principle of the steering gear assembly is that through the coordinated action of these components, the driver's action of turning the steering wheel is converted into the vehicle's steering action. Specifically, when the driver turns the steering wheel, the steering shaft transmits this action to the steering gear, which then converts this action into the steering action of the wheels. Powertrain (such as hydraulic or electric powertrain) assists the driver in steering operation, reduces power consumption, makes driving easier .
Youdaoplaceholder0 The main function of the steering gear assembly is to increase the force transmitted from the steering wheel to the steering transmission mechanism and to change the direction of force transmission . The steering gear assembly, also known as the steering gear or steering gear, is the core component of a car 's steering system .
Specific function
Youdaoplaceholder0 Increase steering force : The steering gear assembly amplifies the force with which the driver turns the steering wheel, allowing the driver to achieve a greater steering action with less force.
Youdaoplaceholder0 Change the direction of force transmission : The steering gear assembly can change the direction of force transmission to ensure that the vehicle can turn as the driver intends .
Structural composition
The steering gear assembly usually consists of the following main parts:
Youdaoplaceholder0 Steering gear : Core component responsible for increasing and changing the transmission of force.
Youdaoplaceholder0 Steering gear tie rod : Connects the steering gear to the steering transmission mechanism and transmits the steering force.
Youdaoplaceholder0 Outer ball joint of the steering rod : connects the steering gear to the wheel to achieve the steering action.
Youdaoplaceholder0 Tie rod dust cover : Protects the tie rod and ball joint from dust and moisture entering and affecting steering performance .
Maintenance and fault handling
Abnormal noises and other problems may occur during the operation of the steering gear assembly. For instance, the 7.5th generation Camry model may experience abnormal noises due to the aging of the steering gear column gear after long-term parking. Usually, this issue needs to be addressed by replacing the steering gear column gear. Different options are available during the replacement process, such as removing the dashboard for replacement, removing the entire steering gear assembly, or removing part of the steering gear assembly .
