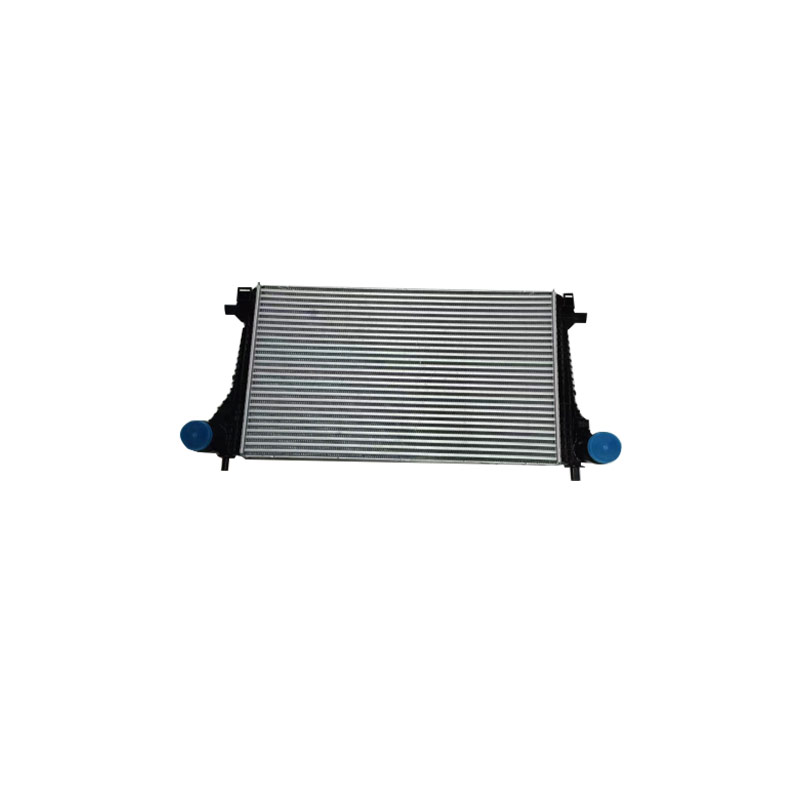

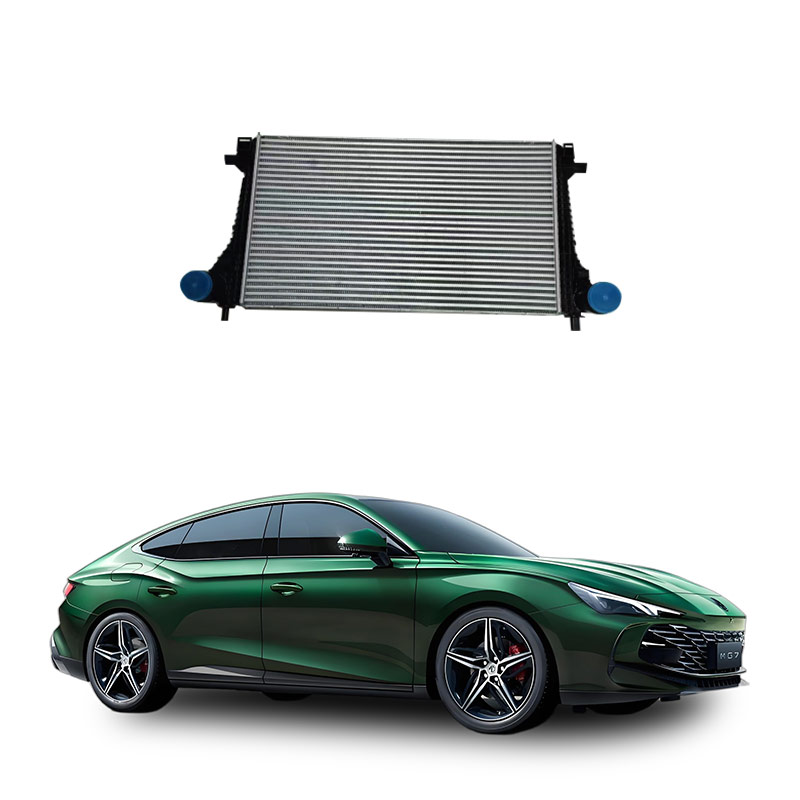

What is a car intercooler
The intercooler in a car is a supporting heat dissipation device for turbocharged engines, used to cool the high-temperature air after turbocharging to enhance engine efficiency and power performance.
Basic definition and function
The Intercooler, a key component of a supercharged engine such as a turbocharged or supercharged engine, is installed between the supercharger and the intake manifold. Its main function is to lower the temperature of the supercharged air . Its core functions include:
Youdaoplaceholder0 Cooling of hot air : During supercharging, the air is compressed, causing its temperature to rise (up to 200 ° C). The intercooler reduces the temperature to a reasonable range (typically 50-60 ° C) through heat dissipation, preventing excessive thermal load on the engine.
Youdaoplaceholder0 Improve combustion efficiency : Low-temperature air has a higher density, which increases the intake volume and enables more complete combustion of fuel, thereby enhancing power (for every 10 ° C decrease in the temperature of the pressurized air, power increases by 3%-5%).
Youdaoplaceholder0 Reduce detonation and emissions : High-temperature intake air is prone to cause deflagration, while cooling reduces emissions of NOx and other pollutants.
Type and HOW it works
Intercoolers are divided into two mainstream cooling methods:
Youdaoplaceholder0 Air-cooled : It uses the airflow generated by the vehicle during movement to dissipate heat. It is usually installed at the front of the vehicle or near a radiator. It has a simple structure and low cost, but is greatly affected by ambient temperature.
Youdaoplaceholder0 Water-cooled : It cools through the circulation of engine coolant, providing better constant temperature. It is suitable for space-constrained vehicles (such as some high-performance ones), but the cooling effect is usually less than that of air-cooled.
Materials and Structures
Youdaoplaceholder0 Material : mostly made of aluminium alloy because of its light weight and excellent thermal conductivity.
Youdaoplaceholder0 Design : The interior is made up of dense tubes and fins, which absorb and dissipate heat as gas flows through the tubes.
Maintenance and modification notes
Youdaoplaceholder0 Cleaning : Regularly rinse the external dust (avoid oblique spraying with a high-pressure water gun) and check the inside for blockages.
Youdaoplaceholder0 Modification suggestions :
Select the appropriate size to balance the cooling efficiency and pressure loss;
The pipeline should be shortened as much as possible and kept straight to reduce air flow resistance.
The outlet pipe diameter needs to be approximately 10% thicker than the inlet pipe to optimize the flow rate.
Applicable scenarios
Only turbocharged engines need to be equipped with intercoolers, while naturally aspirated engines do not require this device due to the lower intake air temperature.
Reduce the temperature of the pressurized air to increase the power and efficiency of the engine
Core function: Cooling pressurized air
The intercooler is a key component of turbocharged or supercharged engines, located between the turbocharger and the intake manifold. Its main function is to cool the high-temperature air compressed by the turbocharger (with a temperature of up to 80-200℃), and reduce the intake air temperature through heat exchange, thereby:
Youdaoplaceholder0 Increase air density : When cooled, the volume of air shrinks and the oxygen content increases, improving the inflation efficiency of the engine.
Youdaoplaceholder0 Increase power output : Experiments show that for every 10 ° C drop in the temperature of the pressurized air, engine power increases by 3% to 5%.
Optimize engine performance and reliability
Youdaoplaceholder0 Reduce heat load : High-temperature intake air intensifies the thermal stress in the engine combustion chamber. The intercooler cools down to prevent knocking, cylinder head deformation and other problems.
Youdaoplaceholder0 Lower emissions : Cooled air burns more completely, reducing nitrogen oxide (NOx) and black smoke emissions.
Youdaoplaceholder0 Improve fuel economy : Cold air mixes more evenly with fuel, improves combustion efficiency and reduces fuel consumption.
Special environmental adaptability
In high-altitude areas, intercoolers allow the use of compressors with a higher pressure ratio to compensate for power loss caused by thin oxygen and enhance the vehicle's power adaptability.
Type and design differences
Youdaoplaceholder0 Air-cooled (air-air cooler) : Commonly used in passenger cars, it cools pressurized air with outside air. It has a simple structure but is greatly affected by ambient temperature.
Youdaoplaceholder0 Water-cooled : Dissipates heat through coolant, is more efficient but more costly, and is mostly used in high-performance models.
Youdaoplaceholder0 Overhead intercooler (e.g. Subaru Impreza) : shortens the intake stroke but has slightly lower heat dissipation efficiency, and is better for balancing power and fuel consumption.
Youdaoplaceholder0 Failure impact : If the intercooler leaks, it will cause reduced power, increased fuel consumption, and even accelerated wear due to sand particles entering the cylinder.
If further optimization of the design is required, attention should be paid to the material standards (such as GB 3880 for aluminum alloy plates) and surface process requirements.
