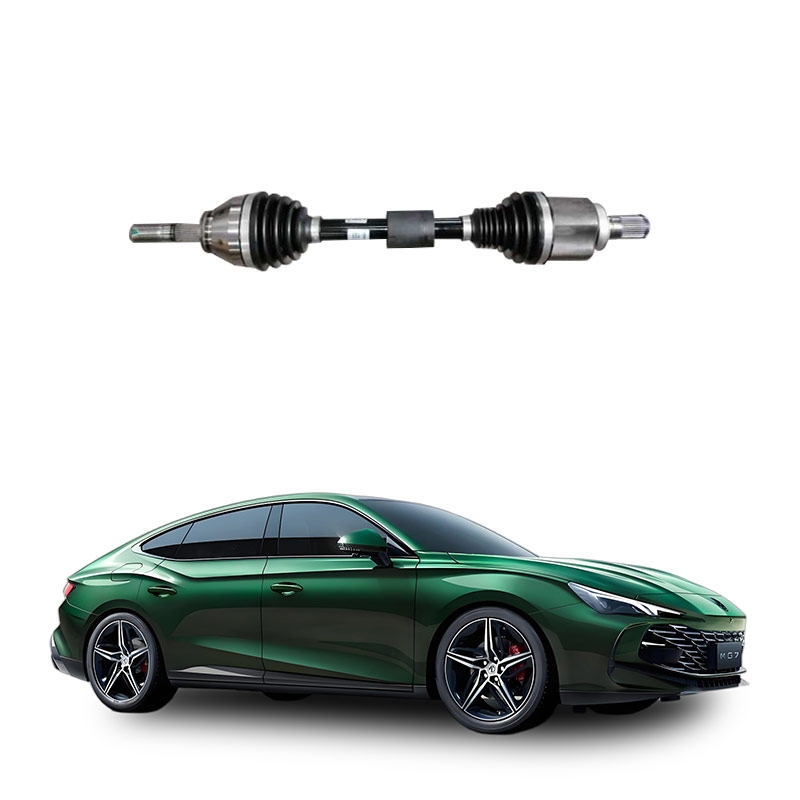

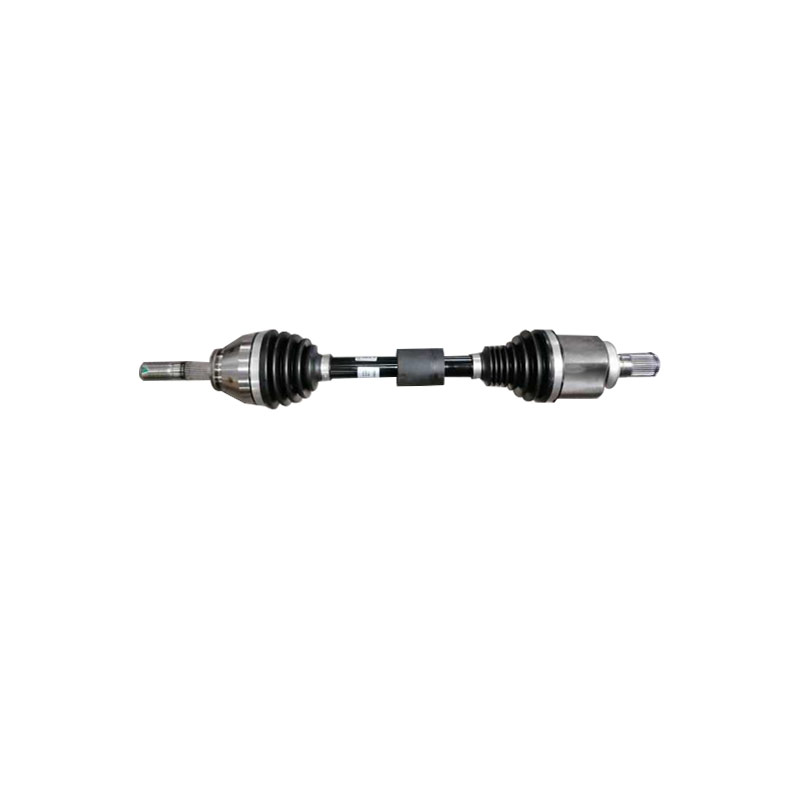

What is the front half axle assembly of a car
Youdaoplaceholder0 The front half axle assembly is a key component of the motor system, which is responsible for effectively transmitting the power of the engine from the transmission to the front wheels, ensuring that the vehicle can obtain a continuous driving force during driving .
The front half shaft assembly is usually precisely assembled from constant velocity universal joint, intermediate shaft (core shaft) and other related parts to ensure smooth and efficient power transmission .
The composition and function of the front half shaft assembly
Youdaoplaceholder0 Shaft tube : This is the main part of the half shaft, responsible for transmitting torque from the differential to the drive wheels. The shaft tube is usually made of steel or alloy steel .
Youdaoplaceholder0 Universal joint : There is a universal joint at each of the inner and outer ends of the half shaft, which are respectively connected to the gear of the reducer and the inner ring of the hub bearing through splines. The joint ensures the relative motion of the half shaft with respect to the wheels and the drive shaft during vehicle movement.
Youdaoplaceholder0 Cage : Located inside the shaft tube, it is used to keep the lubricant of the shaft bearing evenly distributed and to prevent bearing wear .
Youdaoplaceholder0 Bearing : Bearings need to be installed at both ends of the half shaft to support the shaft tube and bear torque. Bearings are usually made up of balls or rollers to ensure a lower coefficient of friction .
Youdaoplaceholder0 Dust covers : To prevent dust and moisture from entering the interior of the half shaft and causing damage to the bearings, dust covers are usually installed at both ends of the half shaft.
The relationship between the front half shaft assembly and other components
In the transmission system of a car, the driving force generated by the engine needs to be transmitted through multiple components and eventually reach the driving wheels. This process involves multiple components such as the clutch, transmission, drive shaft, universal drive device, main reduction differential and half shaft. Among them, the half shaft assembly is the key part responsible for efficiently transmitting engine power from the differential or end reducer gear to the wheels to drive the vehicle .
The main effects of car half shaft damage include blocked power transmission, reduced driving stability, increased safety risks, abnormal wear of components, . The following are the specific manifestations and influences:
Core symptoms and effects
Youdaoplaceholder0 Power transmission problem
Youdaoplaceholder0 Weak acceleration or lack of power : A damaged half shaft can cause the engine power to not be effectively transmitted to the wheels, resulting in sluggish acceleration or even total loss of power.
Youdaoplaceholder0 Increased fuel consumption : Reduced power transmission efficiency leads to a significant decline in fuel economy.
Youdaoplaceholder0 Abnormal driving stability
Youdaoplaceholder0 Body shaking or jolting : Irregular vibrations or jolting may occur while driving, especially when accelerating or at high speeds.
Youdaoplaceholder0 Veer off course or body sway : Uneven power distribution between the wheels can cause the vehicle to deviate from its course or even sway from side to side.
Youdaoplaceholder0 Abnormal noise and component wear
Youdaoplaceholder0 Metal friction or knocking sounds : Unusual noises such as clicks or creaks may be heard when turning, accelerating or driving at high speed, mainly caused by wear of universal joints or bearings.
Youdaoplaceholder0 Uneven tire wear : Deformation or bending of the half shaft can cause uneven force on the tire, resulting in uneven wear or abnormal wear.
Youdaoplaceholder0 Safety hazard
Youdaoplaceholder0 Risk of loss of control : In case of severe damage, dangerous situations such as wheel detachment and loss of control of direction may occur.
Youdaoplaceholder0 Reduced braking efficiency : In some cases, half shaft failure may indirectly affect the stability of the braking system.
Other accompanying phenomena
Youdaoplaceholder0 Oil leakage : Damage to the half shaft seal causes grease leakage, accelerating wear of components.
Youdaoplaceholder0 Abnormal steering wheel : Abnormal noise or shaking may occur when turning, especially when driving at high speed.
Coping suggestions
Youdaoplaceholder0 Repair : If the above symptoms are found, check the half shaft, universal joint and seals as soon as possible to prevent the problem from worsening.
Youdaoplaceholder0 First deal with abnormal noise and oil leakage : Early replacement of dust cover or additional lubrication can prevent damage to the half shaft as a whole.
