What exactly is the frame of a water tank?

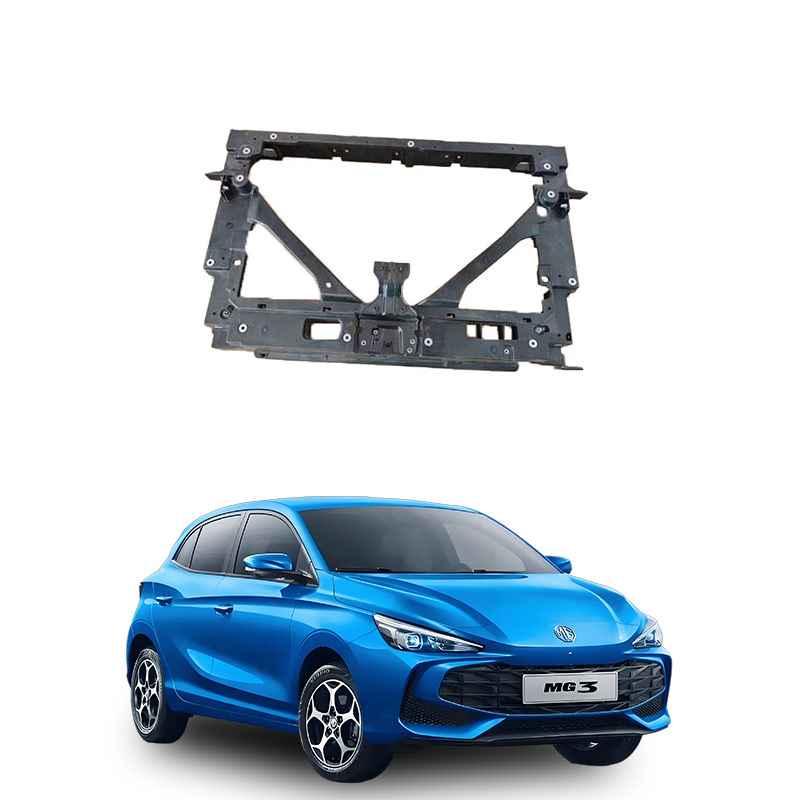

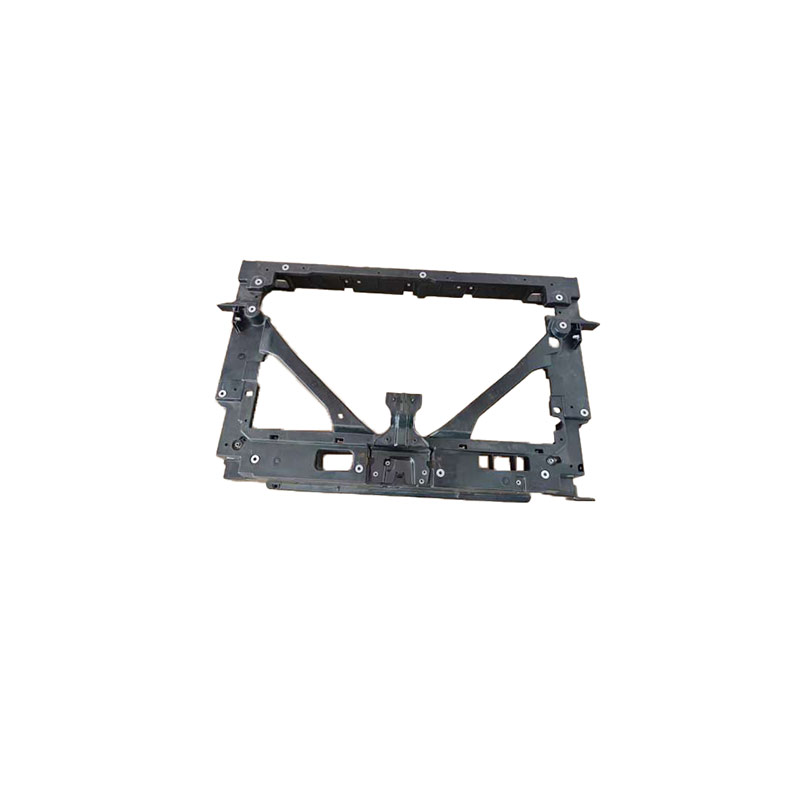

The radiator frame is a key component in the vehicle's frame. Its main function is to provide support for the radiator and condenser, ensuring their stability and safety during vehicle operation. This frame runs through the front of the vehicle and supports many important components at the front, such as the bumper, headlights and mudguards, etc. It is also an important part of the vehicle's appearance. It not only affects the structural integrity of the vehicle, but also relates to the vehicle's performance in an accident. Therefore, observing the condition of the radiator frame can be used as an indicator to determine whether the vehicle has suffered an accident.
The radiator frame is usually detachable independently, but in some vehicle designs, it is closely connected to the body frame. If the damaged radiator frame needs to be replaced, it may be necessary to cut and re-weld the old frame, which will have a certain impact on the vehicle body structure. The materials of water tank frames on the market are diverse, including plastic, iron and alloy, etc. Their structures can be divided into integral and split types. The integral type is more common, while the split type is composed of several parts connected by bolts or welding points.
When assessing whether the water tank frame needs to be replaced, it is necessary to check whether there are any signs of deformation or corrosion on the frame, as well as the integrity of the original factory marks. At the same time, it is necessary to check whether the installation holes and positioning holes are normal. Although the radiator is a vulnerable part and replacement is part of maintenance, merely because the frame is damaged does not mean that the vehicle has safety hazards. Replacement should only be considered when the frame is severely damaged or the energy-absorbing components are damaged, affecting driving safety. Overall, as long as the vehicle is kept running normally, replacing the radiator frame will not be a problem.
When the radiator frame of a car is damaged, it is recommended to replace it rather than repair it. Because the operation time for replacing the water tank frame is relatively short, approximately only one hour, and it can eliminate potential safety hazards.
The main functions of the car radiator frame include:
As the supporting structure for the water tank and condenser, it can be an independent component or merely serve as an installation position.
It is a large bracket fixed at the very front of the two front beams of the car, carrying important components such as the radiator condenser and headlights. Moreover, a hood lock and a front bumper are installed on its top.
If cracks appear on the water tank frame, the impact should be judged based on the size and location of the cracks. If the crack is small, for example, less than 5 centimeters and not located in the stressed area, it generally will not affect the use. However, if the crack is large or located at the stressed part, maintenance must be carried out.
In general, damage to the radiator frame should be dealt with promptly to ensure the normal use of the car. Replacement rather than repair is a more recommended option to ensure driving safety.
The car radiator frame, also known as the Front Crash Structure (FCS) or the front bracket, is an important component in vehicle safety design. It is located at the front end of the car. It not only carries the radiator of the cooling system but also plays a role in absorbing impact energy and protecting the safety of the passenger compartment in a collision. When a vehicle is involved in a frontal collision, the radiator frame may be damaged and needs to be replaced at this time. So, does replacing the radiator frame of a car count as a major accident? The answer to this question is not simple, as it involves multiple aspects such as the degree of collision, the scope of repair, safety impact, and the assessment of the value of second-hand cars. Next, we will discuss this issue in detail.
Analysis of the degree of collision and damage conditions
Firstly, the reason for replacing the radiator frame is often that the vehicle has suffered a relatively severe frontal collision. This kind of collision usually damages the front-end components such as the radiator, condenser, fan and bumper, and even affects the internal parts of the engine compartment. If the damage to the radiator frame is only caused by minor scratches, it generally does not require a complete replacement. Therefore, if the radiator frame has indeed been replaced, it indicates that the vehicle has undergone a certain degree of severe collision.
Impact on safety performance
From a safety perspective, after replacing the radiator frame with a new one, as long as the maintenance process is standardized and original factory parts are used, theoretically speaking, the vehicle's safety performance should be able to return to the factory standard. However, any collision may cause potential changes in aspects such as the rigidity of the vehicle body and the strength of welding. Especially for modern models that adopt high-strength steel and integrated forming technology, precisely restoring the initial state is no easy task. Therefore, even after professional repair, it is impossible to fully guarantee its original collision energy absorption effect and driving safety.
To sum up, replacing the radiator frame of a car usually indicates that the vehicle has experienced a relatively serious collision event, but this does not absolutely mean that a "major accident" has occurred. Whether it constitutes a major accident still needs to be comprehensively considered based on factors such as the specific damage to the vehicle, the quality of the repair, and the integrity of the main structure. For consumers, it is crucial to understand the complete maintenance history of a vehicle. When purchasing a second-hand car, one should seek professional institutions for a comprehensive inspection to accurately assess the actual condition and residual value of the vehicle. For car owners, when encountering such situations, in addition to ensuring safe repairs, timely and detailed recording and disclosure of maintenance information also contribute to fair and impartial evaluations in future transaction processes.
