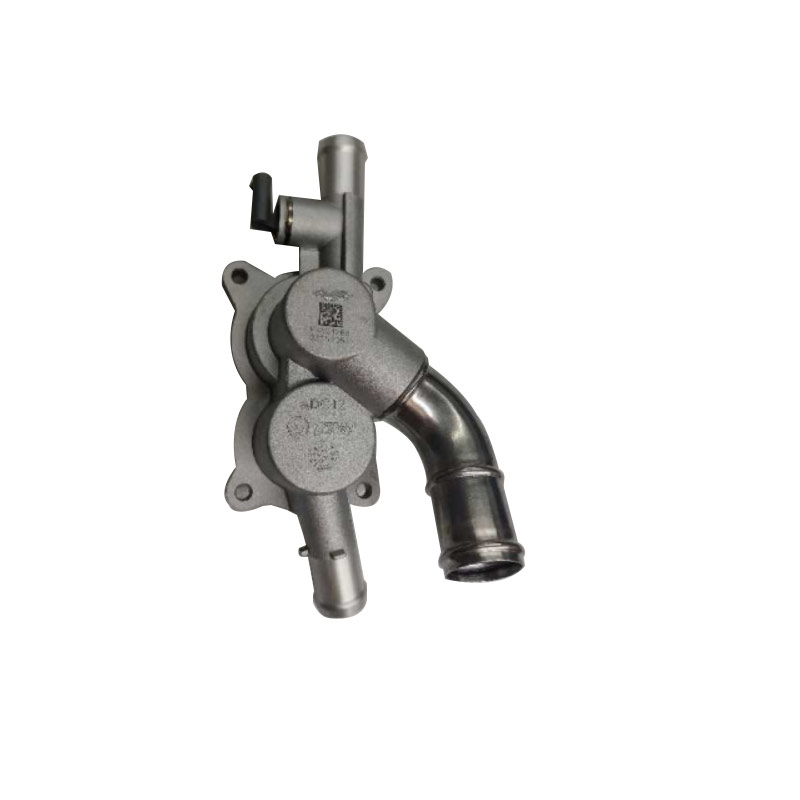

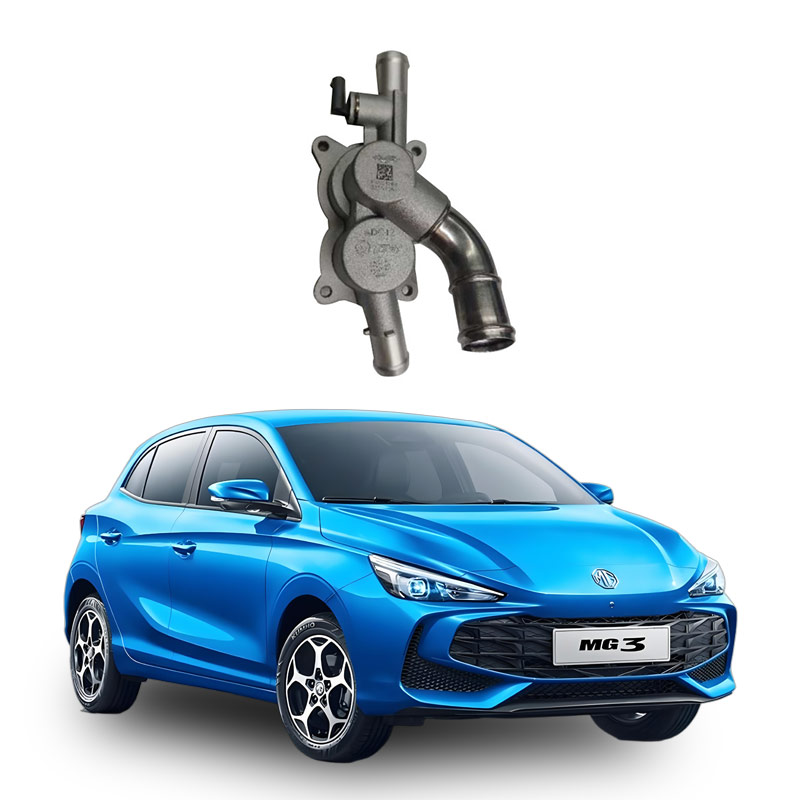

What is a car thermostat assembly
The CAR thermostat assembly is an important component in the car cooling system, its main function is to automatically adjust the circulation mode of the coolant according to the temperature of the coolant to ensure that the engine operates within the appropriate temperature range. The thermostat assembly consists of the thermostat body, the spring, the lock nut and other components, which work together to ensure that the engine maintains optimal operating temperature under different conditions .
Working principle
The thermostat assembly senses the temperature of the coolant through a temperature-sensing component (usually a wax thermostat). When the temperature of the engine coolant is lower than the set value, the paraffin inside the thermostat is solid, the valve is closed, and the coolant is returned to the engine through the water pump for a small circulation. When the temperature rises to the set value, the paraffin expands, the valve opens, and the coolant enters the radiator for a large circulation to accelerate heat dissipation effect .
Price range
The price of the thermostat assembly varies depending on the vehicle model and brand. Generally speaking, the price ranges from tens to hundreds of yuan.
In addition, there are different quality and price ranges of thermostat assemblies on the market, with good ones costing hundreds of dollars and poor ones costing only a few or a dozen dollars .
The MAIN function OF the CAR THERMOSTAT ASSEMBLY IS TO automatically adjust the amount of water entering the radiator according to the high or low temperature of the cooling water, change the range of water circulation, thereby adjust the heat dissipation capacity of the cooling system to ensure that the engine operates within the appropriate temperature range .
Working principle
The thermostat assembly regulates the flow path of the coolant by sensing the temperature of the cooling water. When the engine temperature is low, the thermostat opens, allowing the coolant to circulate between the water jacket and the radiator, helping the engine heat up quickly. When engine temperature is high, the thermostat closes to prevent coolant from flowing back to the radiator, keeping ENGINE running within normal operating temperature range .
Structural composition
The thermostat assembly includes the thermostat body, spring, lock nut and other parts. When replacing a thermostat, these components need to be replaced as a whole, not just parts .
Types and advantages and disadvantages
Common types of thermostats include wax thermostats, which are usually placed in the outlet pipe of the cylinder head. The advantages are that the structure is simple and it is easy to remove the bubbles in the cooling system. The drawback is that the thermostat often opens and closes during operation, which can easily cause oscillation. Wax thermostat works by the melting of a temperature-sensitive element, such as paraffin, to control the opening and closing state of the valve, thereby controlling the flow and direction of coolant .
Youdaoplaceholder0 Solution for broken car thermostat assembly :
Youdaoplaceholder0 Check the coolant tank and water flow : After starting the engine, check if there is any water flow in the coolant tank and if there is any water flowing at the water inlet pipe of the radiator. If there is no water flowing in the tank, the thermostat may be faulty .
Youdaoplaceholder0 Observe the water temperature gauge : Check if the water temperature gauge is abnormal. If the water gauge shows something abnormal (such as too high or too low water), there is likely a problem with the thermostat .
Youdaoplaceholder0 Replace thermostat : If the water temperature can be controlled, drive to a repair shop to replace thermostat; If the water temperature is too high and uncontrollable, stop the engine first, then remove the thermostat .
Youdaoplaceholder0 The impact of a faulty car thermostat assembly on the vehicle :
Youdaoplaceholder0 Abnormal engine temperature : A faulty thermostat can cause the engine temperature to be too high or too low, affecting the normal operation of the engine .
Youdaoplaceholder0 Increased fuel consumption : Excessively high engine temperature affects the combustion efficiency of fuel, thereby increasing fuel consumption .
Youdaoplaceholder0 Reduced power : Excessively high engine temperature can cause reduced power and weakened vehicle power .
Youdaoplaceholder0 Increased noise : Excessively high engine temperature causes thermal expansion of components, thereby increasing engine noise .
Youdaoplaceholder0 Dashboard warning light on : Most cars have a warning light that indicates the engine is overheated or the cooling system is abnormal. If the thermostat fails, this warning light will come on .
Youdaoplaceholder0 Preventive and maintenance advice :
Youdaoplaceholder0 Regularly Check the thermostat : Regularly check the working condition of the thermostat to ensure it works properly.
Youdaoplaceholder0 Replace coolant : Replace coolant regularly to keep the cooling system clean and functioning properly.
Youdaoplaceholder0 Maintenance of the cooling system : Keep the cooling system clean to prevent impurities from clogging the thermostat.
