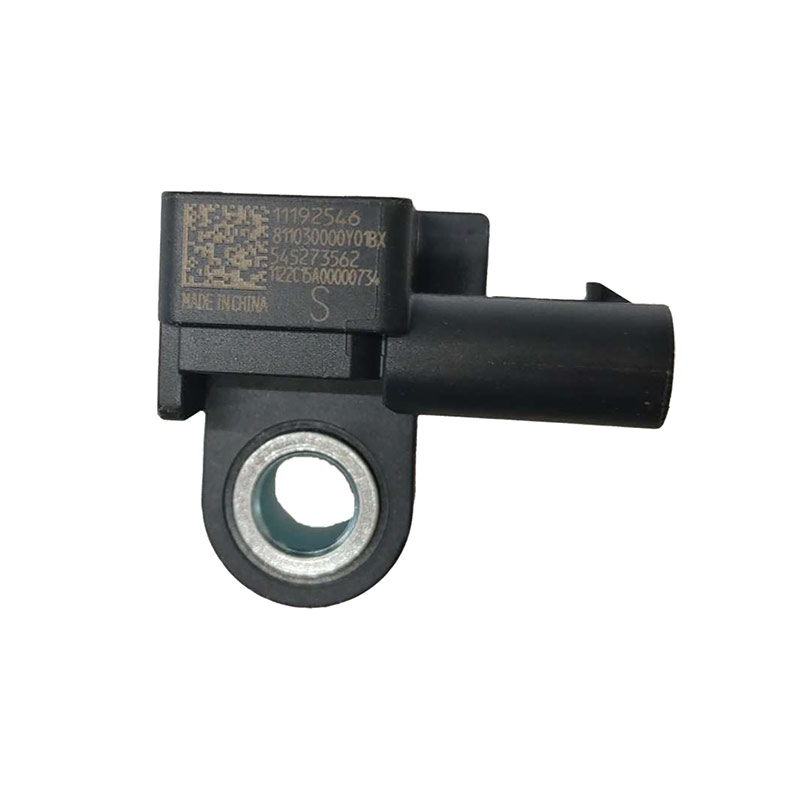

What is a car seat collision sensor
Youdaoplaceholder0 The car seat collision sensor is a thin-film contact sensor whose contacts are evenly distributed over the stressed surface of the seat. When the seat is subjected to external pressure, the sensor generates a trigger signal, which is fed into the electronic control device of the airbag system .
Working principle and function
The main function of the seat collision sensor is to monitor the impact force on the seat. When a vehicle collides, the impact force on the seat will trigger the sensor and generate an electrical signal. This signal is then passed to the airbag system control unit, which determines whether the airbag outside the seat needs to be triggered based on the received signal to protect the passenger .
Installation location and trigger mechanism
Seat collision sensors are usually installed on the force-bearing surfaces of the seat, such as the side or bottom of the seat. When the sensor detects sufficient impact force, it sends a signal to the control unit, which then decides whether to activate the airbag .
Practical application cases
Take the Audi A6 as an example. This model is equipped with a comprehensive airbag system, including multiple airbags and sensors.
Youdaoplaceholder0 The main function of the car seat collision sensor is to detect the change in acceleration during a collision and transmit the detected signal to the electronic control device of the airbag system to determine whether to detonate the inflation element to inflate the airbag . Specifically, the collision sensor assesses the intensity of the collision by detecting the inertial force at the maximum deceleration of the vehicle during the collision and promptly transmits this information to the control unit. The control unit decides whether to trigger the airbag outside the SEAT based on the received data to protect the passenger .
The working principle of the collision sensor
Collision sensors usually adopt an inertial mechanical switch structure, and their working state depends on the acceleration change of the vehicle during a collision. When a vehicle collides, sensors detect significant deceleration and inertial force, and transmit the signal to the electronic control device of the airbag system. These sensors include various types such as ball, roller and eccentric ball, each with its own unique mechanism to deal with different collision situations .
The function of the seat position sensor
The main function of the seat position sensor is to capture the precise position information of the seat in real time and effectively transmit it to the memory seat ECU for storage and processing. When it is necessary to restore the seat to a specific position as previously remembered, the seat position sensor ensures that the seat accurately returns to the preset position .
Youdaoplaceholder0 Car seat collision sensor failure is usually caused by damage to the sensor itself or problems with the connection lines. The collision sensor is an essential part of the airbag system, which detects the intensity of a collision in the event of a vehicle collision and sends the signal to the electronic control device of the airbag system to determine whether to detonate the inflation element to inflate the airbag .
Cause of failure and diagnostic methods
Youdaoplaceholder0 Sensor failure : The collision sensor may fail due to internal mechanical structure damage or electrical connection problem. When making a diagnosis, the fault code can be read by a computer to check if the sensor reports an error. If the sensor is passive, the computer may not be able to read the fault code directly and verify its working status by other means .
Youdaoplaceholder0 Line problem : The connection line of the sensor may be loose or damaged, resulting in poor signal transmission. Check the line connection IS SECURE, make sure there is no open circuit or short circuit .
Maintenance suggestions
Youdaoplaceholder0 Replace sensor : If the sensor itself is damaged, a new sensor needs to be replaced. Original parts can be ordered from the manufacturer and replaced according to the maintenance manual .
Youdaoplaceholder0 Repair line : If it is a line problem, check and repair the line connection to ensure normal signal transmission.
Youdaoplaceholder0 Professional repair : It is recommended to have the vehicle inspected and repaired at a professional auto repair shop to ensure the quality and safety of the repair .
