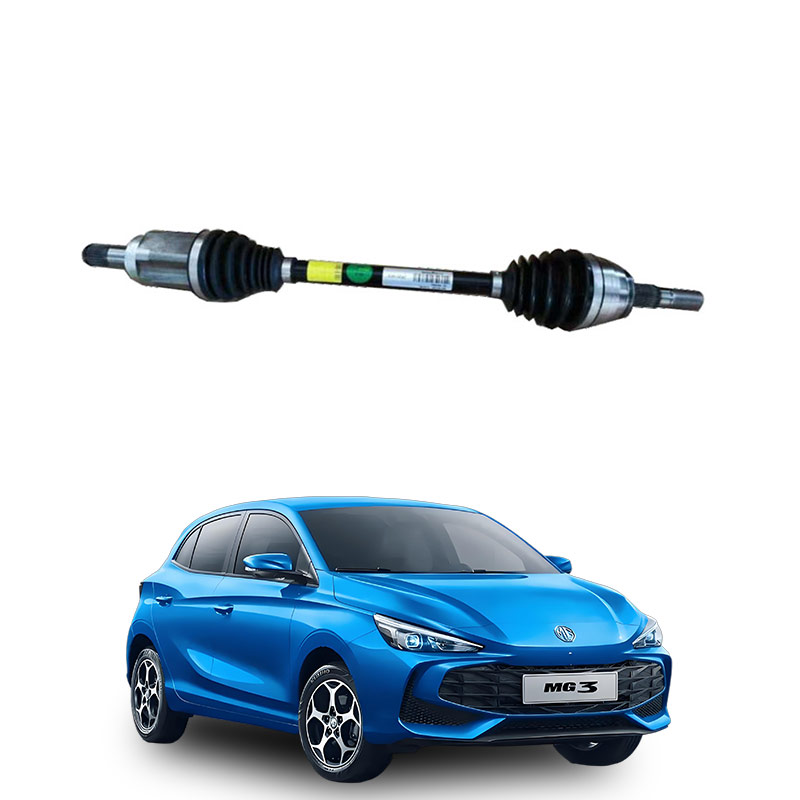

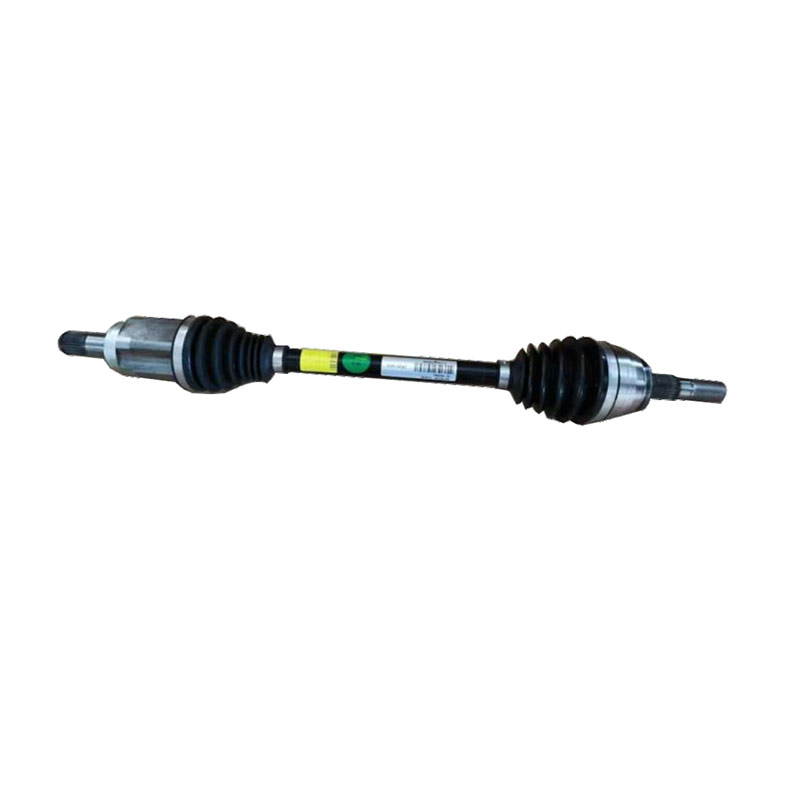

What is the front half axle assembly of a car
Youdaoplaceholder0 The front half axle assembly of a car is a key component in the vehicle's transmission system, mainly responsible for effectively transmitting the engine power from the transmission to the front wheels, ensuring that the car can obtain a continuous driving force during operation and thus achieve the goal of high-speed driving .
The front half shaft assembly is usually precisely assembled from constant velocity universal joint, intermediate shaft (core shaft) and other related parts to ensure smooth and efficient power transmission .
Structure and Working principle
The main components of the front half shaft assembly include:
Youdaoplaceholder0 Constant velocity universal joint : used to maintain the stability of power transmission when the vehicle is turning.
Youdaoplaceholder0 Middle shaft (core shaft) : Transmits power to the wheels.
Youdaoplaceholder0 Other related parts : such as bearings, splines, etc., to ensure smooth and efficient power transmission .
Common types and classifications
The front half shaft assembly is mainly divided into the following two types according to different support types:
Youdaoplaceholder0 Full-floating half shaft : Bears only torque and no other forces or bending moment, widely used in commercial vehicles .
Youdaoplaceholder0 Semi-floating half axle : It not only transmits torque but also bears the bending moment generated by the vertical force, driving force and lateral force transmitted from the wheels. It is widely used in passenger cars and some light vehicles .
Fault manifestations and maintenance suggestions
During the operation of the car, if you hear abnormal noises coming from the front half shaft direction or if the following situations occur, you should immediately check:
Youdaoplaceholder0 Bending, twisting, breaking : such as hairpin falling off or cracking, shaft alignment breaking, etc. Youdaoplaceholder2.
Youdaoplaceholder0 Worn or twisted spline teeth : These faults can affect smooth power transmission and require timely repair or replacement of .
Youdaoplaceholder0 The main function of the front half axle assembly is to transmit power . It 's a key component in the car' s transmission system that efficiently transmits power from the engine from the differential to the left and right drive wheels to drive the car .
Specifically, the front half shaft assembly is precisely assembled through constant velocity universal joint, intermediate shaft (core shaft) and other related parts to ensure smooth and efficient power transmission .
Structure and working principle
The front half shaft assembly is usually designed with a solid shaft. The inner end is connected to the half shaft gear of the differential through splines, while the outer end is connected to the wheel housing of the drive wheel through flange plates or splines, etc. It is equipped with a U/JOINT at each end, and the splines on these U/ joint are respectively connected to the gear of the reducer and the inner ring of the hub bearing, ensuring smooth and efficient power transmission .
Fault manifestations and impacts
If the front half shaft assembly malfunctions, such as bearing breakage, oil leakage or abnormal noise during steering, it needs to be replaced in a timely manner. Failure to replace in time may cause unstable driving, such as veering off course, steering wheel vibration and other problems, and even affect driving safety .
In addition, damage to the half shaft can cause the car to lose balance, resulting in shaking, jolting, steering wheel shaking, veering, etc. Prolonged use can also cause uneven wear and crack increase .
Youdaoplaceholder0 Symptoms of front half axle assembly failure mainly include the following :
Youdaoplaceholder0 Unusual noises : While driving, especially when turning or accelerating, you may hear clicking, creaking or metallic clanging sounds, which may be caused by wear of the bearings or universal joints inside the half shaft .
Youdaoplaceholder0 Jitter : During driving, you may experience irregular jitter, especially when accelerating or driving at high speeds, which may be caused by half shaft imbalance or damage to internal parts .
Youdaoplaceholder0 Oil leakage : If oil stains are found near the half shaft, it may be that the half shaft seal is damaged. Such leakage will further accelerate the wear of the half shaft .
Youdaoplaceholder0 Abnormal steering wheel : For example, it makes a strange noise when the steering wheel is fully turned, or the steering wheel shakes while driving .
Youdaoplaceholder0 Power transmission problem : If the vehicle's acceleration response becomes sluggish or it may even lose power, it could be because the half axle is unable to effectively transfer the engine's power .
Youdaoplaceholder0 Body sway : During driving, the body may experience severe swaying and instability, manifested as swaying from side to side.
Youdaoplaceholder0 Uneven tire wear : If the half shaft bends or deforms, it may cause uneven tire wear .
Youdaoplaceholder0 Unstable driving : When the front half axle is damaged, the vehicle may make abnormal noises and feel bumpy while driving. In severe cases, it may prevent the vehicle from continuing to drive .
Youdaoplaceholder0 Deviation from the driving path : If there is a problem with the front half axle, the vehicle is prone to deviate from the intended path while driving, which poses a threat to driving safety .
Youdaoplaceholder0 Impaired braking performance : Problems with the half shaft may interfere with the function of the braking system, thereby reducing braking performance or even causing complete braking failure .
Youdaoplaceholder0 The working principle and fault diagnosis method of the front half shaft assembly :
The front half shaft assembly of a car is an important component that connects the transmission and the drive wheels, and is responsible for transmitting power. The front half shaft assembly includes components such as inner and outer ball cages and spline connections. When the vehicle turns, the spatial Angle of the outer ball cage changes. With the variation of the suspension height, it can also cause the expansion and contraction movement of the inner ball cage of the half axle. The damage of the front half shaft assembly is usually caused by the rupture of the dust covers of the inner and outer ball cages, resulting in the loss of lubricating oil and the wear of parts. Common methods of fault diagnosis include checking the wear of the inner and outer ball cages, as well as testing the balance and transmission efficiency of the half shaft .
Youdaoplaceholder0 Maintenance and replacement advice :
Once a fault is found in the front half shaft assembly, it should be repaired or replaced in a timely manner. If only the dust cover is leaking oil, it can be replaced. If the half shaft is bent or deformed, the entire half shaft needs to be replaced. Regular inspection and maintenance of the front half shaft assembly, including cleaning the condenser, changing the lubricating oil and checking the wear of the ball cage, can effectively extend its service life and ensure driving safety .
If you want to know more, keep reading the other articles on this site!
