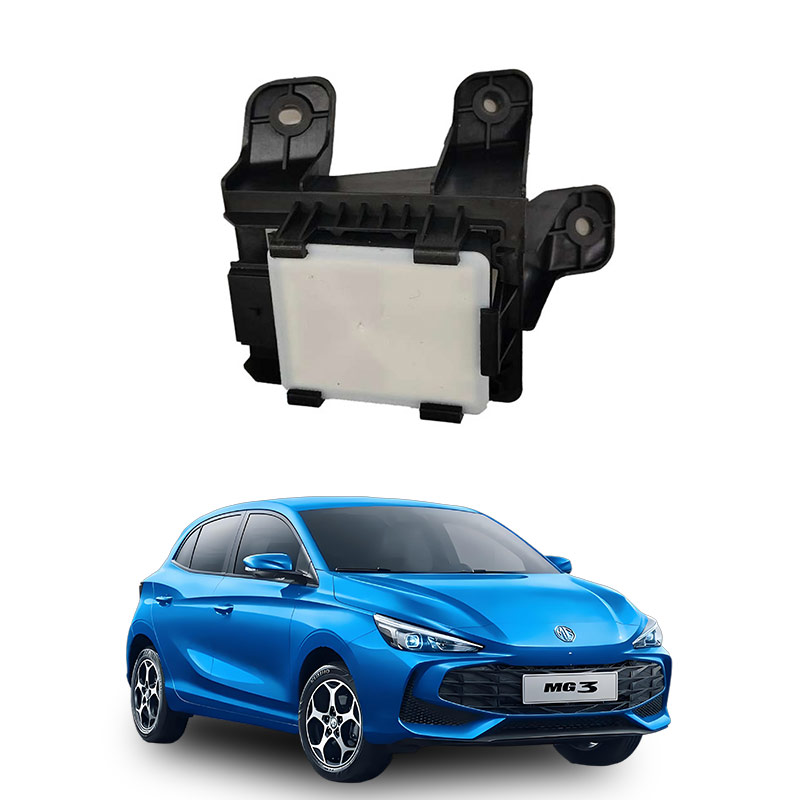

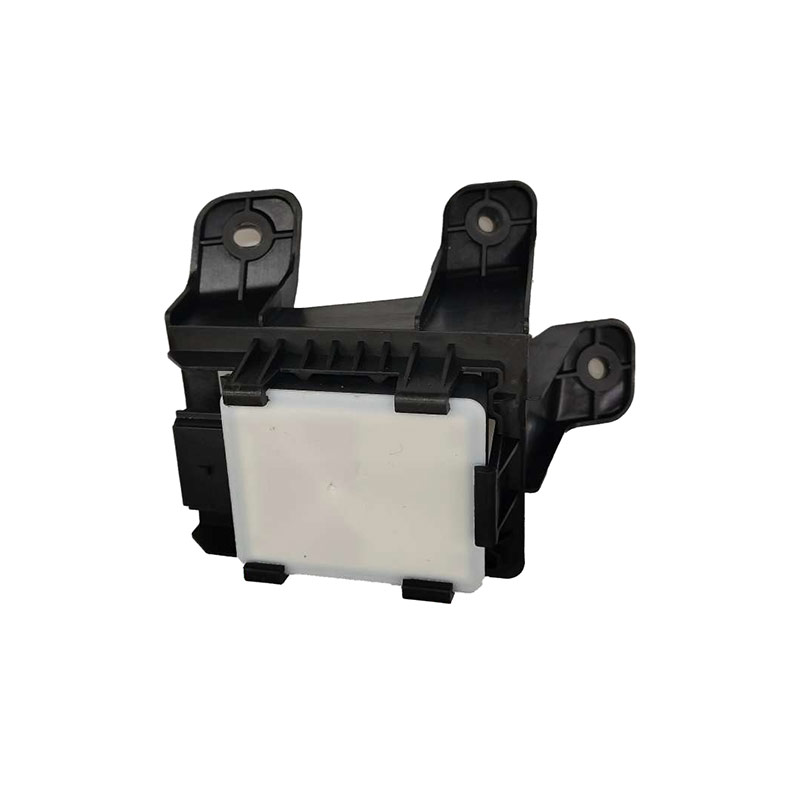

The function of the rear radar module of a car
Youdaoplaceholder0 The main function of the rear radar module is to help drivers detect obstacles behind the vehicle when parking or reversing to ensure driving safety.
Main functions
Youdaoplaceholder0 Obstacle detection : The rear radar module detects obstacles behind the vehicle through ultrasonic or radar sensors. When an obstacle is detected, it sends a signal to the controller for processing .
Youdaoplaceholder0 Distance and Position display : The controller receives sensor signals, processes them and displays the distance and position of obstacles on a display. The display can be analog or digital, or even provide a graphical interface to visually display the surroundings of the vehicle .
Youdaoplaceholder0 Alarm prompt : When the vehicle approaches an obstacle, the system will sound an alarm to remind the driver to brake in time to avoid a collision .
Working principle
The rear radar module is usually composed of ultrasonic sensors, controllers and displays. The sensor is installed on the vehicle's bumper, taillights or other appropriate positions, covering the entire rear view of the vehicle. When the sensor detects an obstacle, it sends a signal to the controller, which processes the signal to determine the distance and position of the obstacle and alerts the driver via a display or a buzzer .
Actual application scenarios
Youdaoplaceholder0 Reversing into a parking space : When reversing into a parking space, the rear radar can help the driver avoid collisions caused by blind spots .
Youdaoplaceholder0 Side parking : In side parking, the rear radar can provide precise ranging capability to help the driver determine the distance between the vehicle and the obstacle .
Youdaoplaceholder0 Narrow passageways : When passing through narrow passageways or parking Spaces, the rear radar can provide real-time distance data to help drivers safely pass through .
Youdaoplaceholder0 Low-speed driving : When driving at a low speed (such as in a community or parking lot), the rear radar can warn of obstacles ahead or to the side in advance to avoid colliding with .
Youdaoplaceholder0 Automatic parking : The rear radar of some high-end models combined with the automatic parking system can achieve automatic parking function, especially suitable for novice drivers or owners of large vehicles .
Automobile rear RADAR module failure causes and solutions mainly include the following aspects:
Youdaoplaceholder0 Hardware connection or component issues :
Youdaoplaceholder0 Fuse failure : Check if the fuse has blown. The fuse box is usually located under the steering wheel or in the engine compartment. Find the corresponding radar fuse (generally 5A or 10A) and pull it out with tweezers to see if it has blown. Replacing a fuse costs only a few dollars .
Youdaoplaceholder0 The power cord is not securely connected : Check if the main power cord and the radar main power cord are securely connected .
Youdaoplaceholder0 Buzzer damaged : A faulty buzzer may cause the reversing radar to be silent. Check if the buzzer is working properly and replace it with a new one if necessary .
Youdaoplaceholder0 Aged or broken lines : Check if the radar-related lines are aged or broken. Contact a professional maintenance person to replace the damaged lines if necessary .
Youdaoplaceholder0 Probe damaged : The probe may be damaged due to impact or aging. The test method is to put it in reverse gear and hold it close to the probe. If there is no sound or abnormal temperature, it indicates that the probe is broken. It is recommended to replace it with .
Youdaoplaceholder0 Setup or feature issues :
Youdaoplaceholder0 Radar switch not on : Check if the radar switch is on and reactivate it if necessary .
Youdaoplaceholder0 Blind spot area : The reversing radar has blind spot areas and cannot detect some areas. Try not to rely on the radar when reversing. If necessary, get out of the car to check the situation behind .
Youdaoplaceholder0 Obstacles too low or too thin : The radar may not be able to detect obstacles that are too low or too thin. This is not a radar fault, but rather its detection range is limited .
Youdaoplaceholder0 Other common causes :
Youdaoplaceholder0 Sensor damage : The sensor may be damaged due to physical impact, long-term exposure to harsh weather conditions, or aging, resulting in an inability to accurately detect surrounding objects .
Youdaoplaceholder0 Electronic faults : Short circuits, open circuits or instability in the vehicle's electrical system may cause the radar system to fail .
Youdaoplaceholder0 Software issues : Software errors or incompatibility with other vehicle systems may cause system failures. The software needs to be updated promptly .
Youdaoplaceholder0 Environmental interference : Strong electromagnetic fields, heavy fog, heavy rain and other adverse weather conditions may interfere with radar signals and affect their normal operation .
