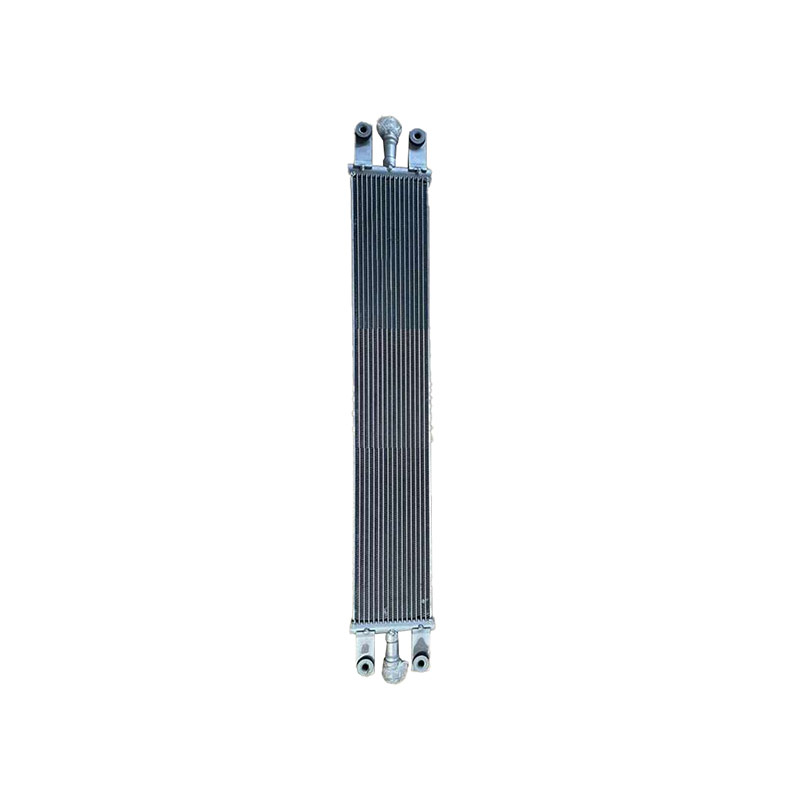

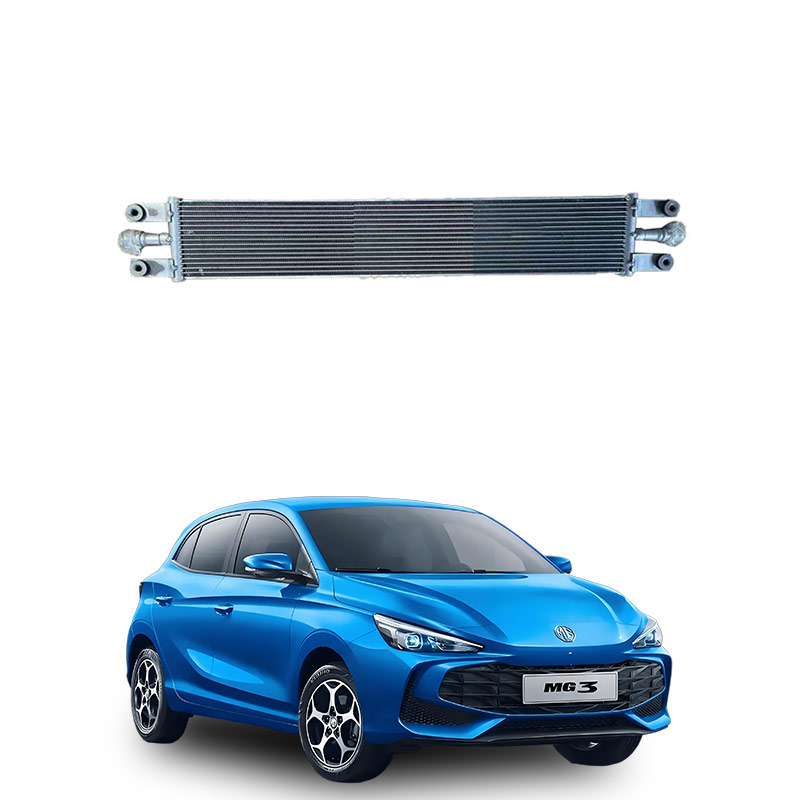

What is a car intercooler
The intercooler in a car is a component of the turbocharging system, used to cool the high-temperature air after turbocharging, thereby enhancing the intake efficiency and power output of the engine.
Basic definition and function
The intercooler in a car is a gas radiator specifically designed for turbocharged or supercharged engines. Its main function is to cool the high-temperature air compressed by the turbocharger. Its core functions include:
Youdaoplaceholder0 Lowering intake air temperature : The temperature of the pressurized air can reach over 100 ° C. The intercooler reduces the intake air temperature to around 50 ° C through cooling, avoiding the decrease in oxygen density caused by high temperature and thus improving the inflation efficiency.
Youdaoplaceholder0 Improve engine performance : For every 10 ° C reduction in intake air temperature, engine power can increase by 3% to 5%, while reducing the risk of knocking and lowering fuel consumption.
Types and structures
Intercoolers are classified into two types according to the cooling method:
Youdaoplaceholder0 Air-cooled : It uses the airflow or fan generated while the vehicle is in motion to dissipate heat. It is usually installed in front of the engine. It has high heat dissipation efficiency and a simple structure. It is the mainstream choice.
Youdaoplaceholder0 Water-cooled : Heat dissipation is achieved through the circulation of coolant, providing better constant temperature but with a smaller cooling effect. It is often used in high-performance models or engine layouts with limited space.
Aluminum alloy is mostly used in terms of material because it is lightweight and has excellent thermal conductivity.
Installation and maintenance points
Youdaoplaceholder0 Installation location : Commonly found between the supercharger and the intake manifold, it is divided into front-mounted (with good heat dissipation) and top-mounted (with fast response) types.
Youdaoplaceholder0 Maintenance requirements :
Youdaoplaceholder0 External cleaning : Regularly flush the heat sink vertically with a low-pressure water gun to prevent clogging.
Youdaoplaceholder0 Internal cleaning : Clean the internal sludge with an alkaline solution (such as 2% soda water) annually or during major overhauls to ensure the pipes are unobstructed.
Performance optimization and modification suggestions
When modifying the intercooler, it is necessary to balance the cooling efficiency and pressure loss. The key factors include:
Youdaoplaceholder0 Fin design : Different shapes affect heat dissipation efficiency and wind resistance.
Youdaoplaceholder0 Piping configuration : Shorten the pipe length and keep it straight. The outlet pipe diameter should be 10% thicker than the inlet pipe diameter to reduce air flow resistance.
Youdaoplaceholder0 Matching turbine model : For models such as Subaru Impreza, the appropriate intercooler should be selected based on the turbine number.
Youdaoplaceholder0 Summary : The intercooler is a key component for boosting the performance of turbocharged engines. It optimizes combustion conditions through efficient cooling and requires regular maintenance to ensure long-term stability.
The intercooler is a key component of turbocharged or supercharged engines, located between the turbocharger and the intake manifold. Its main function is to cool the high-temperature air compressed by the turbocharger (with a temperature of up to 80-200℃), and reduce the intake air temperature through heat exchange, thereby:
Youdaoplaceholder0 Increase air density : When cooled, the volume of air shrinks and the oxygen content increases, improving the inflation efficiency of the engine.
Youdaoplaceholder0 Increase power output : Experiments show that for every 10 ° C drop in the temperature of the pressurized air, engine power increases by 3% to 5%.
Optimize engine performance and reliability
Youdaoplaceholder0 Reduce heat load : High-temperature intake air intensifies the thermal stress in the engine combustion chamber. The intercooler cools down to prevent knocking, cylinder head deformation and other problems.
Youdaoplaceholder0 Lower emissions : Cooled air burns more completely, reducing nitrogen oxide (NOx) and black smoke emissions.
Youdaoplaceholder0 Improve fuel economy : Cold air mixes more evenly with fuel, improves combustion efficiency and reduces fuel consumption.
Special environmental adaptability
In high-altitude areas, intercoolers allow the use of compressors with a higher pressure ratio to compensate for power loss caused by thin oxygen and enhance the vehicle's power adaptability.
Type and design differences
Youdaoplaceholder0 Air-cooled (air-air cooler) : Commonly used in passenger cars, it cools pressurized air with outside air. It has a simple structure but is greatly affected by ambient temperature.
Youdaoplaceholder0 Water-cooled : Dissipates heat through coolant, is more efficient but more costly, and is mostly used in high-performance models.
Youdaoplaceholder0 Overhead intercooler (e.g. Subaru Impreza) : shortens the intake stroke but has slightly lower heat dissipation efficiency, and is better for balancing power and fuel consumption.
Youdaoplaceholder0 Failure impact : If the intercooler leaks, it will cause reduced power, increased fuel consumption, and even accelerated wear due to sand particles entering the cylinder.
If further optimization of the design is required, attention should be paid to the material standards (such as GB 3880 for aluminum alloy plates) and surface process requirements.
