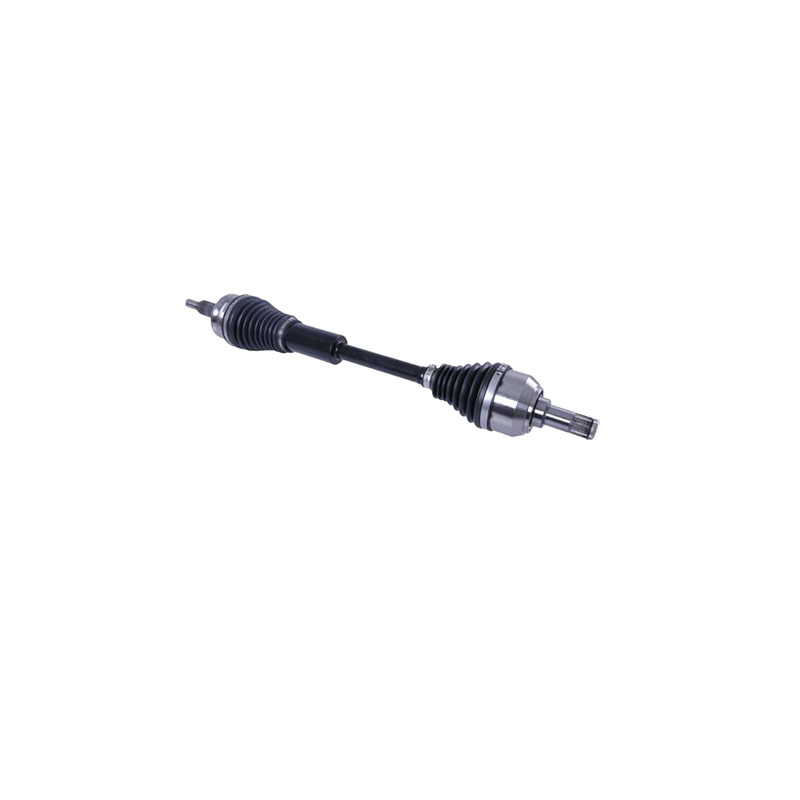

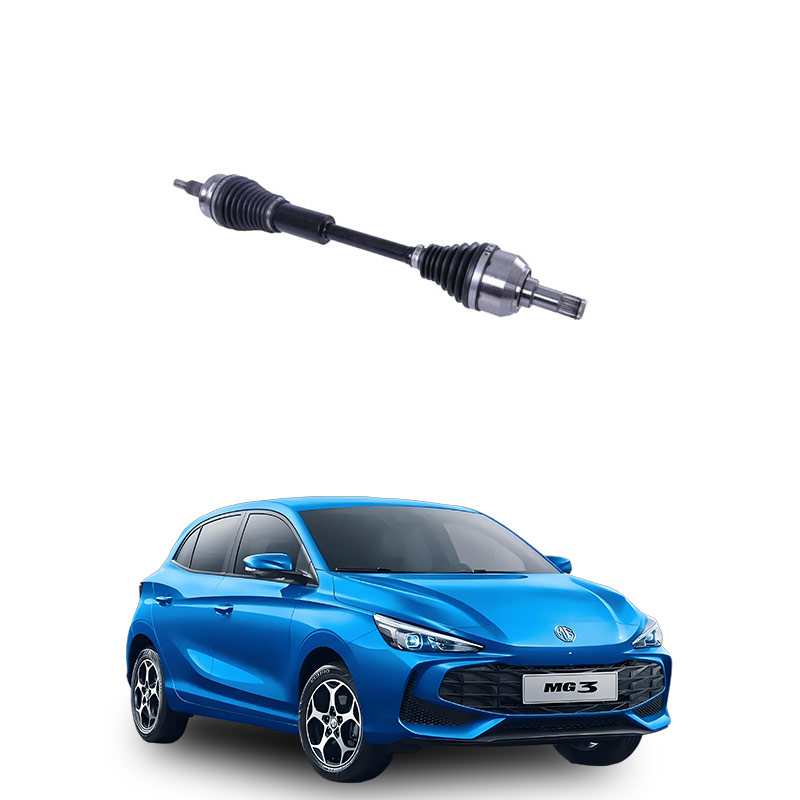

What is a car half shaft
The Driver Shaft of a car is the core component of the drive axle, responsible for transmitting the power distributed by the differential to the driving wheels (such as the front wheels or rear wheels), thereby driving the vehicle forward. Its core functions include:
Youdaoplaceholder0 Power transmission : Transmits the torque from the gearbox reducer to the wheels.
Youdaoplaceholder0 Steering fit : By using a universal JOINT (U/JOINT) to adapt to the Angle changes when the wheels turn, it ensures the stability of power transmission.
Structural and design features
Half shafts are usually designed as solid or hollow. Modern cars more often use hollow half shafts to optimize rotational balance. Its structure contains the following key parts:
Youdaoplaceholder0 Universal joint : There is one at the inner and one at the outer end, which is connected to the differential gear and hub bearing by splines, allowing the wheel to jump up and down and for flexible steering.
Youdaoplaceholder0 Support type : It is divided into fully floating, 3/4 floating and semi-floating, with the difference lying in the way it bears the load (such as torque, bending moment, etc.).
Type and applicable scenarios
According to vehicle requirements, half axles are mainly divided into three categories:
Youdaoplaceholder0 Full-floating : Transmits torque only, does not bear bending moment, is mostly used in commercial vehicles (such as trucks).
Youdaoplaceholder0 Semi-floating : Capable of both torque and bending moment, lightweight, commonly found in passenger cars.
Youdaoplaceholder0 3/4 Floating : between the two, less used.
Common faults and maintenance
The half shaft is prone to failure when subjected to torsional force and impact for a long time, such as:
Youdaoplaceholder0 Abnormal noise or breakage : Spline wear, shaft distortion or cracks in the blue disk.
Youdaoplaceholder0 Maintenance advice : Regularly check the universal joint seal to prevent oil leakage or abnormal noise.
The difference from drive shaft
Youdaoplaceholder0 Half shaft : Connects the differential to the drive wheel, located at the end of the wheel.
Youdaoplaceholder0 Drive shaft : Connects the engine to the differential, located in the middle of the chassis.
Youdaoplaceholder0 Summary : Half shafts are the "special forces" for power transmission in a car, and their design and reliability directly affect driving safety and performance.
The faults of the half shaft of a car are mainly manifested as abnormal noise, driving vibration, weakened power and other symptoms. The main causes include improper operation and poor lubrication.
Main symptoms
Youdaoplaceholder0 Abnormal noise : Metallic friction, clicking or collision sounds occur when turning or accelerating, especially on bumpy roads.
Youdaoplaceholder0 Shaking and imbalance : Violent shaking of the steering wheel or the body, or even swaying from side to side, when accelerating or driving at high speed.
Youdaoplaceholder0 Abnormal power transmission : Slow acceleration response, or even power interruption, manifested as "not moving when you step on the accelerator".
Youdaoplaceholder0 Abnormal tire : Uneven wear of the tire. In severe cases, it may cause the wheel hub to lose its roundness or the tire to come off at high speed.
Youdaoplaceholder0 Oil leak : Oil stains near the half shaft indicate damaged dust cover or seal.
Common causes
Youdaoplaceholder0 Improper operation :
When the vehicle is stuck, if the clutch is suddenly pressed at high speed, the handbrake is pulled sharply, or the vehicle is overloaded, the half bearing will be subjected to an overload impact.
Youdaoplaceholder0 Poorly lubricated :
The dust cover broke, allowing sand and mud to enter the ball cage and causing dry grinding damage to the universal joint.
Handling suggestions
Youdaoplaceholder0 Timely repair : If the above symptoms occur, go to a professional repair shop for inspection as soon as possible to avoid danger such as wheel detachment caused by driving at high speed.
Youdaoplaceholder0 Replacement principle : Minor damage (such as oil leakage from the dust cover) can be replaced locally. Severe deformation or breakage requires replacement of the entire half shaft. It is recommended to use original factory parts.
If you want to know more, keep reading the other articles on this site!
