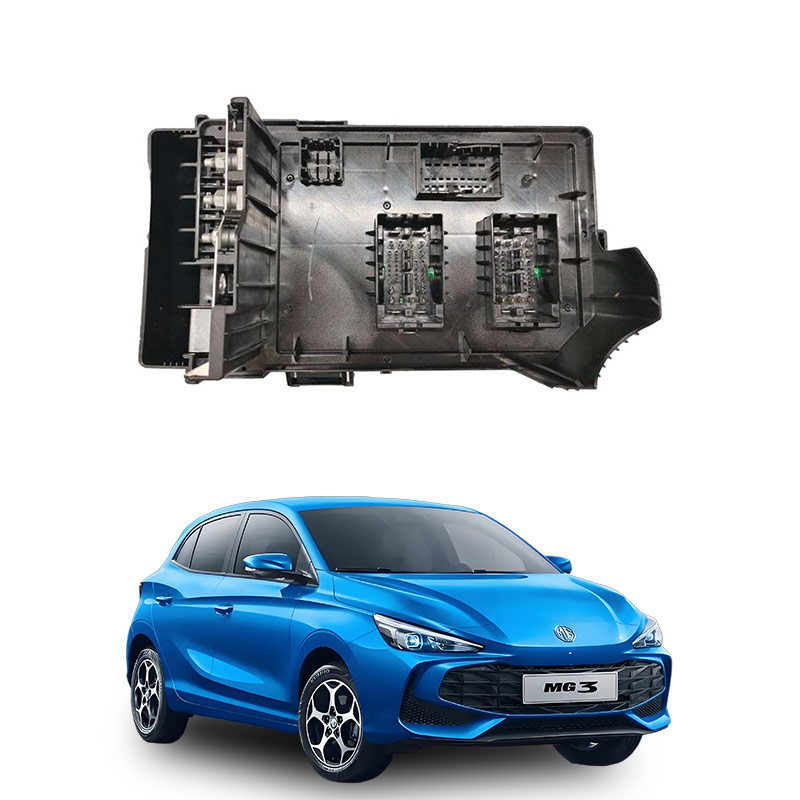

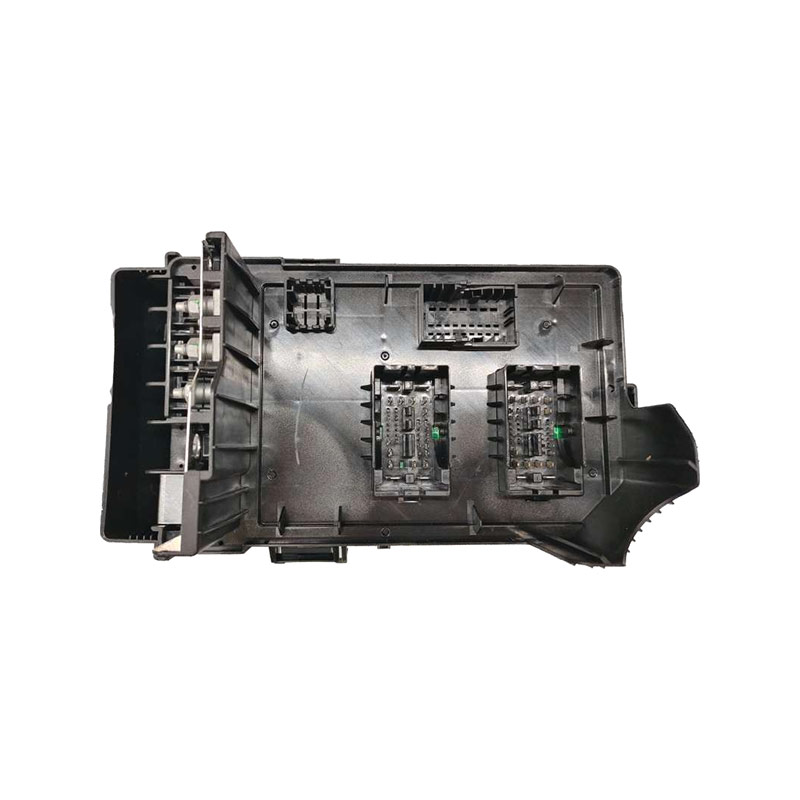

What is a car fuse box
A car fuse box is a box used to install car fuses, mainly for protecting and distributing the current in the car's circuit.
Automobile FUSE BOX definition and function
The automotive fuse box is an important component of the vehicle's electrical system, mainly used for installing and managing fuses. Its core functions include:
Youdaoplaceholder0 Overload protection : When the current in the circuit exceeds the rated value, the fuse will automatically blow to cut off the circuit and prevent electrical equipment from being damaged due to overload or short circuit.
Youdaoplaceholder0 Power distribution : The fuse box distributes power to various functional modules of the vehicle, such as headlights, air conditioning, wipers, etc., through fuses and relays, ensuring that each circuit has its own protection.
Youdaoplaceholder0 Easy to repair : If there is a malfunction in any electrical system of the vehicle, the problem can be quickly located and replaced by checking whether the fuse in the fuse box has blown.
The types and locations of car fuse boxes
Youdaoplaceholder0 Type : According to the size of the fuse installed, car fuse boxes can be divided into three types: small, medium and large.
Youdaoplaceholder0 Location : Car fuse boxes are usually located in two main locations:
Youdaoplaceholder0 Right of the engine compartment : Protects external electrical equipment such as ECU, windshield washer fluid system, headlights, horn and ABS circuit, etc.
Youdaoplaceholder0 Lower left side of the steering column : responsible for the normal operation of electrical appliances in the vehicle such as cigarette lighter, window lift system, electric seat and airbag, etc.
The use and maintenance of automotive fuse boxes
Youdaoplaceholder0 Replacing fuses : When replacing fuses, make sure the vehicle is turned off and all power sources are turned off, and choose fuses of the same current strength, and make sure the color, printed text and size match.
Youdaoplaceholder0 Troubleshooting : If your vehicle 's electrical system malfunctions, such as a cigarette lighter or headlight not working, the first step is to check if the fuse has blown. This is a crucial step in troubleshooting.
Youdaoplaceholder0 Connect additional devices : The fuse box can also be used to connect additional devices such as dash cams and ambient lights to avoid taking up cigarette lighter space.
Summary
The fuse box of a car is a core component of the vehicle's electrical system. It not only protects the safety of the circuit but also is responsible for power distribution and fault detection. Understanding its type, location and usage method can help car owners better maintain the vehicle's electrical system.
Protect the core components of automotive circuits and electrical equipment
The fuse box of a car is a key component of the vehicle's electrical system. Its main function is to achieve protection of circuits and electrical equipment, rapid fault location and safety management by centrally installing fuses. The following is a detailed analysis of its core functions and roles:
Circuit protection and overload fuse
When the circuit current is abnormal (such as a short circuit or overload), the fuse will blow to cut off the current, preventing damage to electrical equipment or causing a fire.
Fuses are classified by current capacity (such as sheet fuses 5-25A and slow-melting fuses 20-60A), and the amperage is distinguished by color for easy identification.
Centralized management and Fault location
The fuse box gathers the scattered fuses for centralized placement. The box cover is marked with a number and the corresponding electrical appliance icon (such as cigarette lighter, car lamp), which is convenient for quick troubleshooting.
Vehicles are usually equipped with multiple fuse boxes to protect different electrical appliances in different areas:
Youdaoplaceholder0 Fuse box in engine compartment : Protects external electrical appliances (such as ECU, headlights, ABS, etc.).
Youdaoplaceholder0 Cockpit fuse box : responsible for in-car electrical appliances (such as cigarette lighter, electric seat, airbag).
Materials and design enhance safety
It adopts high-temperature resistant materials (such as PBT engineering plastics, nylon, and bakelite) to adapt to different temperature environments.
Some of the designs are waterproof and fireproof. The intelligent fuse box also supports functions such as reverse current protection.
Maintenance convenience and standardization
When replacing a fuse, just find the corresponding position according to the number and operate with a special clamp. No complex tools are needed.
For imported models, please refer to the manual as the fuse layout may vary significantly.
Youdaoplaceholder0 Summary : The automotive fuse box ensures circuit safety and improves maintenance efficiency through integrated design, material optimization and functional zoning, and is an important guarantee for the stable operation of the vehicle's electrical system.
