What are the front horns of a car

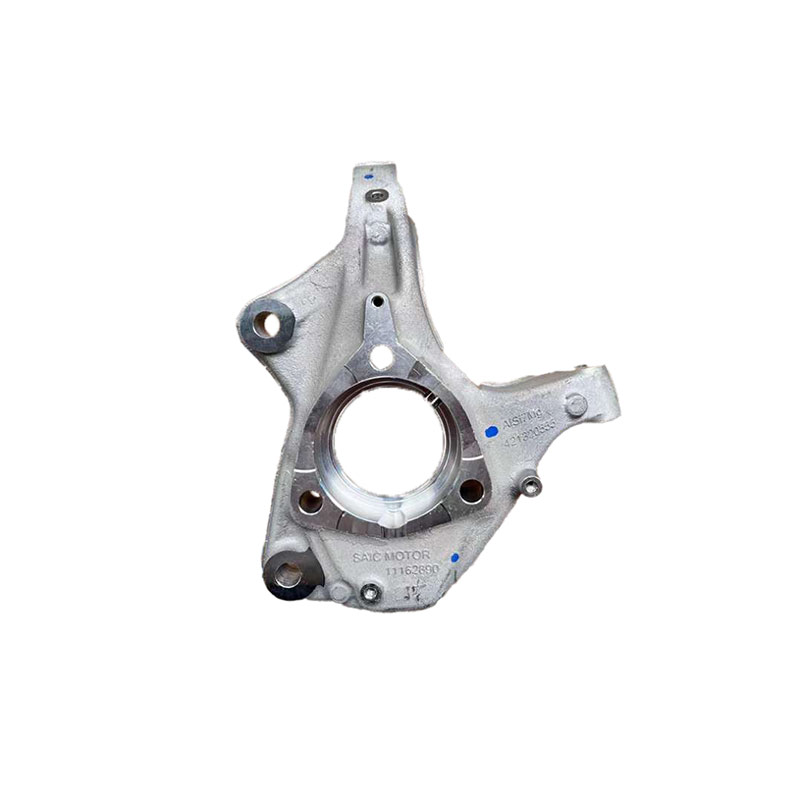

The steering knuckle (commonly known as "goat horn") is a key component in a car's steering axle that connects the wheels and the suspension. It is responsible for transmitting steering force and bearing the front load and impact.
The professional name for the front Knuckle of a car is Steering Knuckle , which is so named because of its resemblance to a knuckle. Here 's the core message:
Definitions and functions
Youdaoplaceholder0 Structural function : The steering knuckles are located at both ends of the front axle and have a fork-shaped structure. The upper and lower forks are connected to the axle through main pins, and the wheels are installed in the journal section. It is both the hinge of the steering system and the installation base of the suspension components.
Youdaoplaceholder0 Core features :
Transfer the driver's steering action to the wheels to ensure the sensitivity of the direction.
Bear the weight of the front part of the vehicle and the variable impact loads during driving (such as road bumps).
Support the front wheels to rotate around the main pin to achieve steering.
Youdaoplaceholder0 Material and strength requirements
High-strength ductile iron (such as QT400-15, QT450) is usually used to ensure tensile strength and impact resistance.
The design needs to meet the requirements of high rigidity and lightweight to cope with complex force conditions.
Common faults and effects
Youdaoplaceholder0 Cause of damage : mostly impact deformation or fatigue fracture of the material.
Youdaoplaceholder0 Fault manifestations :
Poor steering return and abnormal wear of the front wheels.
Abnormal noises from the vehicle body or damage to the wheel bearings.
In extreme cases, it may lead to the wheel falling off (such as an "axle breakage" accident).
Maintenance & Safety
Once the steering knuckle is found to be damaged, it needs to be repaired immediately; otherwise, it will reduce the rigidity of the vehicle body and the stability of steering.
Youdaoplaceholder0 Summary : The steering knuckle is a core safety component of the vehicle's steering and suspension system, and its strength and condition directly affect driving safety. If any abnormality occurs, it needs to be dealt with in time.
Youdaoplaceholder0 The main functions of the front knuckle (steering knuckle) include :
Youdaoplaceholder0 Ensure smooth and stable operation of the vehicle : The front knuckles (steering knuckles) of the vehicle are located at both ends of the I-beam at the front of the vehicle, responsible for steering, ensuring smooth and stable operation of the vehicle, and sensitively transmitting the direction of travel .
Youdaoplaceholder0 Bears load and supports the front wheels : It can transfer and bear the load from the front of the vehicle, support and drive the front wheels to rotate around the main pin, enabling the vehicle to steer smoothly .
Youdaoplaceholder0 High strength requirements : During driving, the horn is subjected to variable impact loads, and therefore its strength requirements are extremely high. Usually made of ductile iron such as QT400-15 or QT450 material to ensure durability and safety .
Youdaoplaceholder0 The consequences of damaged sheep horns include :
Youdaoplaceholder0 Abnormal wear of the front wheels : If the horns are deformed, it may cause abnormal wear of the front wheels .
Youdaoplaceholder0 Poor steering return : Damage to the horn may cause poor steering return, affecting driving stability and safety .
Youdaoplaceholder0 Wheel bearing damage : Horn problems can also cause wheel bearing damage .
Youdaoplaceholder0 Abnormal noises from the vehicle body : Damaged horns may cause abnormal noises from the vehicle body, affecting the driving experience .
Youdaoplaceholder0 Front knuckle failure means that the front knuckle (also known as the steering knuckle) of a motor vehicle is damaged or fails. The front knuckle is an important component of the vehicle's steering system, located at both ends of the I-beam at the front of the vehicle. Its main function is to transfer and bear the load at the front of the vehicle, support and drive the front wheels to rotate around the main pin, enabling the vehicle to steer. The front horn also needs to withstand the variable impact from the road surface, so higher requirements are placed on its mechanical properties and shape .
The manifestations of the front horn malfunction
Youdaoplaceholder0 Tire deviation and vehicle veering : Damage to the front horns can cause inaccurate four-wheel alignment, which in turn leads to tire deviation, resulting in unstable driving and vehicle veering .
Youdaoplaceholder0 Brake system affected : Damage to the front horn may affect the brake system, resulting in poor braking response or failure of braking function .
Youdaoplaceholder0 Suspension system damage : The front horn is part of the suspension system, and its damage will affect the stability of the entire suspension system, which may result in suspension system damage .
Youdaoplaceholder0 Vehicle vibration : Due to the unstable suspension system, the vehicle may experience obvious vibration during driving .
Youdaoplaceholder0 Steering deviation : Damage to the front horn can cause steering instability and make it easy to deviate from the intended driving path .
Youdaoplaceholder0 Reduced braking efficiency : Damage to the front horn may affect the braking system, resulting in poor braking response or failure of braking function .
Youdaoplaceholder0 Vehicle vibration in motion : Instability of the suspension system can cause a significant vibration sensation when the vehicle is in motion .
The causes of the front horn malfunction
Front horn failure is usually caused by the following reasons:
Youdaoplaceholder0 Violent impact : The front horn is prone to deformation or damage after being subjected to violent impact.
Youdaoplaceholder0 Long-term wear : The front horn may develop wear or fatigue cracks due to various impacts and loads during long-term use.
Youdaoplaceholder0 Material defect : The front horn is usually made of ductile iron. If there is a defect in the material, it can also cause the front horn to fail prematurely.
Inspection and maintenance suggestions
Youdaoplaceholder0 Four-wheel alignment test : When a problem with the front horns is suspected, a four-wheel alignment test can be used to initially determine if there is a problem. If the four-wheel alignment is off, the front horns may need to be checked further .
Youdaoplaceholder0 Professional inspection : Carefully inspect the condition of the front horn on the lift platform. If any damage is found, repair or replace it in time .
Youdaoplaceholder0 Regular maintenance : Regular inspection and maintenance of the front horn to ensure it is in good condition and strong is an important measure to ensure stable driving and responsive steering of the vehicle .
