The function of the car front door window lifter assembly
The main function of the CAR front door window lifter assembly is to control the up and down of the window glass, providing convenient window opening and closing function for drivers and passengers . It converts electrical energy into mechanical energy through the motor, drives the gear or chain to move, and then drives the slider connected to the window glass to move on the guide rail to achieve the smooth up and down of the glass .
The composition and working principle of the glass lifter
The automotive window regulator assembly is usually composed of the following parts: control device, transmission device, lifting device and balance spring, etc. These parts work together to ensure the smooth lifting and lowering of the car window glass. Specifically, when the window control button on the driver 's seat or door is pressed, the current is transmitted through the circuit to the motor of the window lifter, which converts electrical energy into mechanical energy to drive the gear or chain to move the slider on the rail, thereby raising or lowering the glass .
Common faults and maintenance suggestions
During the use of a window regulator, some common faults may occur, such as no response from the car window after pressing the button, jamming or abnormal noise during the lifting and lowering process, etc. These faults may be caused by motor failure, circuit problem (such as a blown fuse, short circuit or open circuit), lack of lubrication of the rail or wear and deformation of the slider, etc. .
When conducting repairs, it is recommended that car owners choose reliable quality parts and avoid having the fault situation exaggerated by unscrupulous repair shops. Many simple faults can be resolved by cleaning the rails, adding lubricant, or replacing worn parts instead of the entire lifter assembly .

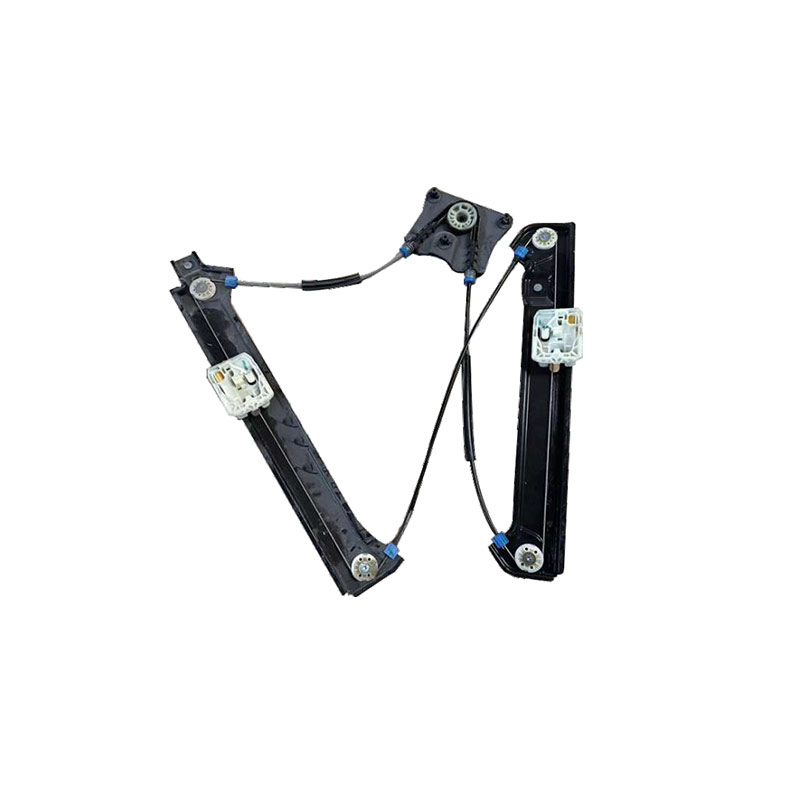

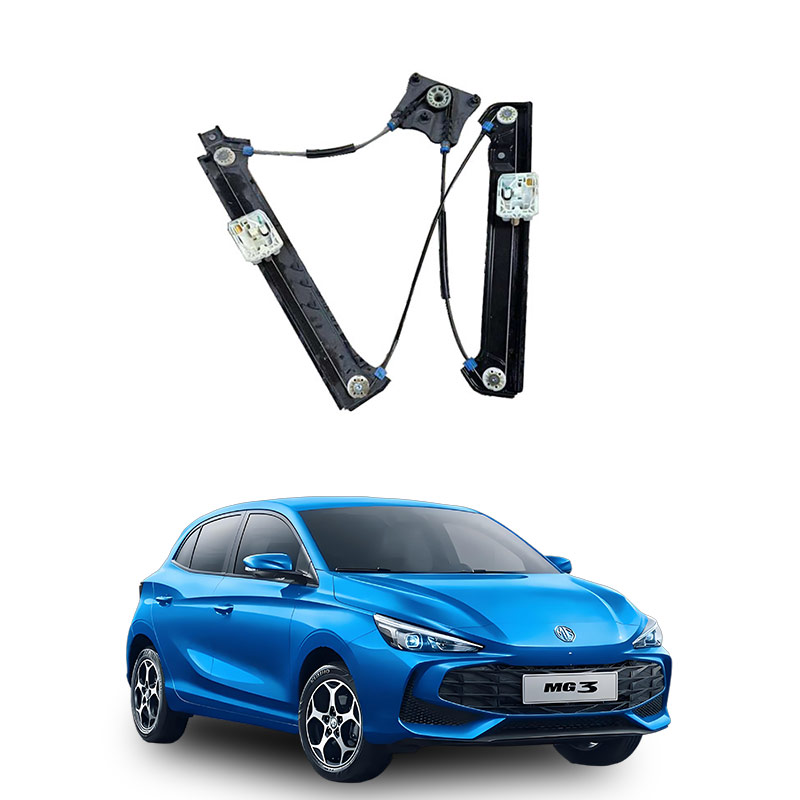

Automobile front door glass lifter assembly IS automobile door and window glass lifting DEVICE, mainly consisting of motor, reducer, guide rope, guide plate, glass mounting bracket and other components. The working principle is that the motor drives the reducer to output power, through the active arm and the driven arm or pull the wire rope to move the glass mounting bracket, forcing the window glass to move up or down in a straight line .
Structural composition
The front door window lifter assembly of a car includes the following key components:
Youdaoplaceholder0 Electric motor : provides power source.
Youdaoplaceholder0 Reducer : Reduces the speed of the motor and increases the torque.
Youdaoplaceholder0 Guide wire or wire rope : transmits power.
Youdaoplaceholder0 Guide plate : Ensure smooth lifting and lowering of the glass.
Youdaoplaceholder0 Glass mounting bracket : Fixes the glass and guides its movement .
Working principle
When the driver or passenger presses the up or down button of the power window, the circuit is connected and the motor starts to operate. The power of the motor, after being processed by the reducer, through the transmission device (such as wire rope or tooth belt) drive the glass bracket in the guide rail up or down to achieve precise control of the position of the window glass .
Type
There are various types of car front door window lifters. Common ones include:
Youdaoplaceholder0 Arm window regulator : Divided into single-arm type and double-arm type, single-arm type is simple in structure but less stable, suitable for rear door Windows of small cars; The double-arm type has better balance and carrying capacity, suitable for front door Windows .
Youdaoplaceholder0 rope-wheel type glass regulator : Through the motor drives the reducer, the steel wire is wound on the pulley, which drives the glass bracket to move up and down. Compact structure and low noise .
Youdaoplaceholder0 Flexible shaft type glass regulator : Relies on a flexible shaft to transmit power, suitable for long-distance drive and vehicles with special structures .
