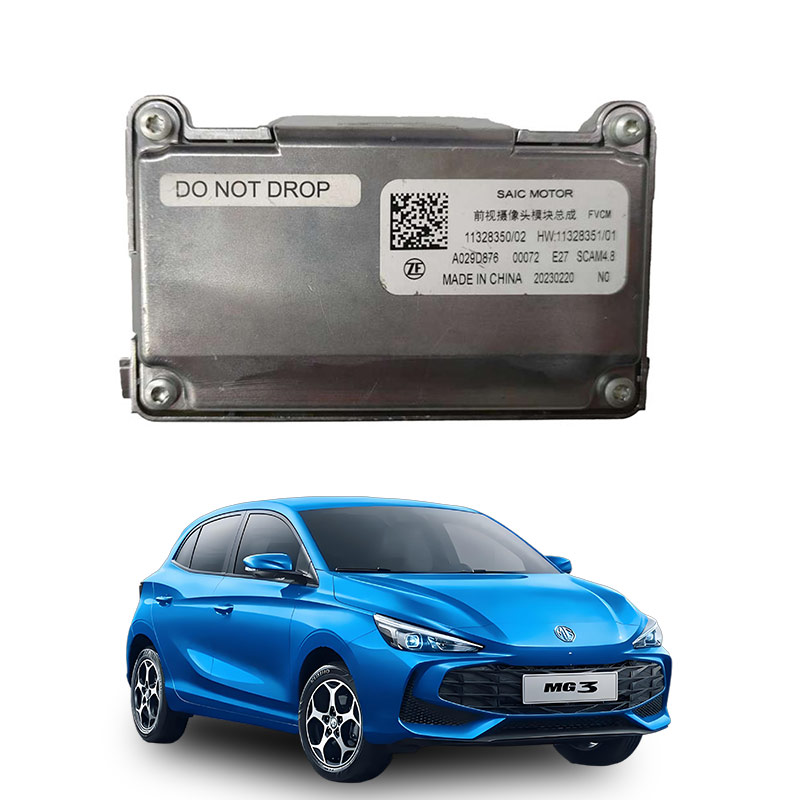

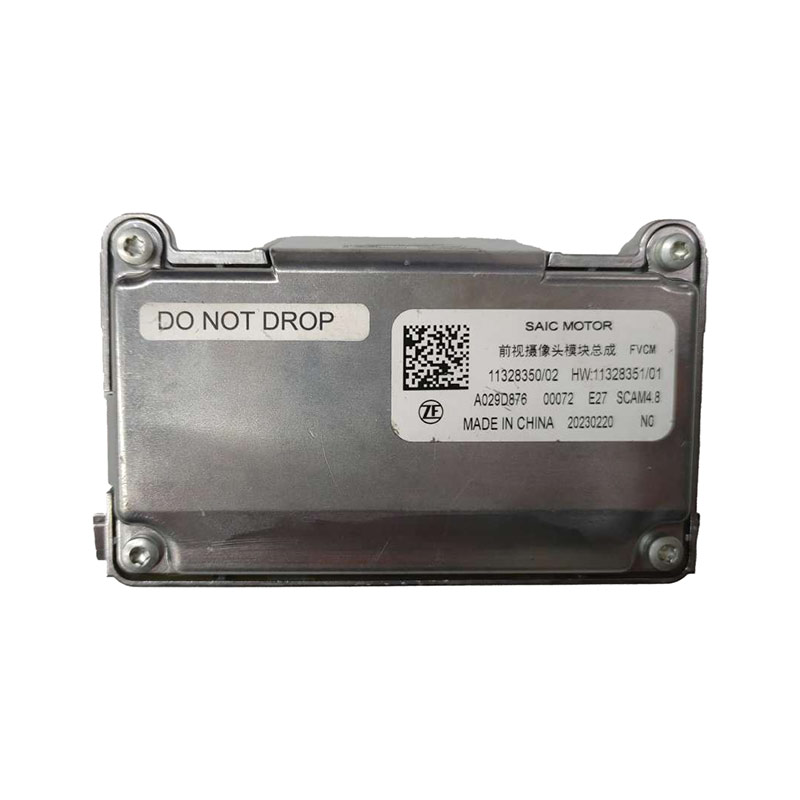

What is the front camera module of a car
Youdaoplaceholder0 Front camera module refers to the camera and related components installed at the front of a vehicle, which are mainly used to collect image information of the front and are typically used for functions such as autonomous driving, collision warning, lane departure warning, and traffic sign recognition.
Structural composition
The front camera module of a car mainly includes the following parts:
Youdaoplaceholder0 Lens assembly : including optical lenses, filters, protective films, etc., for focusing light and filtering out unwanted light bands.
Youdaoplaceholder0 Image sensor : Converts optical signals into electrical signals, usually a CMOS or CCD sensor.
Youdaoplaceholder0 Image signal processor : Processes image signals to extract useful information.
Youdaoplaceholder0 Connector : Connects cameras and other electronic devices such as in-vehicle computers or displays.
Youdaoplaceholder0 Circuit board substrate : Responsible for transmitting electrical signals, usually including the PCB board and the ribbon cable connector .
Working principle
The camera module focuses the light through the lens group, the color filter filters out the excess light bands, the image sensor converts the light signal into an electrical signal, the image signal processor processes these electrical signals, and finally transmits the processed image information to the on-board computer or other display devices. The whole process involves complex image processing algorithms to ensure that the image information obtained is accurate .
Application scenarios
The automotive front camera module is mainly used in the following scenarios:
Youdaoplaceholder0 Collision warning : Detects obstacles ahead and gives early warning to avoid collisions.
Youdaoplaceholder0 Lane Departure warning : Monitors whether a vehicle has deviated from its lane and promptly alerts the driver.
Youdaoplaceholder0 Traffic sign recognition : Recognizing traffic signs on the road to help drivers follow traffic rules.
Youdaoplaceholder0 Adaptive cruise control : Automatically maintains a safe distance and speed on highways, reducing the driver's burden .
The main functions of the CAR front camera module include the following aspects :
Youdaoplaceholder0 Advanced Driver Assistance Systems (ADAS) : The front camera is one of the core components of ADAS for forward driver assistance functions such as forward collision warning (FCW), lane Departure warning (LDW), adaptive cruise control (ACC), etc. These features enhance driving safety and comfort .
Youdaoplaceholder0 Parking assistance and rearview camera : The front camera is often used in conjunction with the rearview camera to provide rearview camera and parking assistance. Capture the rear of the vehicle through cameras to help drivers better control the vehicle in reversing and parking and reduce collision risk .
Youdaoplaceholder0 Pedestrian detection and traffic sign recognition : The front camera can identify pedestrians and other obstacles ahead, providing a pedestrian detection function. In addition, it can recognize traffic signs and help drivers better understand traffic rules and conditions .
Youdaoplaceholder0 HOW the front camera works and is important :
The front camera captures the image of the road ahead through the lens, then converts the optical signal into an electrical signal. After being processed by the image signal processor, it is transmitted to the on-board computer for processing and analysis. Its high resolution and clear field of view make the front camera a key part of ADAS systems that help drivers avoid dangerous situations such as collisions and lane departure .
Youdaoplaceholder0 Technical specifications and performance requirements for front camera :
The technical specifications of the front camera include field of view (FOV), detection distance, resolution, signal-to-noise ratio, frame rate and dynamic range, etc. High-resolution cameras can provide clearer images, which helps to identify obstacles and traffic signs ahead more accurately. In addition, the working environment of the CAMERA needs to withstand extreme conditions such as high temperature, low temperature, rain and fog, to ensure stable operation in different environments .
