What is the bracket in the front bumper
The component that connects the bumper to the vehicle body
The front bumper bracket is a component that connects the bumper to the vehicle body. Its main function is to absorb the impact force during a collision, protect the occupants and the vehicle structure, and at the same time support the bumper and adjust the gap between it and components such as the headlights.
Detailed explanation
Youdaoplaceholder0 Definition and Function

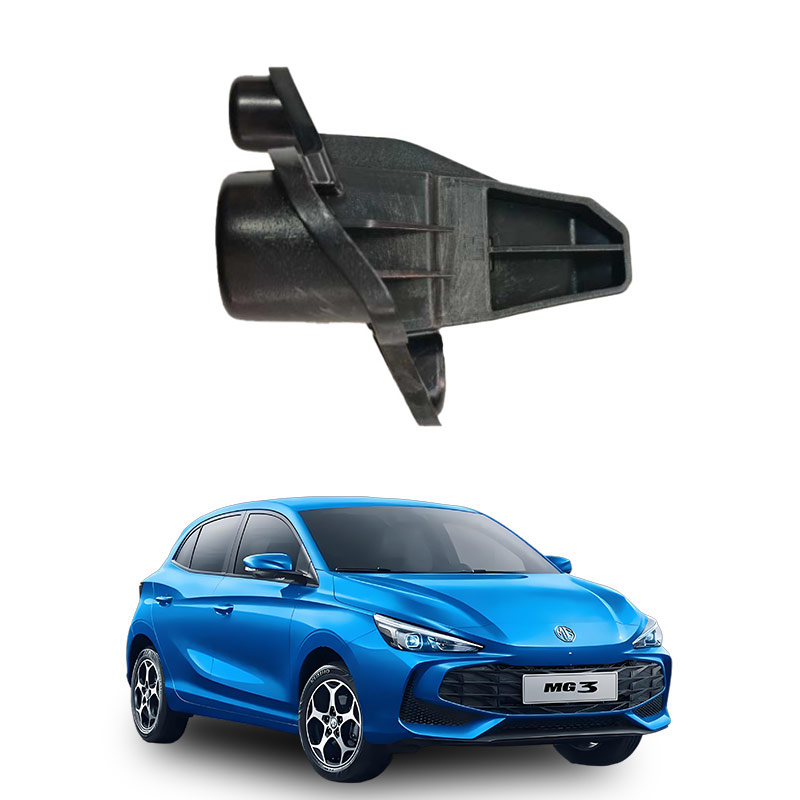

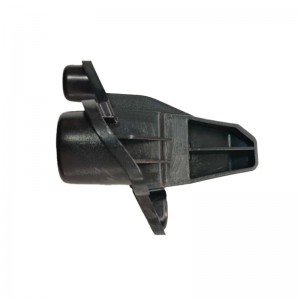

The front bumper middle bracket is a connecting component between the bumper and the vehicle body. It is a professional term in the field of mechanical engineering. Its core functions include:
Youdaoplaceholder0 Energy-absorbing buffer : Disperses impact force in the event of a collision through crumpling deformation (such as an energy-absorbing bulge design) to reduce harm to occupants inside the vehicle;
Youdaoplaceholder0 Structural support : Fix the bumper and ensure that it is parallel to the clearance of components such as the headlights to improve assembly accuracy and aesthetics;
Youdaoplaceholder0 Lightweighting and platformization : The split design reduces weight, lowers costs and ADAPTS to the needs of different vehicle models.
Youdaoplaceholder0 Design and improvement
Most traditional brackets are of integrated metal structure, which have problems such as heavy weight and difficult adjustment.
The new type of bracket adopts a split design (such as the clamping part and the positioning part), combined with a error-proof mechanism, to improve the assembly efficiency.
Some of the designs optimize space utilization through arc-shaped structures or avoidance slots, taking into account both safety and aesthetics.
Youdaoplaceholder0 Materials and properties
In the early days, steel was the main material, but now high-strength plastics are mostly used to balance the demands of lightweight and protection.
It needs to have characteristics such as high-temperature resistance and pressure resistance to ensure stability during collisions.
Youdaoplaceholder0 Summary : The front bumper bracket is a key component of a vehicle's passive safety, and its design directly affects collision protection and manufacturing cost.
Youdaoplaceholder0 The main function of the bracket in the front bumper is to absorb and mitigate the external impact force when the vehicle is hit, thereby protecting the occupants and the safety of the vehicle .
Specifically, the front bumper bracket, through its structural design, can absorb some of the impact energy in the event of a collision, reduce the impact on the interior of the vehicle, reduce the degree of injury to the occupants in .
Structural design and function
The bracket in the front bumper usually includes an upper body mounting plate, an energy-absorbing structure and a lower body mounting plate. Energy-absorbing structures are typically designed as circumferentially closed, with the middle part protruding forward. When the front bumper of the vehicle deforms into the interior due to a collision, the energy-absorbing protrusions will collapse and deform, thereby absorbing some of the collision energy .
In addition, the upper body mounting plate is closely attached to the upper plate of the front bumper to ensure the stability of the bumper structure and prevent the upper plate from sagging under force. The lower body mounting plate is fixed beneath the energy-absorbing structure, together forming a solid support system .
Installation method and relationship with other components
The front bumper bracket is fastened to the body by bolts, with several upper mounting holes on the upper mounting plate and several lower mounting holes on the lower mounting plate, and the bracket is fastened to the body by bolts through these holes .
In addition, the design also takes into account the installation space of other components, such as avoidance grooves, which reflects the meticulous handling of details. The curved middle frame design is not only powerful, but also fits closely with the interior structure of the vehicle, enhancing overall harmony and beauty .
The causes of BRACKET failure in FRONT BUMPER mainly include the FOLLOWING:
Youdaoplaceholder0 Loose fixing screws : Loose screws that fix plastic parts can cause the bumper to loosen .
Youdaoplaceholder0 Damage caused by collision : A collision can cause the bumper to loosen, especially damage or loosening of the bumper clasp .
Youdaoplaceholder0 Quality issue : There is a quality problem with the bumper itself, such as material aging, deformation, etc. Youdaoplaceholder2.
Youdaoplaceholder0 External force influence : Over time, the rubber part of the bumper wears out, which can also cause loosening .
Youdaoplaceholder0 Design issues : In some cases, poor design or damaged accessories can also cause a gap between the bumper and the body, affecting its stability .
Youdaoplaceholder0 The function of the bracket in the front bumper includes:
Youdaoplaceholder0 Support and fixation : The bracket serves as the main support structure for the bumper, ensuring the stability and appearance integrity of the bumper .
Youdaoplaceholder0 Energy absorption : In an accidental collision, the support can absorb and disperse the impact force, reducing its impact on the interior of the vehicle and protecting the safety of occupants .
Youdaoplaceholder0 Aesthetics : The design of the bracket should not only be practical but also closely fit the overall structure of the vehicle to enhance its aesthetics .
Youdaoplaceholder0 Solution to bracket fault in front bumper :
Youdaoplaceholder0 Fastening screw : If the screw is loose, use a screwdriver to tighten it .
Youdaoplaceholder0 Replace clips or brackets : If the clips are damaged or loose, replace them with new clips or brackets .
Youdaoplaceholder0 Professional repair : If the malfunction is caused by a collision or quality issue, it is recommended to have it inspected and repaired at a professional auto repair shop .
