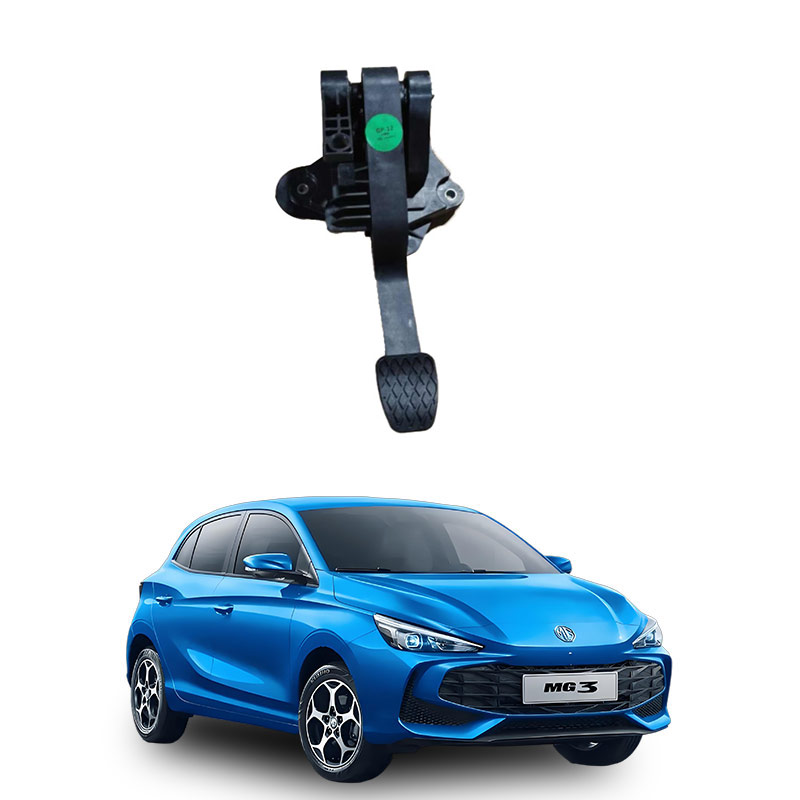

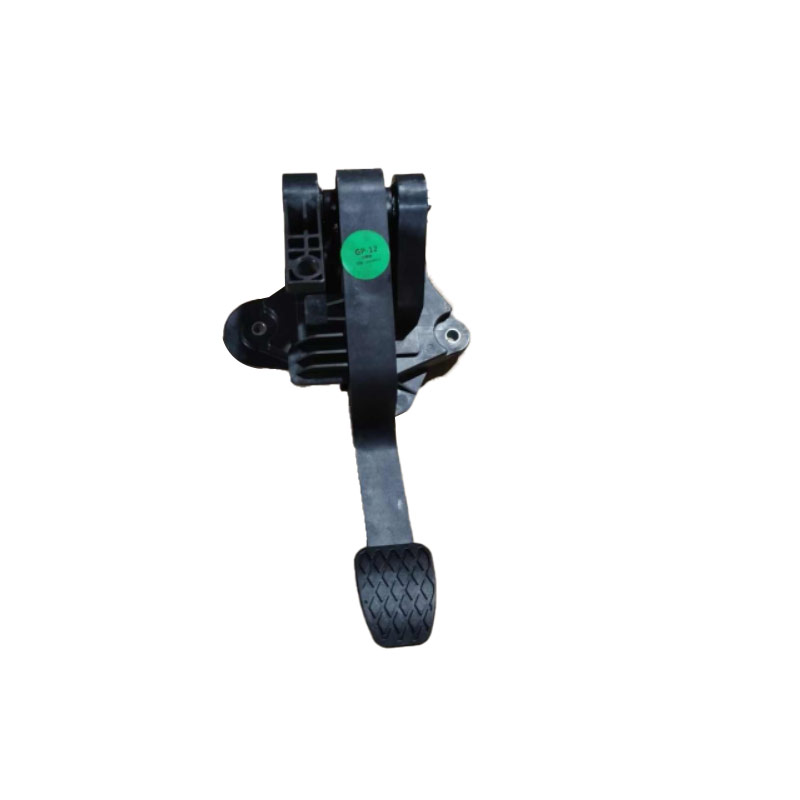

The function of the car clutch pedal
The core function of the clutch pedal in a car is to control the connection and disconnection of power between the engine and the transmission system, to ensure a smooth start, smooth gear shifting and protection of the transmission system in an emergency.
Detailed explanation of main functions
Youdaoplaceholder0 Power engagement and disengagement
The clutch pedal directly controls the power transmission between the engine and the transmission through the driver's operation. When the pedal is depressed, the clutch disengages and the power is cut off. When released, the power restores the connection. This is the most fundamental function of the clutch, providing a basis for other operations.
Youdaoplaceholder0 Ensure a smooth start
When starting, slowly release the pedal and coordinate with the accelerator to gradually transfer the engine power to the wheels, avoiding sudden forward acceleration or stalling of the vehicle. For instance, in the semi-engaged state, the clutch friction plate allows for a power soft connection to achieve a smooth transition.
Youdaoplaceholder0 For smooth shifting
Before shifting gears, press the pedal to cut off the power, reduce the gear shock and make the gear shift smoother. After releasing the pedal, reconnect the power to ensure stable driving of the vehicle after gear shifting.
Youdaoplaceholder0 To prevent the drive system from overloading
In case of emergency braking or sudden resistance, the clutch can cut off the power or limit the torque borne by the transmission system through sliding friction, avoiding damage to mechanical components. For example, when braking sharply downhill, the clutch can prevent the engine from stalling and enhance the braking effect.
Youdaoplaceholder0 Protect the engine and powertrain
When shifting gears, if the engine and transmission speeds are not synchronized, the clutch can buffer the shock, preventing gear wear or the engine from overloading.
Operation skills
"Two fast two slow One pause" : When the pedal is lifted, the initial and final stages are fast, the intermediate linkage point is slow and the pause is short, in coordination with the accelerator to achieve smooth engagement.
Youdaoplaceholder0 Engagement point determination : When the vehicle vibrates slightly or starts to move, it is in a semi-engaged state. The pedal position needs to be stabilized until fully engaged.
Youdaoplaceholder0 Summary : The clutch pedal is a key control component for driving a manual transmission vehicle. Its functions revolve around the dynamic adjustment of power transmission and directly affect driving safety and comfort.
The height of the clutch pedal of a car is adjustable depending on the type of clutch: mechanical clutches are usually adjustable, hydraulic clutches are usually not adjustable or have limited adjustment range .
Specific adjustment methods are classified and explained
Youdaoplaceholder0 Mechanical clutch (pull wire type)
Youdaoplaceholder0 Adjustability : Height adjustment can be achieved by adjusting the tightness of the lead wire or the length of the screw.
Youdaoplaceholder0 Operation method :
Youdaoplaceholder0 Pull wire adjustment : Open the engine compartment, find the adjusting nut at the end of the clutch pull wire, loosen it counterclockwise, then turn the screw to adjust the stroke, and after adjustment, lock the nut.
Youdaoplaceholder0 Adjust under the pedal : Locate the lever on the clutch master cylinder bracket under the driver's seat, loosen the positioning nut and rotate the lever to shorten or extend the length to change the pedal height.
Youdaoplaceholder0 Adjustment objective : Usually keep the free travel within 10-15mm to ensure clear engagement points and smooth gear shifting.
Youdaoplaceholder0 Hydraulic clutch
Youdaoplaceholder0 Adjustability : Most models are designed to be non-adjustable, but a few can be fine-tuned by adjusting the pedal spring or the master cylinder push rod.
Youdaoplaceholder0 Operation method (adjustable models only) :
Locate the adjusting bolt under the pedal, loosen it with an Allen wrench, and then adjust the length of the spring to change the position of the pedal.
It should be noted that the hydraulic system is sensitive to air. After adjustment, it is necessary to check whether there is air intake in the oil circuit.
Adjustment precautions
Youdaoplaceholder0 Safe operation : Before adjustment, turn off the engine, apply the handbrake and shift into neutral to avoid accidental contact causing danger.
Youdaoplaceholder0 Test verification : After adjustment, repeatedly step test to ensure no lag, play or abnormal noise.
Youdaoplaceholder0 Wear judgment : If the appropriate travel cannot be achieved after adjustment, the clutch three-piece set (friction plate, pressure plate, release bearing) may need to be replaced.
Youdaoplaceholder0 Summary : To adjust the height of the clutch pedal, the type of clutch should be distinguished first. The mechanical type can be operated independently, while the hydraulic type is recommended to be handled by a professional to avoid damaging the system.
