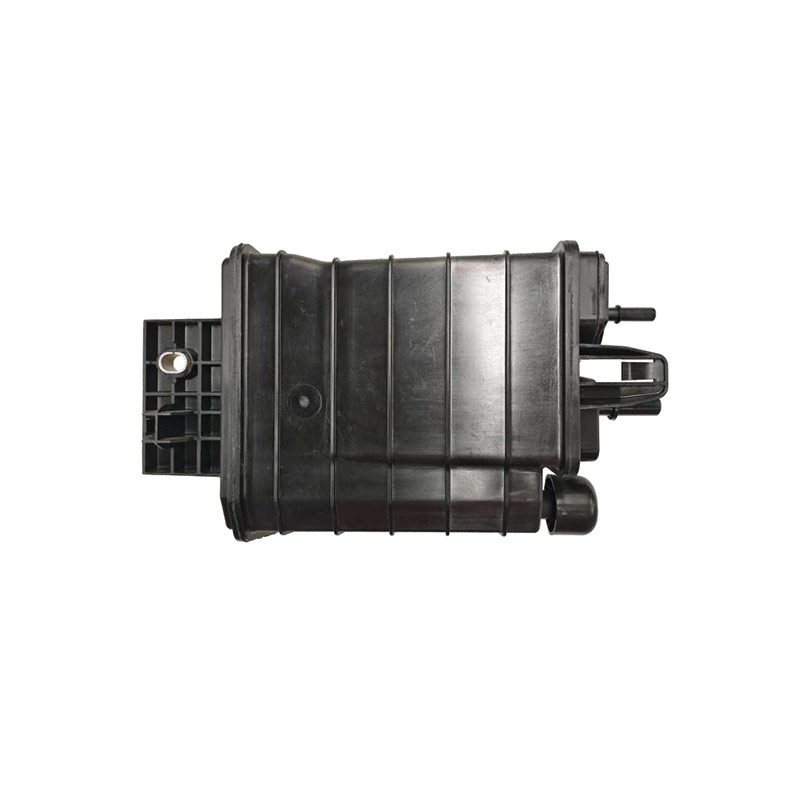

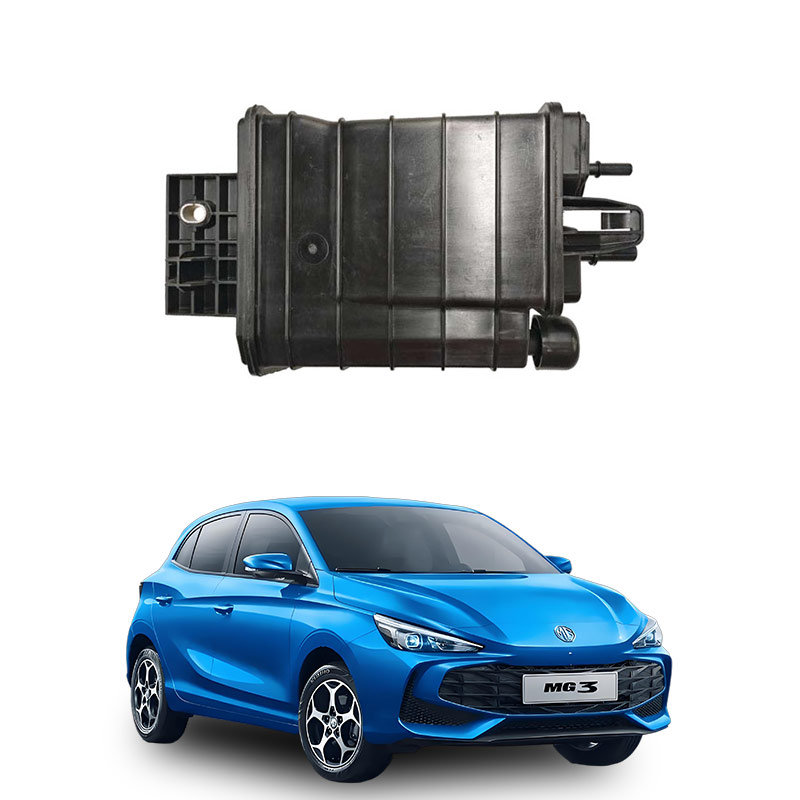

What is a car carbon canister
The carbon canister in a car is a key component of the gasoline evaporation control system (EVAP), used to adsorb the fuel vapor evaporated from the fuel tank and introduce it into the engine for combustion, featuring both environmental protection and fuel-saving functions
Basic definition and function
The automotive carbon canister (carbon canister) is a core component of the gasoline evaporation control system (EVAP system), filled with activated carbon inside. Its main functions include:
Youdaoplaceholder0 Adsorb fuel vapor : Gasoline is volatile. The carbon canister adsorbs the vapor produced by the fuel tank through activated carbon to prevent it from being directly discharged into the atmosphere and polluting the environment.
Youdaoplaceholder0 Recycled fuel : When the engine starts, the solenoid valve opens and the fuel vapor stored in the carbon canister is drawn into the intake manifold to participate in combustion, improving fuel efficiency.
Structure and WORKING principle
Youdaoplaceholder0 Location : Usually installed between the fuel tank and the engine, and connected by a pipe.
Youdaoplaceholder0 Workflow :
Youdaoplaceholder0 Adsorption stage : After flameout, steam from the tank enters the carbon canister and is adsorbed by activated carbon.
Youdaoplaceholder0 Desorption stage : While the engine is running, the negative pressure in the intake manifold sucks steam into the combustion chamber while the activated carbon is regenerated.
Importance
Youdaoplaceholder0 Environmental requirements : Since 1995, China has made it mandatory for new vehicles to be equipped with EVAP systems to reduce volatile organic compounds (VOCs) emissions.
Youdaoplaceholder0 Economy : By recovering fuel vapor, fuel consumption can be reduced by about 2 to 5 percent.
Maintenance and replacement advice
Youdaoplaceholder0 No need to replace regularly : The carbon canister has a longer lifespan and needs to be replaced only when it is clogged or faulty (such as frequent gun jumping while refueling or unstable engine idling).
Youdaoplaceholder0 Properties of activated carbon : The activated carbon in the canister can cyclically adsorption-desorption, unlike household disposable activated carbon.
Youdaoplaceholder0 Summary : Carbon canisters achieve both environmental protection and energy conservation by efficiently adsorbing and recycling fuel vapor, and are an essential part of modern automobiles.
The function of a car carbon canister is to collect and store fuel vapor, prevent it from escaping into the atmosphere, reduce emissions and fuel consumption through re-combustion, and balance the pressure in the fuel tank at the same time.
The core function of the car carbon canister
Youdaoplaceholder0 Collect and store fuel vapor
The carbon canister adsorbs the volatile gasoline vapor in the fuel tank through the activated carbon particles filled inside, preventing it from being directly discharged into the atmosphere. This process is particularly crucial when the engine is turned off, as at this time the fuel vapor will mix with fresh air and be temporarily stored in the carbon canister.
Youdaoplaceholder0 Reducing exhaust emissions and environmental protection effects
When the engine restarts, the fuel vapor in the carbon canister is drawn into the intake manifold through the solenoid valve to participate in combustion, thereby reducing the emission of harmful gases such as carbon monoxide and hydrocarbons.
This mechanism is the core part of the Gasoline Evaporation Control System (EVAP) and complies with environmental protection regulations.
Youdaoplaceholder0 Improve fuel economy
By recycling fuel steam, carbon canisters reduce fuel waste and indirectly improve fuel efficiency. Some studies show that this design can save approximately 1% to 2% of fuel consumption.
Youdaoplaceholder0 Balance the tank pressure
The carbon canister, by adsorbing the fuel vapor, avoids the safety hazards caused by excessive pressure inside the fuel tank (such as high-temperature evaporation), replacing the traditional fuel tank cap pressure-limiting valve design.
Other auxiliary functions
Youdaoplaceholder0 Fire safety : To prevent the accumulation of flammable gases in vehicles and reduce the risk of fire.
Youdaoplaceholder0 System stability : The intermittent opening and closing of the carbon canister solenoid valve is controlled by the engine computer to ensure the coordination of steam recovery and combustion.
Precautions
Youdaoplaceholder0 Maintenance advice : Although the carbon canister is not a consumable part, the air inlet and filter screen should be checked regularly for clogging to avoid affecting performance.
Youdaoplaceholder0 Refueling habits : Avoid overfilling to prevent liquid gasoline from entering the carbon canister and damaging the activated carbon.
Youdaoplaceholder0 Summary : Carbon canning, through multi-link collaboration, achieves the combined benefits of environmental protection, energy conservation and safety, and is an indispensable component in modern automotive fuel systems.
