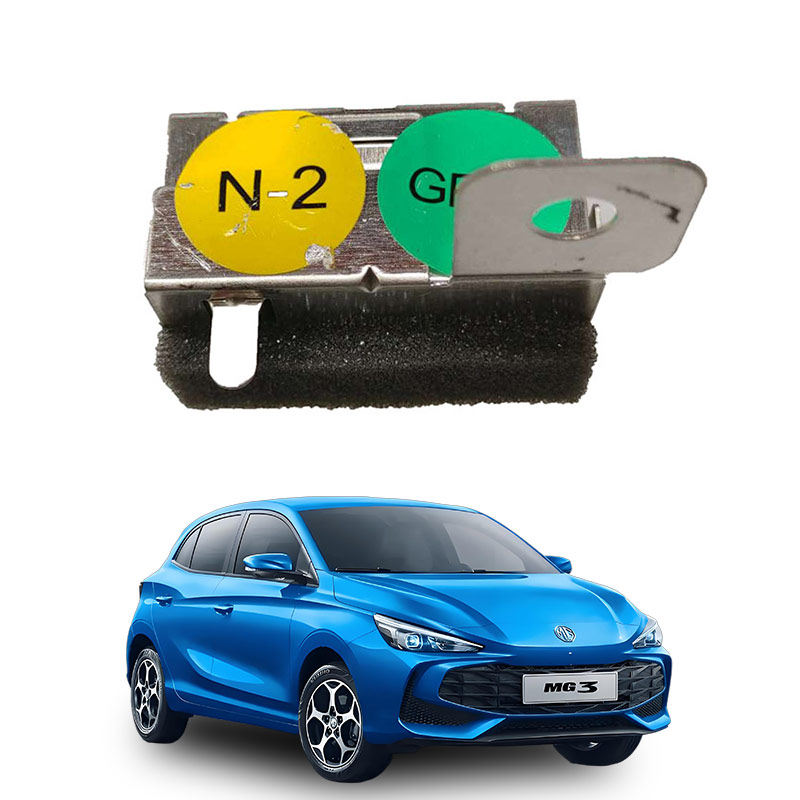

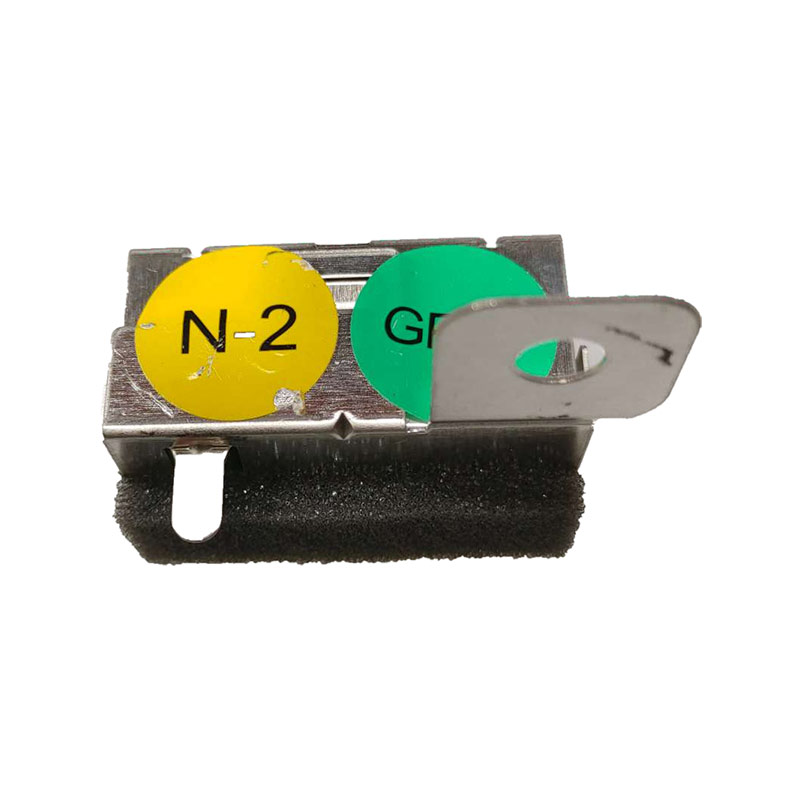

The function of the automotive antenna filter
Youdaoplaceholder0 The main functions of the car antenna filter include the following aspects :
Youdaoplaceholder0 Signal filtering and interference suppression : Automotive antenna filters can filter out unwanted frequency components, improving signal interference resistance and signal-to-noise ratio. This means it ensures useful signals pass through while suppressing unwanted frequency signals, thereby reducing communication interference and improving communication quality .
Youdaoplaceholder0 Improve communication quality : By filtering out unwanted frequency components, filters ensure smooth transmission of signals at specific frequencies, thereby improving communication quality. This is particularly important in the radio frequency signal processing systems of base stations and terminal equipment to ensure clear and reliable transmission .
Youdaoplaceholder0 Reduce electromagnetic interference : Filters can significantly attenuate electromagnetic interference signals and prevent them from entering the power grid, thereby protecting the electromagnetic environment from pollution. This is very IMPORTANT for preventing electromagnetic interference from affecting other electronic devices .
Youdaoplaceholder0 Improve analysis accuracy : In applications such as spectrum analysis, filters can improve analysis accuracy by selecting a specific frequency range for analysis. This makes signal processing more accurate and enables a better understanding of the characteristics and properties of the signal .
Youdaoplaceholder0 Specific application example : High-precision filters are widely used in shark fin automotive antenna products. This kind of antenna not only has a fashionable and dynamic appearance, but also integrates multiple functions such as FM, GPS and GSM. The use of high-precision filters enables the antenna to process various signals efficiently and ensures communication quality .
Youdaoplaceholder0 Car antenna filter is a filter specifically designed for car antennas, whose main function is to filter out unwanted frequency signals to ensure that the antenna only receives the desired signals.
Definition and Function
A car antenna filter is an electronic component, usually installed on or near a car antenna, used to filter out unwanted frequency signals. Its main function is to reduce noise and interference in the signal, ensure higher quality of the received signal, and thereby enhance the performance and stability of communication equipment.
Structure and working principle
Automotive antenna filters are composed of capacitors, inductors and resistors, and utilize the electrical characteristics of these components to selectively allow or attenuate signals of specific frequencies. It allows signals of specific frequencies to pass through while suppressing unwanted frequencies, thereby addressing the problem of signal interference between different frequency bands and communication systems .
Application scenarios
Automotive antenna filters are widely used in various automotive communication devices, including vehicle-mounted radios, GPS navigation systems, wireless communication modules, etc. It ensures stable operation of these devices in complex electromagnetic environment, reduces external interference and improves signal reception quality .
Youdaoplaceholder0 Car antenna filter failure can be caused by a variety of reasons, mainly including the following:
Youdaoplaceholder0 Physical damage : The components inside the filter (such as capacitors, inductors, resistors) may fail due to physical damage, resulting in poor filtering performance or complete failure .
Youdaoplaceholder0 Temperature variation : The performance changes of the filter at different temperatures may cause abnormal frequency response or temperature drift, affecting the filtering effect .
Youdaoplaceholder0 Impedance mismatch : If the input or output impedance of the filter does not match that of the system, it will cause signal loss or reflection, affecting system performance .
Youdaoplaceholder0 Mechanical failure : If the filter housing is damaged or the connectors are loose, it may cause a decline in filter performance or complete failure .
Fault detection method
Youdaoplaceholder0 Electrical performance testing : Electrical performance testing can be used to detect whether the resistance, capacitance and other parameters of the filter are normal, thereby determining whether there are problems such as short circuits or open circuits .
Youdaoplaceholder0 X-ray inspection : An X-ray inspection system can be used to detect whether there are foreign objects or structural damage inside the filter, helping to determine the cause of the fault .
Youdaoplaceholder0 Metallographic section analysis : Through metallographic section analysis, the internal structure and materials of the filter can be observed, further determining the cause of the fault .
Troubleshooting methods
Youdaoplaceholder0 Replace damaged components : If a component inside the filter is found to be damaged, the damaged component can be replaced to restore the normal operation of the filter .
Youdaoplaceholder0 Adjust the design : For impedance mismatch or temperature drift caused by design issues, the performance of the filter can be improved by adjusting the design parameters .
Youdaoplaceholder0 Repair mechanical faults : For mechanical faults, you can repair damaged housing or tighten loose parts to ensure the stable operation of the filter .
