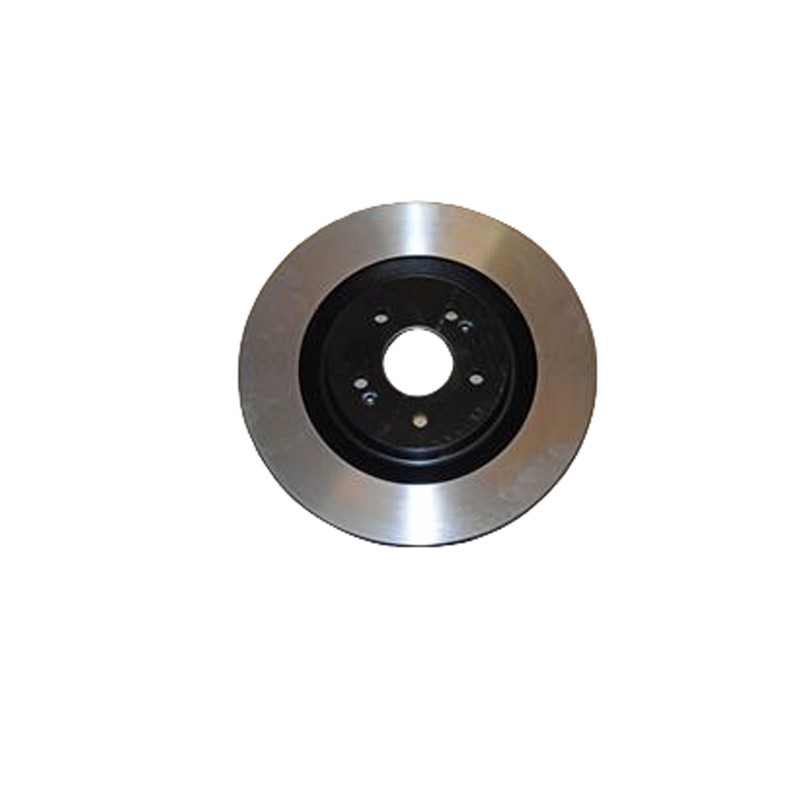

What is the rear brake disc of a car?
The rear brake disc is the core component of the disc brake system installed on the rear wheels of a vehicle. It works in conjunction with the brake caliper and brake pads, converting vehicle kinetic energy into heat energy through friction to achieve deceleration or braking.
Key features
Structural form: Rear brake discs mostly adopt solid discs or simple ventilated discs. Compared to the front wheels, they place more emphasis on cost and basic heat dissipation performance.
Material: Commonly used is gray cast iron (such as HT200), with a temperature resistance of approximately 450°C; high-performance models may use high-carbon alloys or perforated/etched materials.
Size: The diameter is usually smaller than that of the front brake disc. For example, the diameter of the rear disc of a common family car is about 280mm, and the thickness is about 28mm.
Function focus: It bears about 30% of the braking force, and its main function is to assist in stabilizing the vehicle's posture and preventing the rear wheels from locking.
Common types
Solid disc: Simple structure and low cost, suitable for the rear wheels of economy models.
Perforated/etched disc: Improves heat dissipation and chip removal performance, commonly seen in high-performance or modified models.
Ventilated disc: Some mid-to-high-end models also equip rear wheels with this type to enhance stability during continuous braking. Notes for Attention
When replacing, ensure that the specifications are consistent with the original factory ones, including the diameter, thickness, and pitch (PCD) parameters.
If the rear brake disc is integrated with the handbrake (parking brake), some vehicle models will adopt a "disc + drum" hybrid structure, or add a drum handbrake mechanism on top of the disc structure.
The rear brake disc is an important component of the vehicle's braking system. Its main functions are as follows:
To provide a friction surface to generate braking force: The rear brake disc works in conjunction with the brake pads, converting the vehicle's kinetic energy into heat through friction, helping the vehicle slow down or stop.
To assist in front-wheel braking and enhance stability: During braking, the vehicle's center of gravity shifts forward, with approximately 70% of the braking force borne by the front wheels, while the rear wheels are responsible for stabilizing the vehicle and preventing tail swaying or skidding, especially on slippery roads or during emergency braking.
To integrate with the parking brake system: Some vehicle models' rear brake discs also integrate the handbrake (parking brake) function, ensuring that the vehicle does not slide when stationary.
To improve braking response and heat dissipation performance: Compared to drum brakes, the disc structure (including the rear brake disc) has better heat dissipation, drainage, and resistance to thermal degradation, helping to maintain the stability of the braking effect.
Although the rear brake disc generates less braking force than the front wheels, it plays an irreplaceable role in maintaining the overall braking balance, handling safety, and the reliability of the braking system.
Common faults of the rear brake disc in vehicles may cause various driving abnormalities, and in severe cases, they can affect driving safety. According to the latest public information released by authoritative automotive media (such as Xiche and Pacific Auto), combined with the current information (March 2026), the common fault phenomena and corresponding causes of the rear brake disc are as follows:
Common fault phenomena:
Brake judder: Especially noticeable at high speeds or during heavy braking, manifested as rhythmic vibrations in the brake pedal or the vehicle body.
Abnormal noise: Such as "sizzling", "rustling", "gurgling", etc., often occurring when lightly braking, reversing, or in rainy conditions.
Reduced braking effect: Longer braking distance, longer pedal travel when braking, or a feeling of "softness".
Brake disc unable to rotate or stuck: In extreme cases, this may occur.
Brake drift: The vehicle leans to one side when braking.
Main cause analysis:
Disc wear or deformation due to long-term point braking or emergency braking, resulting in uneven surface and causing vibrations when clamped.
Brake disc warping due to rapid cooling after washing after long-term driving in a hot environment.
Brake pad issues:
Uneven wear, hard spots, poor quality materials (high metal content) accelerate disc wear and abnormal noise.
Related component linkage faults:
Brake booster stuck or unable to return → leading to drag braking, overheating, or inability to rotate.
Leakage of brake fluid or excessive moisture → affecting the transmission of braking force.
Hub deformation or unbalanced tires → misdiagnosed as a brake disc problem.
Poor driving habits:
Continuous point braking during downhill → overheating, carbonization, and failure of the brake disc.
Suggested treatment measures:
Stop immediately for inspection: If severe judder, abnormal noise, or braking failure occurs, immediately park safely and pull over, do not continue driving.
Professional diagnosis: Go to a regular repair station and use professional equipment to measure the thickness of the brake disc, the jump (wobble) amount, the status of the brake booster, etc.
Necessary replacement:
The thickness of the brake disc is lower than the minimum limit set by the manufacturer (usually 2-3 mm) and must be replaced.
It is also recommended to replace in pairs (synchronously replace the left and right rear wheels) to avoid uneven braking force.
Daily maintenance suggestions:
Check the brake fluid level and condition every 5,000 kilometers.
Check the thickness of the brake pads every 10,000 kilometers. Avoid prolonged use of the handbrake and use the engine braking assist when going downhill.
