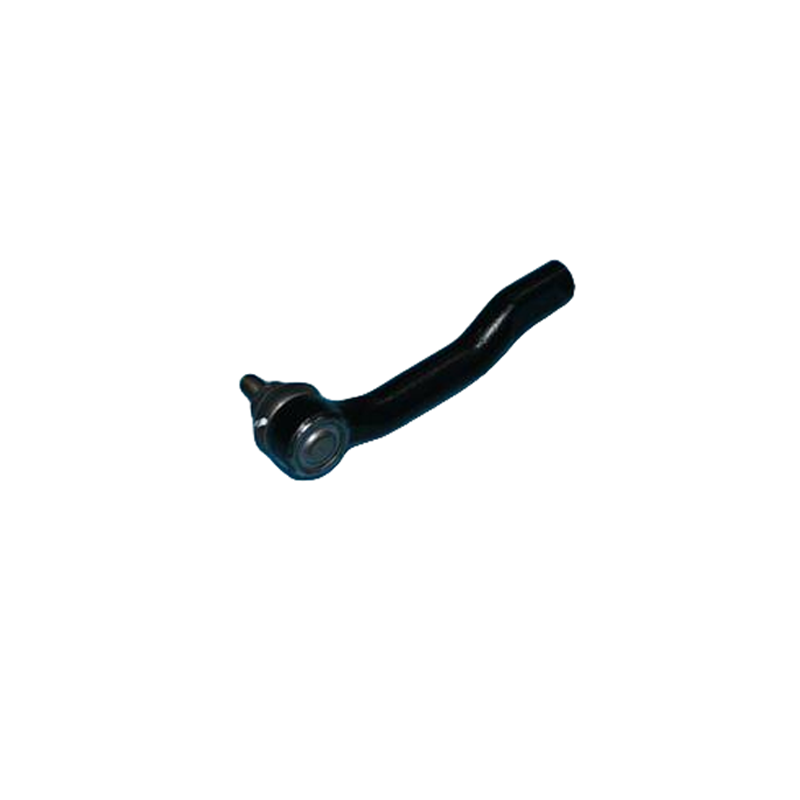

Outer ball head assembly: The "joint" of the vehicle's steering system
The outer ball head assembly is an indispensable core component in the vehicle's steering system and can be regarded as the "joint" of vehicle control. It connects the steering tie rod with the wheel hub bearing assembly. During vehicle operation, it plays a dual role: on the one hand, it precisely transmits the steering force from the steering wheel, allowing the wheels to smoothly deviate according to the driver's instructions, enabling the vehicle to turn flexibly; on the other hand, it allows the wheels to maintain the continuity of the steering function even when they bounce up and down, ensuring the stability of the control even on bumpy roads.
From a structural perspective, the outer ball head assembly mainly consists of ball pins, ball seats, dust covers, and connecting tie rods. The precise cooperation between the ball pins and ball seats is like a human joint, ensuring not only the multi-angle flexible rotation during steering but also the ability to withstand the longitudinal and lateral impact forces from the wheels. The dust cover is its "protective suit", which can prevent mud, water, dust, and other impurities from invading the interior, reducing wear and extending the service life of the components. For vehicles that frequently travel on complex road conditions, the reliability of the outer ball head assembly directly determines the driving control experience and safety.
Fault warning: These signals cannot be ignored
Due to long-term exposure to harsh working environments, the outer ball head assembly is bound to experience wear and looseness. When the vehicle exhibits the following symptoms, it is likely that the outer ball head assembly is giving out a fault warning:
Firstly, there is an abnormal noise signal. When the vehicle passes over speed bumps or uneven roads, the chassis emits a "clunking clunking" metallic impact sound, especially more pronounced during low-speed turns. This is usually caused by excessive clearance in the outer ball head due to internal wear, resulting in components colliding with each other and producing the sound. Secondly, the steering feel changes, with the steering wheel having increased virtual position, obvious "empty travel" when turning, slow response when steering, and even steering shake, seriously affecting the control accuracy.
In addition, the vehicle's driving state also gives a hint. For example, when driving in a straight line, the vehicle inexplicably veers off, requiring frequent correction of the steering wheel; abnormal single-sided wear or sawtooth wear of the tires is due to the failure of the outer ball head, causing the wheel alignment parameters to be out of balance, and the contact angle with the ground to be abnormal. If these signals are ignored, not only will the wear of the tires, steering tie rods, etc. be accelerated, but in severe cases, it may even lead to the detachment of the outer ball head, causing a major safety accident where the wheels lose control.
Solution: Scientific response to ensure safety
Once it is confirmed that the outer ball head assembly is faulty, timely handling is the key to ensuring driving safety. The specific solutions can be as follows:
Professional inspection, precise judgment
After discovering abnormalities, it is recommended to go to a professional repair facility for inspection. The maintenance personnel will determine the degree of the fault through intuitive inspection and manual detection: lift the vehicle and observe whether the dust cover of the outer ball head is damaged or leaking oil; hold the tie rod and shake it up and down with your hand to feel if there is any obvious looseness. If necessary, professional tools will be used to measure the clearance to ensure accurate diagnosis and avoid over-repair due to misjudgment.
Replacement first, choose high-quality parts
For severely worn and excessively loose outer ball head assemblies, replacement is the most reliable solution. When choosing parts, priority should be given to original factory parts, as they have a higher matching degree with the vehicle, better material and craftsmanship, and a service life of up to 80,000 kilometers. If choosing aftermarket parts, select products with good reputation and a regular brand to avoid recurrence of faults due to quality issues. During the replacement process, the maintenance personnel need to use a torque wrench to tighten the bolts according to the standard torque to ensure a secure installation, and replace the new dust cover to provide reliable protection for the new ball head.
Alignment calibration, extend lifespan
After replacing the outer ball head assembly, four-wheel alignment is an indispensable step. The change of the outer ball head will affect the alignment parameters such as the front beam value of the wheels. If not calibrated in time, not only will the new ball head wear out quickly, but also problems such as tire misalignment and vehicle veering will occur. By adjusting the parameters through four-wheel alignment, the wheels can be restored to their optimal working condition, which not only ensures driving stability but also extends the service life of the outer ball joint and tires.
Regular maintenance, preventing problems before they occur
In addition to post-failure repairs, regular maintenance can also effectively extend the lifespan of the outer ball joint assembly. It is recommended that urban vehicles have an inspection every 5-8 thousand kilometers, and vehicles frequently traveling on bad roads or in mountainous areas have an inspection every 3 thousand kilometers. Pay attention to observing the driving conditions of the vehicle, and promptly investigate and solve any abnormal sounds, steering abnormalities, etc. At the same time, avoid violent driving, reduce sudden steering, and not slow down when passing over uneven road surfaces, etc., to reduce the impact force borne by the outer ball joint.
