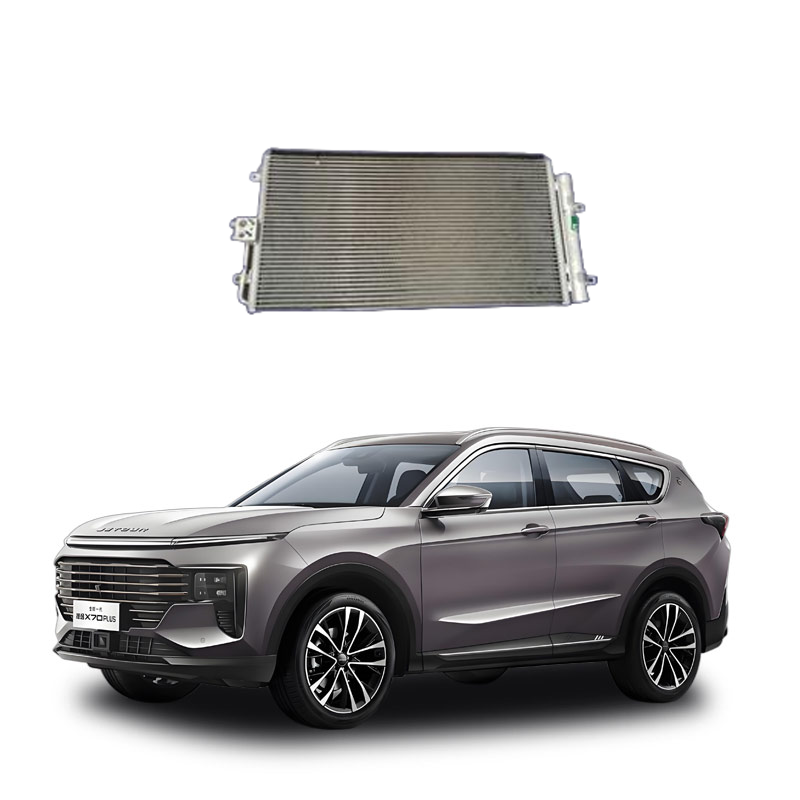

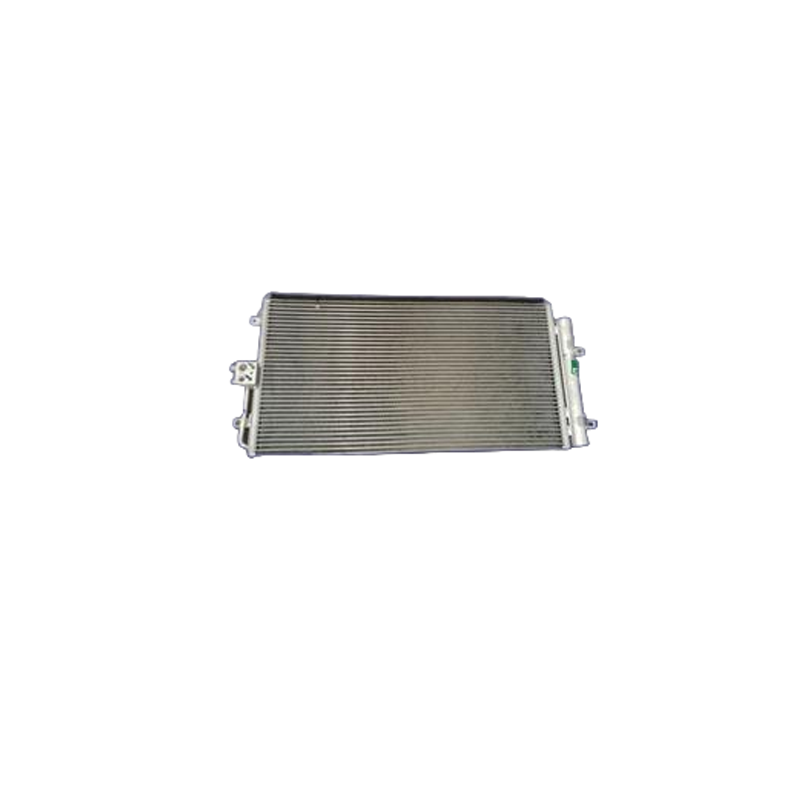

The core function of the automotive condenser
The automotive condenser is a crucial heat exchanger in the air conditioning refrigeration system, serving as the "heat dissipation hub" of the system. Its core function is to achieve the state transformation of the refrigerant through heat exchange, providing the foundation for cooling the interior of the vehicle.
When the compressor compresses the low-temperature and low-pressure gaseous refrigerant into a high-temperature and high-pressure vapor, it will deliver it to the condenser. At this point, the condenser comes into contact with the outside air through its dense heat dissipation fins, quickly dissipating the heat carried by the refrigerant into the atmosphere, gradually cooling and condensing the high-temperature and high-pressure gaseous refrigerant into medium-temperature and high-pressure liquid. This process is a key link in the refrigeration cycle: the liquid refrigerant then enters the throttling device, becomes a low-temperature and low-pressure liquid, and finally absorbs the heat from the interior of the vehicle in the evaporator, achieving interior cooling.
From the perspective of structural design, the condenser is usually installed in front of the vehicle's water tank, ingeniously utilizing the natural airflow during vehicle movement for heat dissipation; when the vehicle is stationary or moving at a low speed, the electronic fan will actively supply air to ensure that the heat dissipation efficiency is not affected by the vehicle speed. The heat dissipation fins are densely attached to the surface of the pipe, significantly increasing the contact area between the refrigerant and the air, further enhancing the heat exchange efficiency. Additionally, some models' condensers also undertake the function of cooling the brake fluid, reducing the temperature of the brake fluid through heat exchange to prevent a decrease in braking performance due to overheated brake fluid.
Common faults and manifestations of the automotive condenser
The working state of the condenser directly affects the performance of the air conditioning system. Once a fault occurs, it will trigger a series of chain reactions. Common faults and manifestations are as follows:
Clogging and dirtiness fault
This is one of the most common faults of the condenser in summer. Due to its installation at the front of the vehicle, the condenser is prone to adsorbing dust, willow fluff, insect corpses, etc., which will block the gaps between the heat dissipation fins, hindering air circulation, resulting in a significant decline in heat exchange efficiency. At this time, the air conditioning cooling effect will significantly weaken, and even if the air conditioning is turned on for a long time, the interior temperature will be difficult to reach the desired level; at the same time, the surface temperature of the condenser will rise abnormally, increasing the workload of the compressor and, in the long term, shortening the service life of the compressor.
Refrigerant leakage
The pipe wall thickness of the condenser is usually less than 0.3 millimeters. During driving, road debris impact, corrosion aging, or improper installation can cause pipe damage, leading to refrigerant leakage. In the early stage of leakage, only slight oil stains may appear at the damaged area, which is difficult to detect; as the leakage intensifies, a large amount of refrigerant is lost, and the air conditioning will completely lose its cooling capacity. Moreover, the leakage will disrupt the pressure balance of the refrigeration system, causing abnormal operation of the compressor and even abnormal noise.
Physical damage
When a vehicle experiences a collision or scrape, the condenser may suffer physical damage such as deformed shell or bent pipes. Deformed shells will compress the internal pipes, affecting the normal flow of the refrigerant; bent pipes will directly block the refrigerant circulation, causing the air conditioning system to completely fail. This fault is usually accompanied by obvious appearance damage, such as dents, cracks, etc., which can be easily detected by the naked eye.
Electronic fan failure
Some models' condensers rely on electronic fans for auxiliary heat dissipation. If the fan motor is damaged, the relay fails, or the circuit is short-circuited, the fan will not operate normally. At this time, when the vehicle is stationary or moving at a low speed, the condenser will not receive sufficient air circulation, and the heat dissipation efficiency will sharply decline, resulting in a significant reduction in air conditioning cooling effect as the vehicle speed decreases, and in severe cases, a condenser overheating alarm may occur.
Prevention and response to condenser faults
For common faults of the condenser, car owners can take the following response and prevention measures:
During daily maintenance, it is recommended to clean the condenser every 20,000 kilometers. When cleaning, first use a high-pressure air gun to blow off the surface dirt, then use a high-pressure water gun in the direction of the heat dissipation fins to rinse, avoiding vertical water flow from damaging the fins; if the fins are deformed, use a special tool to gently correct them. At the same time, regularly check whether there are any oil stains, depressions or other abnormalities on the surface of the condenser. If leakage or physical damage is detected, it is necessary to promptly go to a professional repair shop for repair or replacement.
For electronic fan failures, after starting the air conditioner, observe whether the fan is operating. If it does not rotate or has abnormal rotation speed, it is necessary to promptly check the motor, relay and wiring. In addition, avoid idling the air conditioner in a high-temperature environment for a long time, reducing the workload of the condenser; before parking, turn off the AC switch in advance and use the fan to continue circulating air for 2-3 minutes to help the condenser dissipate heat and extend its service life.
