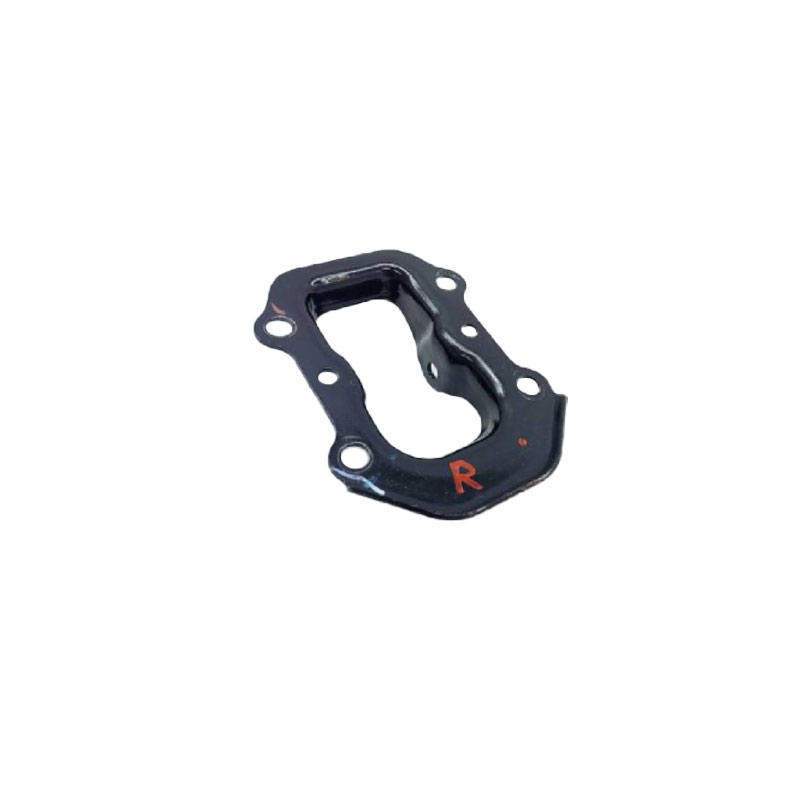

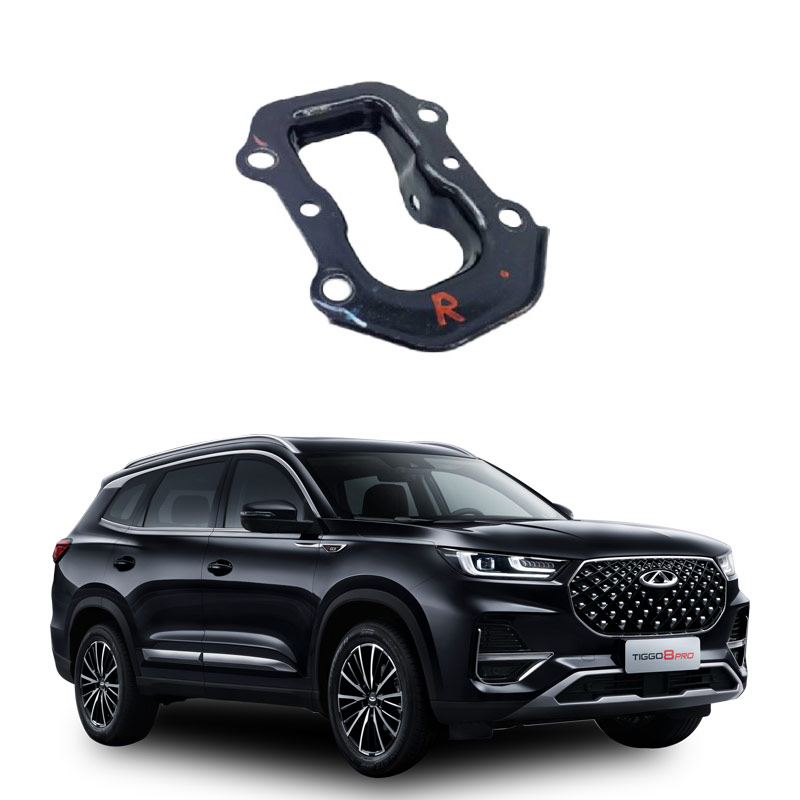

What is the rear towing arm bracket of a car
Car rear towing arm bracket is an important component of the rear suspension system of a car, mainly used to connect the wheels to the body, providing support and shock absorption. Drag arm suspension IS A semi-independent suspension system between independent and non-independent suspension, whose core structure is composed of left and right longitudinal arms welded together by torsion beam, belongs to non-independent suspension but has some independent suspension characteristics .
Structure and Function
Drag arm suspension is usually made up of a thick up-and-down swinging arm that provides a hard connection between the wheels and the body or frame, while hydraulic shock absorbers and coil springs act as a soft connection to absorb shock and support the body . The towing arm, which connects the wheel to the body and is usually wider, is also called the "knife arm" .
Types and Variants
There are two variants of the towing arm suspension: full towing arm and half towing arm. The swing axis of the full swing arm is perpendicular to the centerline of the vehicle body, while the swing arm of the half swing arm is inclined backward .
In addition, the cantilever suspension can further optimize suspension stability and connection strength through innovative designs such as universal joint drive, snake-shaped struts anti-roll .
Application scenarios and advantages and disadvantages
The trailing arm suspension is widely used in front-wheel drive models because it combines the integrity of non-independent suspensions with the sporty characteristics of independent suspensions. Its advantages include a simple structure and low manufacturing cost, making it suitable for use in family car models. However, due to its structural limitations, the comfort and handling of the trailing arm suspension are relatively poor, especially when turning at high speed, the body rolls significantly and the handling response is slower .
Youdaoplaceholder0 The main functions of the rear towing arm bracket of a car include supporting the body, connecting the rear wheels to the body, transmitting force and torque, and helping to keep the vehicle stable during driving. Specifically:
Youdaoplaceholder0 Support the vehicle body : The towing arm bracket supports the vehicle body by connecting the rear wheels to it, ensuring that the vehicle remains balanced and stable during driving .
Youdaoplaceholder0 Connecting the rear wheels to the body : The towing arm bracket connects the rear wheels to the body, ensuring smooth rotation of the rear wheels during driving while reducing the vibration and noise of the body .
Youdaoplaceholder0 Transmission of Force and torque : During vehicle operation, the towing arm bracket can transfer force and torque from the wheels to the vehicle body, helping the vehicle to drive normally and steer .
Youdaoplaceholder0 Stay stable : With proper design and installation, the towing arm bracket can optimize the vehicle's handling and comfort. For example, if the connection point of the towing arm to the body is higher or lower than the wheel center, it will affect the stability and handling response of the vehicle .
Youdaoplaceholder0 The influence of the design and installation of the towing arm bracket on vehicle performance is mainly reflected in comfort and handling. If the connection point between the towing arm and the vehicle body is higher than the wheel center, the vehicle will be more stable and comfortable during driving. But if the connection point is lower than the center of the wheel, while handling is better, comfort drops .
Rear towing arm bracket failure can cause a variety of problems including poor handling, reduced comfort, reduced safety factor . Specifically:
Youdaoplaceholder0 Poor handling : Damage to the rear towing arm bracket can make it difficult for the driver to precisely control the vehicle's direction and driving state, affecting the vehicle's handling .
Youdaoplaceholder0 Decreased comfort : There will be obvious jolts and vibrations during driving, affecting the comfort of the ride .
Youdaoplaceholder0 Reduced safety factor : Failure of the connection between the wheels and the vehicle body can easily lead to dangerous situations such as rollover .
Youdaoplaceholder0 Abnormal wear or damage of other components : For example, the tire cannot rotate normally due to the damage of the rear drag arm bracket, which increases wear and shortens service life .
Youdaoplaceholder0 Increased fuel consumption : The vehicle is unstable and needs to step on the accelerator to maintain speed, resulting in increased fuel consumption .
The function and fault manifestations of the rear drag arm bracket
The rear towing arm bracket is an important component of the chassis suspension system, which elastically connects the body to the axle, reduces impact caused by uneven roads, ensures ride comfort, and improves handling and stability .
When the rear towing arm bracket malfunctions, the main manifestations are reduced stability of the vehicle body, various abnormal noises, etc. .
The cause of the fault and the solution
The causes of failure may include design flaws, quality issues or wear and tear resulting from long-term use. The solution is to inspect and repair in a timely manner and replace the damaged parts when necessary. Choosing high-quality materials and design that meets vehicle requirements can improve the durability and safety of the rear towing arm bracket .
