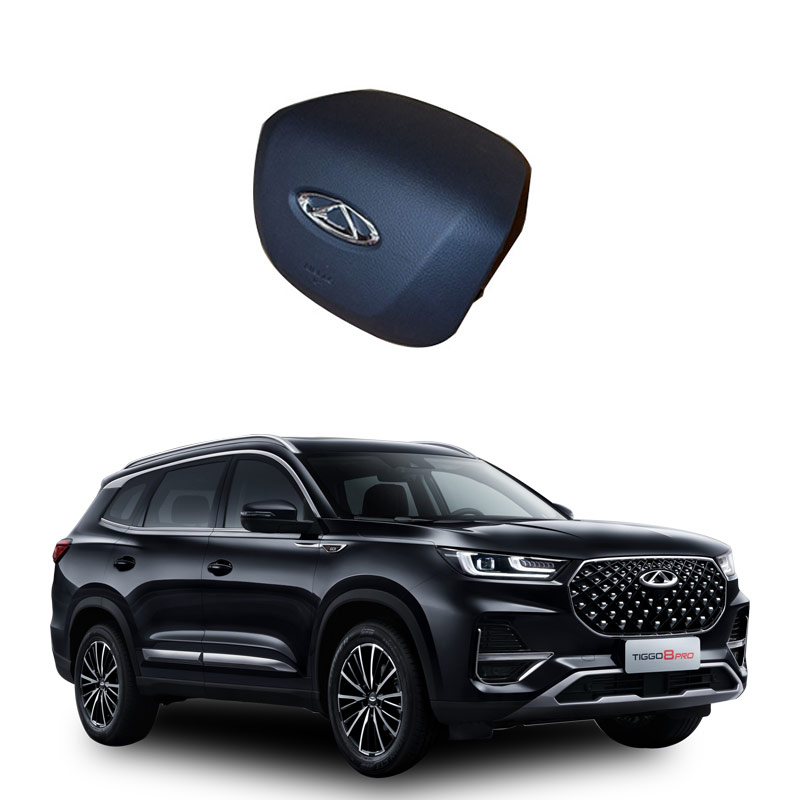

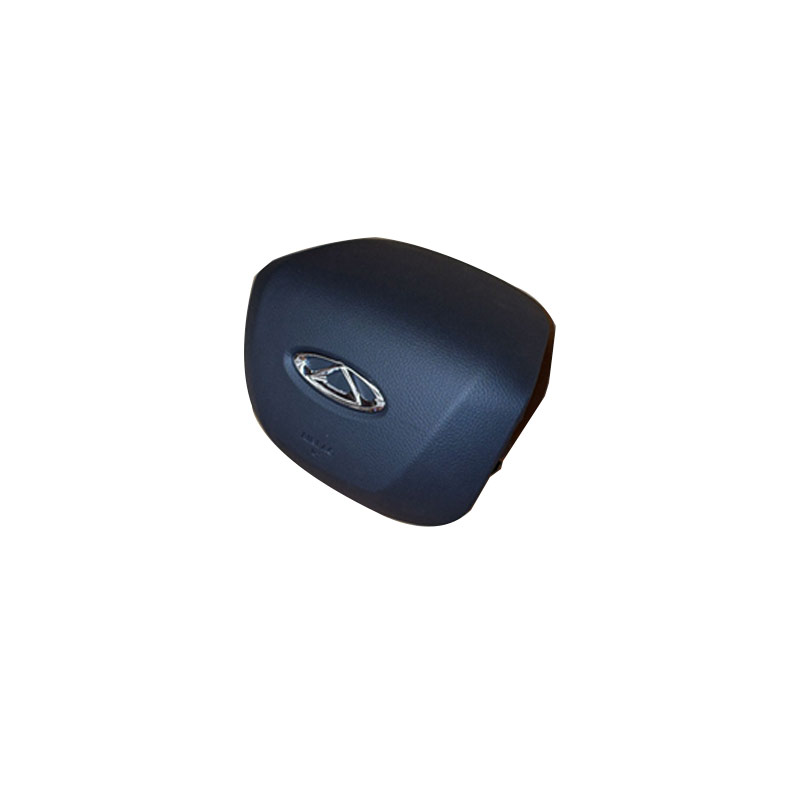

What is the main airbag of a car
Youdaoplaceholder0 Main airbag is an airbag installed right in front of the driver, usually in the center of the steering wheel. Its main function is to inflate and pop out instantly in the event of a collision, creating a buffer zone between the vehicle and the steering wheel, thereby reducing the injury caused by the head and the upper part of the driver bumping into a hard object .
Working principle
The working principle of the main airbag in a car is as follows:
Youdaoplaceholder0 Sensor detection : In the event of a collision, the collision sensor installed at the front of the vehicle detects a sudden deceleration in speed and promptly transmits this signal to the control computer of the airbag system.
Youdaoplaceholder0 Computer analysis : After confirming the control computer analysis, immediately detonate the electric hot spot firearm inside the airbag to cause it to explode.
Youdaoplaceholder0 Gas generation : When the igniter is ignited, solid nitrogen particles rapidly vaporize to produce a large amount of nitrogen gas, which immediately inflates the airbag, causing it to deploy within 0.01 seconds.
Historical background and technological development
Since its invention by Herrick in 1953, the technology of automotive airbags has undergone many innovations. The original gas generator used compressed gas, later firework technology, modern airbag systems also use dual-chamber design for graded protection of head and chest .
Maintenance and care suggestions
To ensure the normal operation of airbags, it is recommended that car owners pay attention to the following points:
Youdaoplaceholder0 Sit properly : Avoid blocking the airbag 's ejection path.
Youdaoplaceholder0 Avoid placing ornaments or electronic devices in front airbag coverage area .
Youdaoplaceholder0 Use seat belt : Airbags should be used in conjunction with seat belts, and their effectiveness is greatly reduced when used alone .
The main function of the main airbag in a car is to rapidly inflate and expand to form an air cushion when a vehicle collides, thereby reducing the degree of injury to the occupants.
The Supplermental Restraint System (SRS for short) consists of components such as the sensor assembly, inflator, folding airbag, igniter, solid nitrogen, etc. When a car is subjected to a high-speed collision within a certain Angle ahead, the collision sensor installed at the front of the vehicle and the safety sensor installed in the middle of the car will detect a sudden deceleration in vehicle speed and quickly transmit this signal to the control computer of the airbag system. The computer, after analysis and confirmation, immediately detonates the electric hot spot firester inside the airbag, causing it to explode, solid nitrogen particles quickly vaporize, a large amount of nitrogen gas inflate the airbag, and under the powerful impact force fully deploy to form an "air cushion", thereby reducing the impact force and protecting the driver and passengers .
The airbag works as follows: The gas generator receives the signal and ignites the gas generator to produce a large amount of gas, which is filtered and cooled and then enters the airbag, causing the airbag to break through the cushion in a very short time and expand rapidly to form an air cushion, and leak and contract in time to absorb shock energy effectively protect human head and chest .
In addition, the airbag system mainly consists of four parts: the collision sensor, the airbag computer, the SRS indicator light and the airbag assembly. The collision sensor is the main control signal input device that detects the intensity signal of the vehicle collision and determines whether to detonate the inflation element to inflate the airbag based on these signals.
Youdaoplaceholder0 A faulty airbag in a car may be caused by the following reasons :
Youdaoplaceholder0 Poor plug contact : The plug of the airbag system may have poor contact due to dust cover or vibration, causing the fault light to come on. The solution is to unplug, clean the dust, fix the pins and reinsert, and replace the wiring harness and connectors if necessary .
Youdaoplaceholder0 Loose grounding wire : A loose grounding wire somewhere in the car can affect the normal operation of the airbag system. The ground wire needs to be checked and tightened .
Youdaoplaceholder0 Low battery : Insufficient battery power causes low voltage in the airbag system, which triggers a fault code. The solution is to charge or replace the battery at .
Youdaoplaceholder0 Airbag hairspring failure : The airbag hairspring located directly below the steering wheel may wear out the internal wiring due to prolonged operation. The damaged airbag hairspring needs to be replaced .
Youdaoplaceholder0 Collision sensor failure : The collision sensor fails to accurately determine the collision situation, causing the fault light to come on. Need a diagnostic device to determine and repair or replace the sensor .
Youdaoplaceholder0 Airbag itself failure : Internal damage to the driver's airbag, passenger airbag, etc. can also cause the warning light to come on. The damaged airbag needs to be identified with a diagnostic instrument and replaced .
Youdaoplaceholder0 Circuit failure : An open circuit, short circuit or loose plug can cause the airbag system to fail to function properly. The line problem needs to be checked and fixed .
Youdaoplaceholder0 ECU sensor data error : ECU sensor data error can also cause the airbag fault light to come on. The fault code needs to be cleared with a diagnostic instrument.
Youdaoplaceholder0 Solutions and precautions :
Youdaoplaceholder0 Check and clean the plug : Regularly inspect the plug of the airbag system, clean the dust and secure the pins, and replace the wiring harness and connectors if necessary.
Youdaoplaceholder0 Secure the grounding wire and plug : Make sure the connection between the grounding wire and plug is secure and avoid loosening .
Youdaoplaceholder0 Check the battery level : Make sure the battery is fully charged and charge or replace it if necessary .
Youdaoplaceholder0 Replace damaged airbag hairspring and sensor : For damaged airbag hairspring and sensor, replace them in time to ensure the system works properly .
Youdaoplaceholder0 Check for line problems : Check the lines for damage or aging, repair or replace them in time .
Youdaoplaceholder0 Use a diagnostic instrument to clear fault codes : Read fault codes with a diagnostic instrument and clear them to ensure the system works properly .
Youdaoplaceholder0 Keep the vehicle dry : Avoid parking the vehicle in a damp environment for a long time. Make sure the connection interfaces are dry .
Youdaoplaceholder0 Regular maintenance : Regularly visit a professional repair shop for maintenance and inspection to ensure the airbag system is in good condition .
