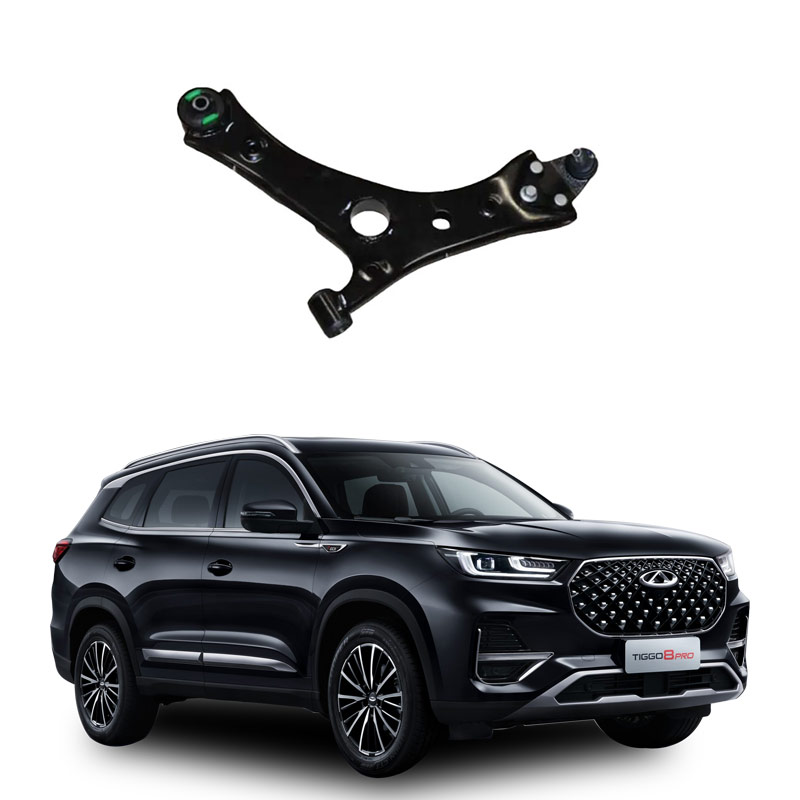

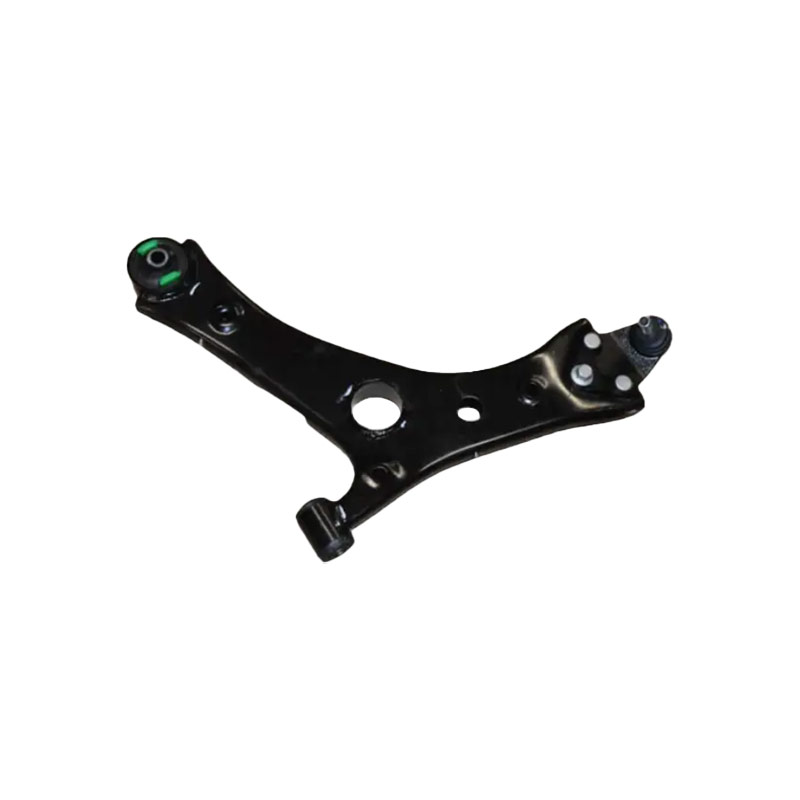

The function of the lower swing arm of a car
The lower control arm of a car is mainly used to support the body, transmit torque, cushion shock and keep the wheels in position to ensure driving stability , it is an important component in the suspension system.
Youdaoplaceholder0 Overview of Core features
The lower control arm of a car, as a key component of the suspension system, has the following core functions:
Youdaoplaceholder0 Support and Load transfer : Supports the weight of the vehicle body and transfers the force on the wheels to the frame to prevent damage to the structure due to excessive local force. Youdaoplaceholder2
Youdaoplaceholder0 Torque transmission and wheel alignment : Maintain the relative position between the wheels and the vehicle body to ensure effective torque transmission when turning. Youdaoplaceholder2
Youdaoplaceholder0 Cushioning and shock absorption : Absorbs road impact through elastic deformation and improves ride comfort with shock absorbers. Youdaoplaceholder2.
Youdaoplaceholder0 Structural characteristics are associated with function
The lower swing arm is usually made of high-strength metal or aluminum alloy, and its geometric design (such as triangular structure) can achieve the integration of multiple functions:
Youdaoplaceholder0 Rigid support : ensures the efficiency of force conduction;
Youdaoplaceholder0 Flexible buffering : Balancing rigid connections with elastic requirements through components such as rubber sleeves. Youdaoplaceholder2
The effects of loss of function
If the lower swing arm is damaged, it may cause:
Inaccurate wheel alignment (deviation, abnormal tire wear);
Abnormal noises from the chassis and decreased handling stability;
Reduced shock absorption leads to increased jolt.
Youdaoplaceholder0 The working principle of the lower control arm of a car mainly includes its structure, function and role in the car suspension system.
Structure and Function
The lower control arm is a part of the car suspension system, mainly achieving vibration filtering by elastically connecting the vehicle body to the tires. It connects the sheep horn (the cast iron part behind the brake disc) and the treasure beam (the front axle). There is a ball joint at the connection with the sheep horn to ensure that the tire is not affected when turning. The connection to the beam usually has two joints, one parallel to the ground and the other perpendicular to the ground .
The main functions of the lower swing arm include:
Youdaoplaceholder0 Support vehicle weight : Effectively transfer the weight of the vehicle body and passengers to the ground to ensure the vehicle remains stable in various road conditions .
Youdaoplaceholder0 Shock absorption : Absorb and mitigate the vibrations caused by uneven road surfaces during driving, protecting passengers in the vehicle from jolting .
Youdaoplaceholder0 Ensure driving stability : Together with the frame (or subframe) and the upper control arm, it forms a "triangular" structure, providing lateral and longitudinal stability of the vehicle .
Its role in the automotive suspension system
The lower swing arm plays a crucial role in the automotive suspension system:
Youdaoplaceholder0 Suspension guidance and support : Keep the wheels properly aligned, ensure driving stability, and support the weight of the vehicle .
Youdaoplaceholder0 Shock absorption : Working in conjunction with shock absorbers and springs, it disperses and absorbs vibrations during driving, providing a comfortable and smooth driving experience .
Youdaoplaceholder0 Protect the body and suspension system : Resist impact forces from the road surface, extend the service life of key components, and ensure the long-term stable operation of the vehicle .
Symptoms OF CAR lower control ARM failure mainly include reduced handling, reduced comfort, reduced safety performance, abnormal noise, inaccurate positioning parameters, deviation, abnormal tire wear, etc. .
Fault manifestation
Youdaoplaceholder0 Reduced handling : Damage to the lower control arm causes the steering wheel and body to shake and become unstable at high speeds, resulting in poor handling and inability to keep going straight .
Youdaoplaceholder0 Decreased comfort : The suspension system fails to effectively filter out bumps, causing occupants to feel obvious vibrations and noise, which affects the driving experience .
Youdaoplaceholder0 Reduced safety performance : A faulty lower control arm may affect steering and braking performance, causing the vehicle to lose control in emergency situations and increasing the risk of accidents .
Youdaoplaceholder0 Abnormal noise : A shrill abnormal noise may occur during driving, especially on bumpy roads or speed bumps .
Youdaoplaceholder0 Inaccurate alignment parameters : Four-wheel alignment parameters are inaccurate, causing the vehicle to veer off course and wear out other components .
Youdaoplaceholder0 Abnormal tire wear : Due to uneven force on the tires, abnormal wear occurs, increasing the cost of use and safety risks .
Youdaoplaceholder0 Affected steering : In severe cases, it may cause difficulty or failure in steering, affecting driving safety .
The cause and impact of the malfunction
The main causes of lower swing arm failure include ball head wear, aging or breakage of rubber bushings, etc. These malfunctions can cause the lower control arm to fail to work properly, thereby affecting the vehicle's handling, comfort and safety. The specific manifestations are abnormal swinging, abnormal noise, deviation and other phenomena of the vehicle during driving .
Maintenance suggestions
Once a malfunction of the lower swing arm is detected, it should be promptly taken to a professional auto repair shop for inspection and repair. The maintenance content includes replacing damaged ball joints, rubber bushings and other components to ensure that the lower swing arm returns to its normal working state. During MAINTENANCE, attention should be paid to operation in accordance with professional parameter requirements to ensure maintenance quality .
