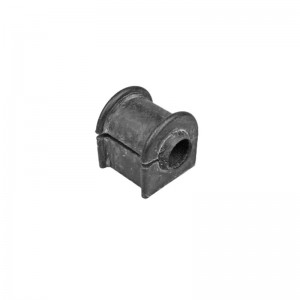

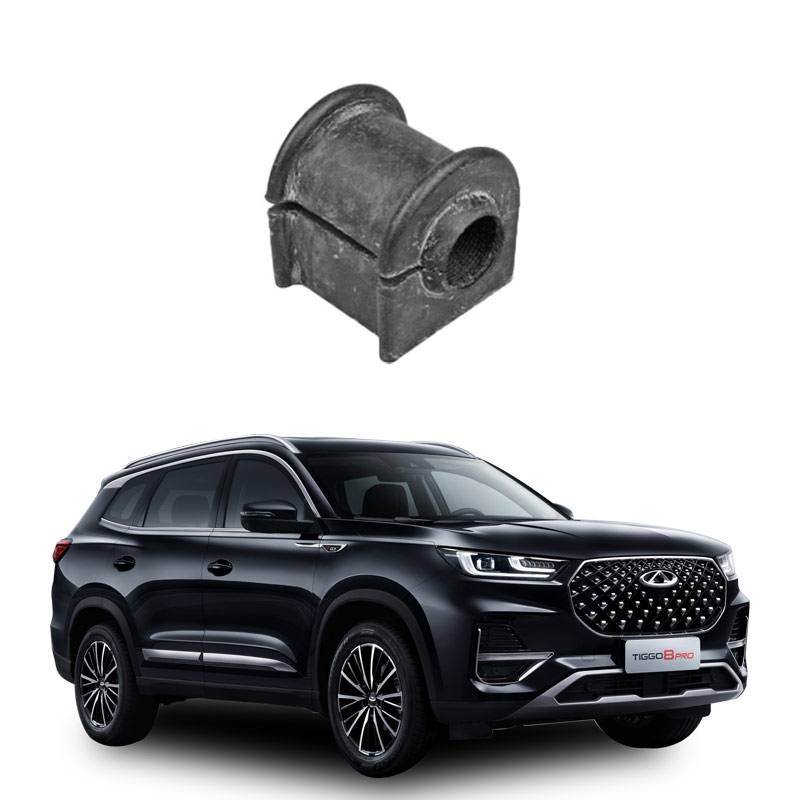

What is the rubber sleeve of the front balance bar of a car
Automobile front balance bar rubber sleeve is an important component that connects the balance bar to the suspension system. Its main function is to absorb shock, reduce vibration, decrease friction and vibration, thereby maintaining the stability and handling of the vehicle .
Structure and Function
The rubber sleeves of the balance bar are usually made of rubber materials and are installed at both ends of the balance bar, connected to the suspension system. Its main functions include:
Youdaoplaceholder0 Absorbing impact : During vehicle operation, the rubber sleeve can absorb the impact from the road surface, reducing the jolting sensation of the vehicle body.
Youdaoplaceholder0 Reduce vibration : Reduce friction and vibration between the balance bar and other components to keep the vehicle running smoothly.
Youdaoplaceholder0 Improve stability : When the vehicle turns, the rubber sleeve enables the balance bar to work better, significantly reducing body roll and improving the vehicle's handling and stability .
The impact and symptoms of damage
When the rubber sleeve of the balance bar is damaged, it will have a significant impact on the driving performance and safety of the vehicle. Common damage symptoms include:
Youdaoplaceholder0 Unusual noise : Unusual noises such as clattering or creaking may occur during driving.
Youdaoplaceholder0 Abnormal driving : Increased play of the steering wheel, increased roll in corners, abnormal tire wear, etc.
Youdaoplaceholder0 Safety hazards : Slower steering response, damaged suspension components, ESP system misjudgment, increased risk of tire blowout, etc. Youdaoplaceholder2.
Replacement suggestions
When replacing the rubber sleeves of the balance bar, it is necessary to decide whether to replace the entire pair based on the specific situation. If one side of the rubber sleeve is slightly damaged, only the damaged side can be replaced. But if the rubber sleeves on both sides are severely worn or one side is damaged while the other side is obviously aged, it is recommended to replace the entire set in order to maintain balance and stability of the vehicle .
The main functions of the car front balance bar rubber sleeve include fixing the balance bar, reducing friction, buffering stress and pressure . Specifically:
Youdaoplaceholder0 Fixed balance bar : The rubber sleeve of the balance bar firmly holds the balance bar in its proper position to ensure its stability during vehicle movement .
Youdaoplaceholder0 Reduce friction : The balance bar rubber sleeve can reduce the friction between the balance bar and the surrounding components during operation, thereby reducing wear and energy loss and improving the overall performance of the vehicle .
Youdaoplaceholder0 Buffer stress and pressure : The balance bar is subject to a variety of complex forces while the vehicle is in motion. The rubber sleeve of the balance bar acts like an elastic cushioning pad, effectively absorbing and distributing these stresses and pressures, protecting the balance bar and extending its service life .
In addition, the balance bar rubber sleeve can also prevent the balance bar from contacting the body directly, reduce the body twist deformation, protect the integrity of the body structure .
If the rubber sleeve of the balance bar is damaged, it will affect the driving stability of the vehicle, cause the front wheels to veer off course, the braking distance to increase, and even make abnormal noise on bumpy roads .
Therefore, timely inspection and replacement of damaged balance bar rubber sleeves is essential to ensure the safety and stability of the vehicle .
The main symptoms of front balance bar rubber sleeve failure include the following :
Youdaoplaceholder0 Jolting noise : When the rubber cover of the balance bar is damaged or hardened in winter, the vehicle will make a "clunk clunk" or "creaking" noise when passing over speed bumps or bumpy roads, as if the chassis is "falling apart" .
Youdaoplaceholder0 Loose chassis : Failure of the rubber sleeve weakens the support of the balance bar for the vehicle body, resulting in obvious roll when cornering, loose chassis on bumpy roads, and a sudden drop in driving confidence .
Youdaoplaceholder0 Deviation and longer braking distance : Wear of the rubber sleeves may cause misalignment of the four wheels, resulting in the vehicle veering off course or even an abnormally longer braking distance, posing a safety hazard .
Youdaoplaceholder0 Uneven tire wear : Due to uneven suspension force, the tread wear on both sides of the tire is significantly different, forming "high and low shoulders". If left unrepaired for a long time, it may cause a blowout .
Youdaoplaceholder0 Damage to the shock absorption system : Problems with the rubber sleeves will accelerate the aging of components around the balance bar (such as shock absorbers and ball joints), increasing maintenance costs .
Youdaoplaceholder0 The function of the balance bar rubber sleeve : The balance bar rubber sleeve has important functions such as fixing the balance bar, reducing friction, buffering stress and pressure, etc. It can ensure that the balance bar functions stably, reduce friction and energy loss, protect the balance bar and extend its service life. At the same time, it can also absorb and disperse stress and pressure to maintain the stable driving posture of the vehicle .
Youdaoplaceholder0 Hazards of Fault : Damage to the rubber sleeve of the balance bar can cause unstable driving of the vehicle, increase fuel consumption, and affect handling performance and ride comfort. In addition, it also affects the accuracy of the four-wheel alignment, causing the vehicle to veer off course and braking distance to increase, posing a safety hazard .
Youdaoplaceholder0 Preventive and maintenance recommendations : Regularly check the condition of the balance bar rubber sleeve, conduct a routine check every 20,000 kilometers, and carry out preventive replacement at 60,000 kilometers or after 5 years of use. If the rubber sleeve is found to be cracked, deformed or wrapped with oil stains, it should be replaced in time. In addition, avoiding prolonged parking and using rubber protectant every 2 years can extend the service life of the rubber sleeve.
