The function of the front balance bar of a car
The core function of the front balance bar is to suppress body roll, enhance handling stability, and reduce body roll on turning or uneven roads by generating anti-roll drag through twisting . In addition, it can enhance the rigidity of the vehicle body, extend the lifespan of chassis components, and indirectly improve braking performance.
Youdaoplaceholder0 Core Function Analysis
Youdaoplaceholder0 Roll prevention and stability control

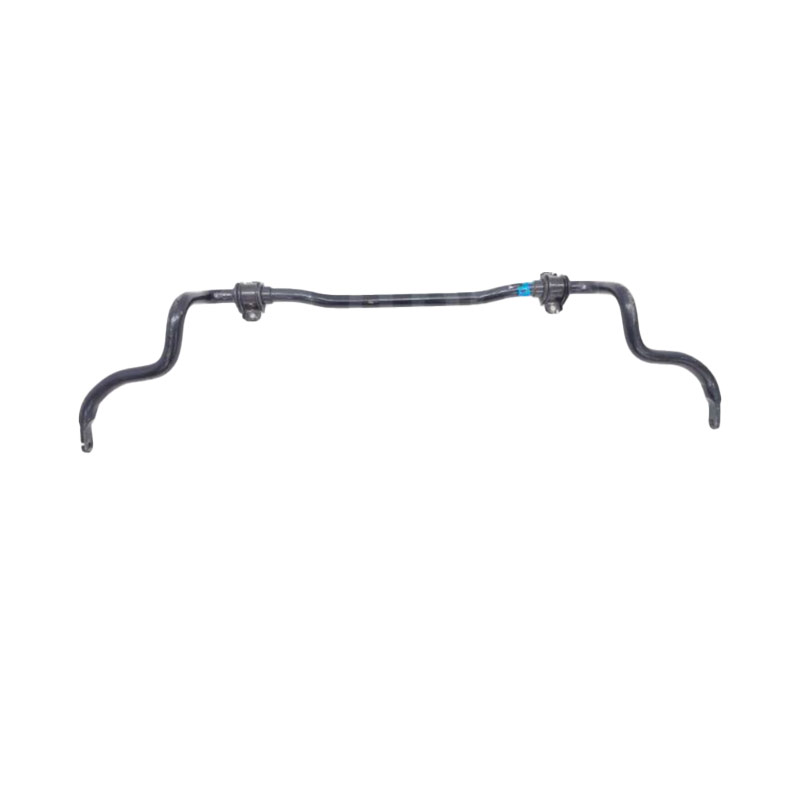

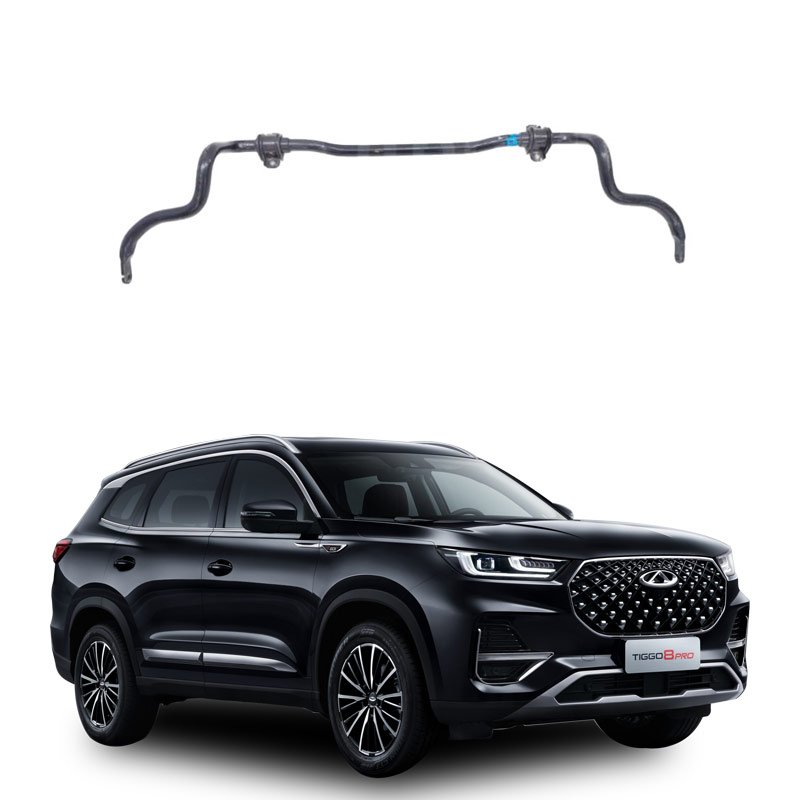

The front balance bar (anti-roll bar) is placed horizontally in the front suspension system. When the vehicle turns or one side of the wheel encounters a bumpy road surface, the difference in compression amplitude between the left and right suspensions will cause the bar body to twist, generating a reverse torque to counteract the body tilt. Measured data shows that the high-performance balance bar can reduce the roll Angle by 35% and lower the probability of losing control during emergency lane changes by 42%.
Youdaoplaceholder0 Rigidity enhancement and chassis protection
By connecting the frame with the suspension components, the front balance bar can enhance the overall structure of the front of the vehicle, prevent the vehicle body from deforming and the four wheels from shifting, and at the same time balance the torque of the four wheels, thereby extending the lifespan of chassis components such as shock absorbers.
Youdaoplaceholder0 Indirect performance improvement
Youdaoplaceholder0 Brake assist : A properly functioning balance bar prevents the front wheels from veering off course and shortens braking distance.
Youdaoplaceholder0 Warning of abnormal noise : Damaged rubber sleeve may cause abnormal noise in the chassis. It needs to be repaired in time to prevent more serious failure.
Youdaoplaceholder0 Working principle and dynamic response
Youdaoplaceholder0 Synchronous and asynchronous action mechanism : The balance bar works only when the left and right suspensions are out of sync due to road undulations or steering. If both sides move synchronously (such as in a straight line), the rod body will not twist.
Youdaoplaceholder0 Extreme scene performance : The balance bar resists distortion caused by lateral force when the car is cornering at high speed; When off-road vehicles are driving on rough roads, reduce the tilt to ensure passability.
The work principle of the car front balance bar is through its unique structural design, using lateral stability to suppress the roll of the vehicle when turning, thus ensuring driving stability. The balance bar closely connects the vehicle body and the wheels through a series of levers and connectors. During work, the balance bar uses its lateral stability to effectively suppress the roll tendency of the vehicle when turning, ensuring stability during drive .
Specific working mechanism
Youdaoplaceholder0 Dynamic adjustment : When the vehicle turns, the balance bar will be dynamically adjusted as the wheels turn. The ball joint part of the balance bar is designed flexibly and can make timely Angle changes during steering to meet the steering requirements of the wheels. This dynamic adjustment not only ensures the stability of the vehicle when turning, but also enhances driving comfort and safety .
Youdaoplaceholder0 To suppress roll : When coaxial wheels move up and down simultaneously while turning, the balance bar will rotate freely within the bushing and will not function. But when the coaxial wheel has height difference or the suspension deformation on both sides is not the same, the balance bar will be subjected to two opposite torsional moments in the vertical direction, causing the balance bar to twist and produce a reverse force, thereby effectively suppressing further deformation of the spring .
The influence of balance bars on vehicle performance
Youdaoplaceholder0 Improve handling stability : By restricting the independent movement of the suspension, the balance bar helps the vehicle perform more smoothly when turning, enhancing handling feel and handling confidence .
Youdaoplaceholder0 Reduce body roll : During turning, the vehicle will roll due to centrifugal force. The balance bar reduces roll by connecting the left and right suspensions and keeps the body smooth .
Youdaoplaceholder0 Improve grip : By reducing the rise or fall of one side suspension, keep the contact area between the tires and the ground stable, thereby enhancing grip .
Youdaoplaceholder0 Enhance ride comfort : The balance bar buffers the body sway and wobbling during turns to a certain extent, enhancing the ride experience .
