What is a car pressure adjustment switch

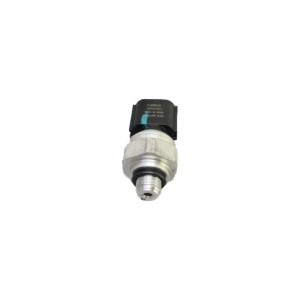

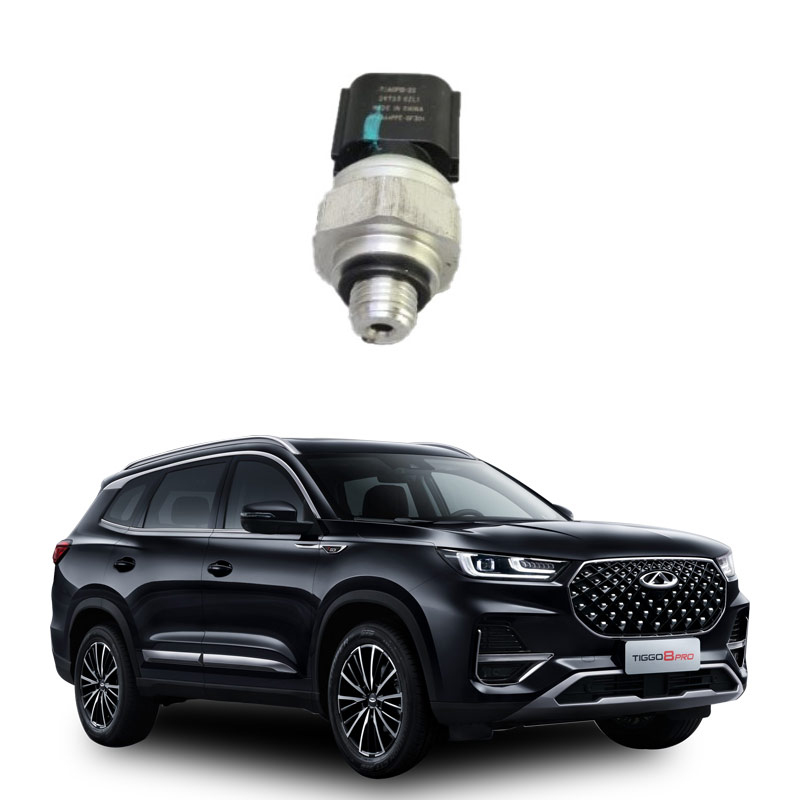

Youdaoplaceholder0 Automobile air conditioning pressure switch is an important component installed in the air conditioning refrigeration cycle pipeline. It is mainly used to detect the pressure of the refrigeration cycle system and cut off the corresponding circuit when the pressure is abnormal to protect the system from damage.
Type and Function
The pressure switches for automotive air conditioning mainly include the following types:
Youdaoplaceholder0 High pressure switch : Installed in a high pressure line, usually on a liquid storage dryer, to prevent the system pressure from being too high. When the pressure is too high, the high pressure switch will cut off the electromagnetic clutch circuit of the compressor or connect the high speed circuit of the cooling fan to prevent the pressure from rising further .
Youdaoplaceholder0 Low-pressure switch : Installed on the high-pressure pipeline to prevent the system pressure from being too low. When the pressure is too low (usually due to lack of oil), the low-pressure switch cuts off the electromagnetic clutch circuit of the compressor, stopping the compressor to protect the system .
Youdaoplaceholder0 High and low pressure combination switch : This switch has both high and low pressure protection functions and is installed in the refrigerant high pressure circuit. When the system pressure is too high or too low, the switch will act to cut off the electromagnetic clutch circuit and stop the compressor from working .
Working principle
The working principle of the automotive air conditioning pressure switch is based on the design of the pressure sensor. When the system pressure is abnormal, the sensor inside the pressure switch will detect the pressure change and trigger the switch to act mechanically or electronically. For instance, a high-pressure switch will cut off the clutch circuit when the pressure is too high, while a low-pressure switch will cut off the electromagnetic clutch circuit when the pressure is too low. High and low pressure combination SWITCH CAN protect BOTH too high and too low pressure .
Installation location and maintenance
The pressure switch for automotive air conditioning is usually installed on high-pressure pipelines or liquid storage dryers. During maintenance, pay attention to check the working condition of the switch and whether the system pressure is normal, regularly inspect and replace damaged parts to ensure normal operation of the system and extend service life .
The main function of the CAR air conditioning pressure switch is to protect the CAR air conditioning refrigeration system from abnormal pressure causing system damage . It is installed in the refrigerant circulation pipeline and can monitor the system pressure in real time, and activate the protection mechanism when the pressure is too high or too low.
Specific functions and types
Youdaoplaceholder0 High-pressure switch : When the system pressure rises sharply due to poor heat dissipation, excessive refrigerant, etc., the high-pressure switch will cut off the clutch circuit to stop the compressor from working to prevent damage to components due to excessive pressure, or start the cooling fan to run at high speed to reduce the system pressure .
Youdaoplaceholder0 Low-pressure switch : When insufficient refrigerant or leakage causes the system pressure to be too low, the low-pressure switch cuts off the electromagnetic clutch circuit to prevent the compressor from operating without sufficient refrigerant, thereby protecting the compressor .
Youdaoplaceholder0 Dual pressure switch : Combining the functions of a high and low pressure switch into one, it can prevent both overpressure and underpressure, providing more comprehensive system protection .
Youdaoplaceholder0 Three-pressure switch : Composed of a double-pressure switch and a medium-pressure switch, it can not only adjust the compressor to stop rotating, but also open the condenser fan circuit when the refrigerant pressure reaches the intermediate value, ensuring that the system can operate well under different pressure conditions .
Working principle and installation location
The pressure switch for automotive air conditioning is usually installed in the refrigerant circulation pipeline. The high-pressure switch is mostly installed on the liquid storage dryer, and the low-pressure switch is installed in the high-pressure pipeline with threaded joints. Different types of switches protect air conditioning systems by monitoring changes in system pressure, cutting off or connecting circuits in time .
Maintenance and troubleshooting
Regular inspection and maintenance of the car air conditioning pressure switch is the key to ensuring its normal operation. If a fault of the pressure switch is found, it should be replaced in time to avoid system damage. In addition, keeping the system clean and regularly checking refrigerant levels are also important preventive measures for failure .
If you want to know more, keep reading the other articles on this site!
