What is the rear balance bar of a car
Rear balance bar is an important component of a car. Its main function is to prevent the body from twisting and rolling during driving, and to ensure the stability and safety of the vehicle on turns and uneven roads.
The definition and function of the rear balance bar
The rear balance bar is connected to the shock absorber at the rear of the vehicle. Through its elasticity and rigidity, it can effectively balance the force difference between the left and right sides when the vehicle turns or travels on uneven roads, reducing the body roll and twist. Specifically:
Youdaoplaceholder0 To prevent the vehicle from twisting and rolling : When the two rear wheels of the vehicle are not at the same horizontal height, the balance bar transmits the force from the outside to the inside, sharing the pressure and keeping the vehicle balanced .
Youdaoplaceholder0 Improve handling and stability : When turning, the balance bar can reduce the force difference between the inside and outside, control the body roll, and improve the vehicle's handling and stability .
Youdaoplaceholder0 Reduce bumps, improve comfort : When driving on uneven roads, the balance bar can reduce bumps, reduce the burden on shock absorbers and improve ride comfort .
The structure and material of the rear balance bar

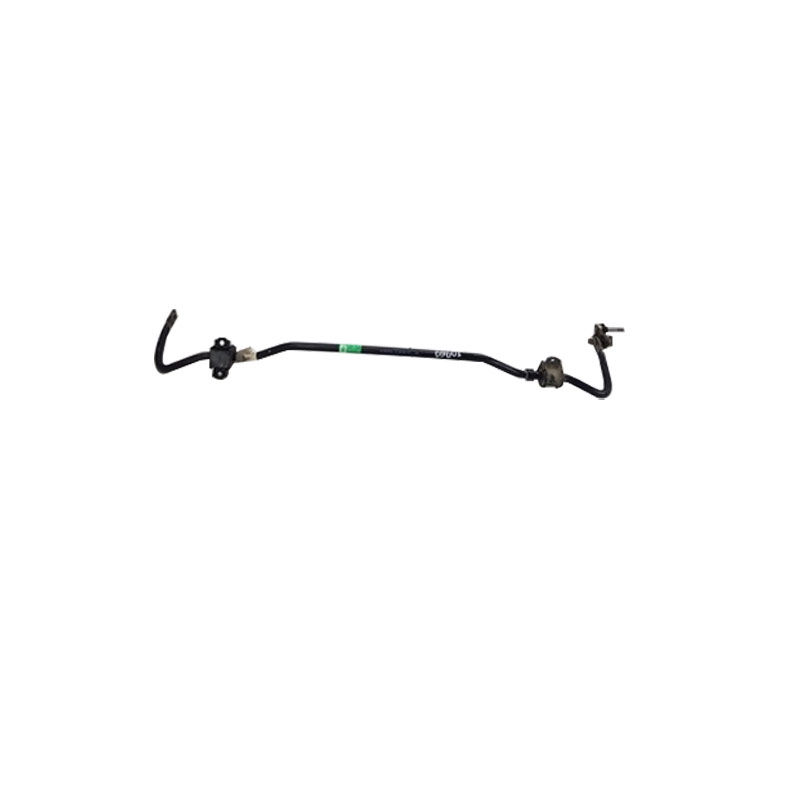

The rear balance bar is usually made of elastic steel, which has high hardness and toughness. To reduce weight while maintaining strength, some high-end models may use lightweight materials such as aluminum .
Installation and maintenance of the rear balance bar
The rear balance bar is generally installed by professional technicians to ensure its correct position and tightness on the vehicle. During routine maintenance, the balance bar and its connecting parts (such as rubber sleeves, ball heads, etc.) should be inspected regularly and damaged parts should be replaced in time to keep it working properly .
The CORE function of the CAR rear balance bar is to reduce roll when the vehicle turns, improve handling stability and COMFORT balance the force difference between the left and right suspensions by torsional force to prevent the body from twisting or rolling, while extending the life of the chassis and components.
Youdaoplaceholder0 Core Function Analysis
Youdaoplaceholder0 Roll control : When the vehicle turns, the centrifugal force causes the outer suspension to compress and the inner suspension to stretch. The rear balance bar transmits part of the outer pressure to the inner side through the torsional force of the steel bar body, effectively reducing the body tilt (the measured roll Angle can be reduced by 35%).
Youdaoplaceholder0 Enhanced stability :
When driving on bumpy roads or making emergency lane changes, balance the height difference between the left and right wheels to avoid excessive force on one side (the probability of losing control during emergency lane changes is reduced by 42%).
Increase the ground contact area of the tires in rainy and snowy weather to prevent skidding.
Youdaoplaceholder0 Extension effect
Youdaoplaceholder0 Chassis protection : Balancing the torque of all four wheels reduces shock absorber load and extends chassis life.
Youdaoplaceholder0 Enhanced comfort : Reduces the transmission of bumps on uneven roads and lessens the wobbling sensation of passengers.
Youdaoplaceholder0 Details of how it works
The rear balance bar is usually connected to both sides of the rear suspension and functions through the following mechanism:
Youdaoplaceholder0 Mechanical transmission : The torque generated by deformation acts in the opposite direction on the suspension, creating a balancing effect of "pushing on the outside and pulling on the inside".
Youdaoplaceholder0 Dynamic engagement : Activated only when the left and right suspension actions are out of sync (such as when passing a pothole on one side), without affecting normal driving comfort.
Youdaoplaceholder0 Rear balance bar failure of a car is mainly manifested as abnormal noise, loosening, damage and other problems, which can affect the balance, stability and driving safety of the vehicle.
Fault manifestation
Youdaoplaceholder0 Abnormal noise : During driving, especially when passing over bumpy roads, the rear balance bar may produce a clattering or creaking abnormal noise .
Youdaoplaceholder0 Loose : A loose balance bar ball joint can cause abnormal wobbling of the vehicle during driving, affecting the vehicle's handling and stability .
Youdaoplaceholder0 Damage : Damage to the ball joint or rubber sleeve of the balance bar can cause significant roll of the vehicle when turning or driving on bumpy roads, and may even affect the balance and safety of the vehicle .
Cause of failure
Youdaoplaceholder0 Wear : The ball joint of the balance bar will wear out during use, which will cause the clearance to increase, resulting in abnormal noise and loosening .
Youdaoplaceholder0 Damage : Scratches or tears on the ball joint or rubber sleeve of the balance bar will weaken its protective effect, thereby affecting the stability and safety of the vehicle .
Youdaoplaceholder0 Improper installation : During installation, if the fixing nut is not tightened to the specified torque, it will cause the ball pin thread to become loose, which in turn will cause abnormal noise and loosening .
Solution method
Youdaoplaceholder0 Check and replace : Once the ball joint or rubber sleeve of the balance bar is found to be damaged, it should be checked and replaced in time at a 4S store or repair shop .
Youdaoplaceholder0 Tightening : For loose balance bar ball joints, the problem can be solved by tightening the nuts. If it cannot be tightened, a damaged part may need to be replaced.
Youdaoplaceholder0 Maintenance : Regularly check the condition of the ball joint and rubber sleeve of the balance bar to ensure they are in good working condition and to prevent failure due to wear or damage .
