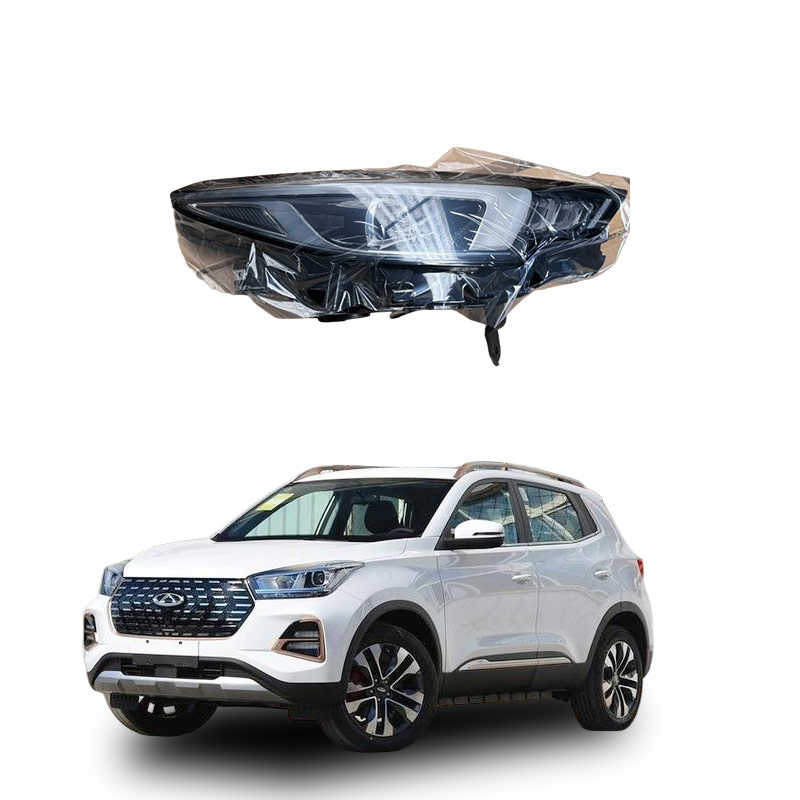

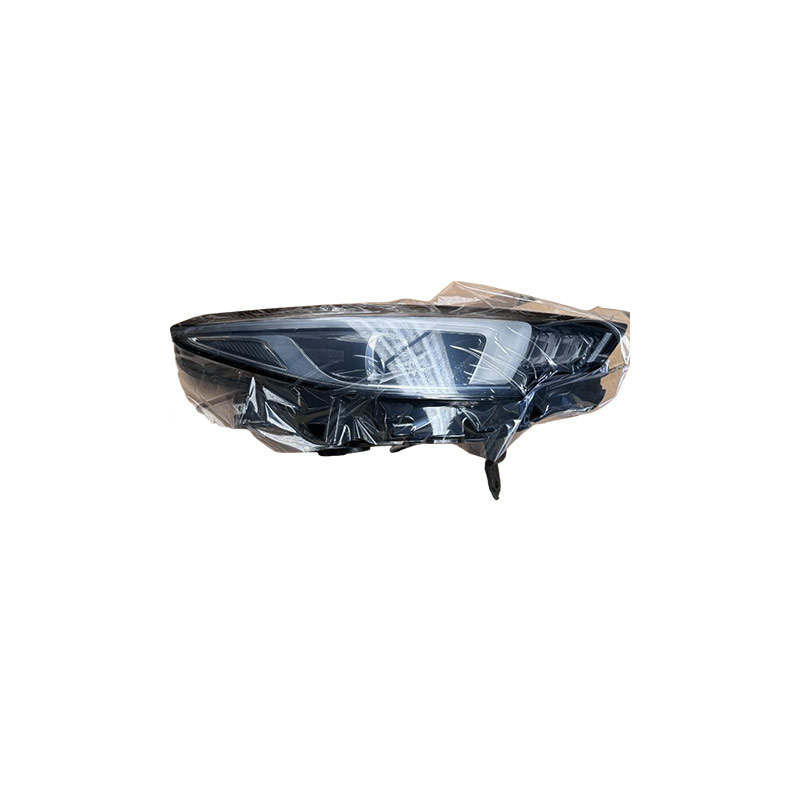

The function of the left front headlight assembly of the car
The left front headlight assembly is the complete lighting and signaling system at the left front of the vehicle. Its functions mainly include lighting and traffic signal transmission.
Main functions
Provide road lighting
In conditions of low visibility such as at night, in tunnels, or in rainy and foggy weather, it illuminates the front of the vehicle to help the driver clearly identify the road conditions, obstacles, and traffic signs.
Transmit driving intentions and position information
Through components such as turn signals and marker lights, it indicates the driving direction, width, and presence status to other road users (such as oncoming vehicles and pedestrians).
Enhance driving safety
It integrates functions such as high beam, low beam, and fog lights, adapting to different driving environments. Some high-end models also support intelligent functions such as adaptive high beam and automatic dimming, reducing glare interference.
Component structure (brief)
The left front headlight assembly typically includes the following core components:
Lens: Protects internal components and balances aerodynamics and aesthetics
Main headlights (near/far beam): Core lighting source, mostly using LED, halogen, or xenon lamps
Fog lights: Enhance penetration in rainy and foggy weather
Turn signals & marker lights: Used for signal indication
Reflector & lens: Optimizes light distribution and improves lighting efficiency
Electronic control unit: Supports automatic headlights, daytime running lights, etc.
The left front headlight assembly and the right front headlight together form a symmetrical lighting system for the vehicle, ensuring balanced light distribution and compliance with national motor vehicle lighting safety standards (such as GB 4599).
A malfunction of the left front headlight assembly is a common but urgent issue that requires prompt handling. It may involve multiple systems. According to the latest public information (as of May 2026), the following are the common causes, troubleshooting steps, and repair suggestions:
Common failure causes
Light bulb damage: Approximately 60%, manifested as blackened filament or blackened glass, especially halogen bulbs have a shorter lifespan (500–1000 hours)
Fuse blowout: Approximately 25%, caused by overloading or short circuit, check the corresponding fuse for the headlight
Line problems: Approximately 15%, including loose plugs, oxidation, damaged wires, or poor grounding
Control module failure: Such as the headlight control module (LCM), body control module (BCM), or variable electromagnet damage, common in high-end models (such as Land Rover, Audi)
Sensor or automatic headlight settings malfunction: May lead to incorrect light status judgment
Recommended troubleshooting steps (in order of priority)
Check the light bulb
Turn off the power, remove the left front headlight assembly, and observe if the bulb is blackened or the filament is broken.
Test with the same model bulb (such as H7), be careful not to touch the halogen bulb glass surface.
Check the fuse
Refer to the vehicle manual to find the location of the left front headlight fuse (usually in the engine compartment or driver's cabin fuse box).
Use a multimeter or fuse test pen to detect continuity, if blown, replace with a new fuse of the same amperage
Check the lines and plugs
Confirm if the headlight plug is secure, with no oxidation or corrosion.
Check if the wiring is worn, broken, or the grounding is loose (especially the left grounding point)
Read the fault code (if applicable)
If the vehicle is equipped with automatic headlights or adaptive systems, use an OBD diagnostic tool to read the fault code (such as B1D02-15 indicating a failure of the variable electromagnet)
Test voltage and relays
Measure the voltage at the headlight power supply terminal (should be around 12V), if abnormal, it may involve relays or control modules
Repair suggestions
Special reminder: For some models (such as 2023 model Land Rover Range Rover), if the internal variable electromagnet of the left front headlight assembly is damaged, it is usually necessary to replace the entire assembly, and cannot be repaired individually
Preventive measures Avoid using non-original or high-power bulbs to prevent overloading of the circuit.
Regularly check the sealing of the headlights to prevent water ingress that could damage the electronic components.
Clean the headlight connectors every 6-12 months and inspect the circuit status. If self-checking fails, it is recommended to contact a professional repair service as soon as possible to ensure driving safety.
