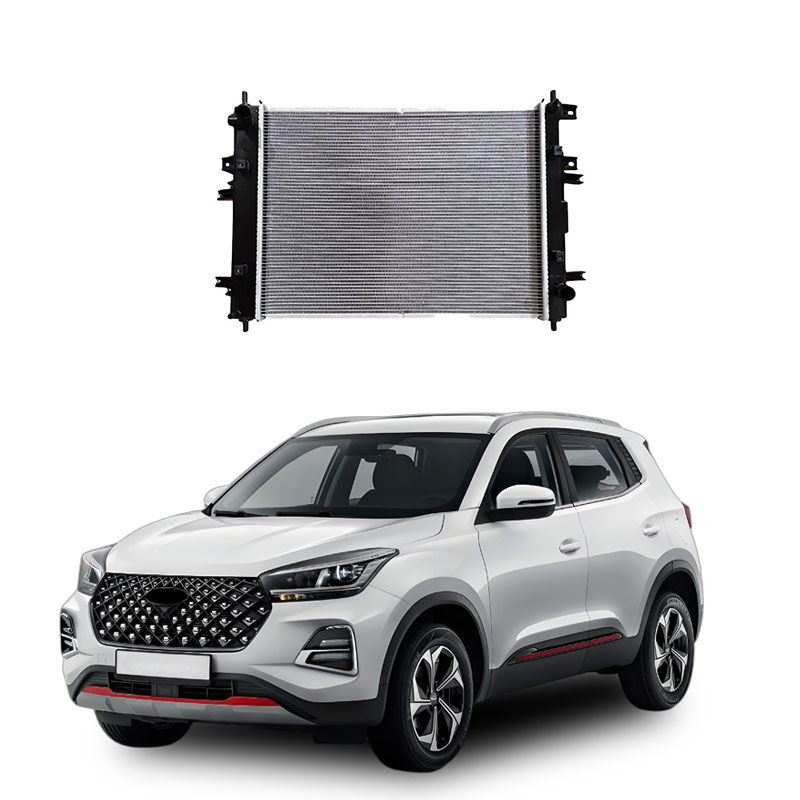

The function of a car radiator
The main function of a car radiator is to lower the temperature of the coolant through heat exchange, maintain the normal operating temperature of the engine, prevent overheating damage and ensure operational efficiency.
Youdaoplaceholder0 Core Functions and Working principle
Youdaoplaceholder0 The core function of heat exchange is .
As the core component of the engine cooling system, through the heat exchange between the coolant and the air, the heat generated by the engine operation is quickly dissipated into the atmosphere, maintaining the engine temperature within the optimal operating range of 85-95℃.
After absorbing the heat from the engine, the coolant can reach a temperature of over 100℃. When flowing through the radiator core, it undergoes convective heat exchange with the external flowing air, achieving a typical cooling effect of 15-30℃.
Youdaoplaceholder0 Structural design and performance optimization
Youdaoplaceholder0 high-efficiency heat dissipation structure .
The three-dimensional heat dissipation system is composed of an inlet chamber, an outlet chamber and a heat sink core. Among them, the heat sink core adopts a tube-belt type (corrugated heat dissipation belt + cooling tube) or tube-sheet type (heat sink + cooling tube) structure, and the heat dissipation area is increased by more than 12% compared with the traditional design.
The cooling tubes adopt a flat circular cross-section design to reduce air resistance and increase the contact area. The surface of the heat dissipation tape is equipped with "louvered" type openings to break the air adhesion layer and enhance the heat transfer efficiency.
Youdaoplaceholder0 System collaboration and technological innovation .
Form interlocking control with the water pump, thermostat and cooling fan:
When the temperature is low, turn off the large circulation through the thermostat to accelerate the warm-up process.
When the temperature is high, the fan forces air to be drawn out, increasing the air flow rate to over 10m/s.
In terms of material iteration, sedans generally use aluminum radiators (with a weight reduction of 40%), while commercial vehicles retain the copper hard brazing process to meet high-strength requirements.
Youdaoplaceholder0 Classification and application extension
Youdaoplaceholder0 functional radiator differences .
The main radiator serves the overall cooling of the engine.
The intercooler is specifically designed for cooling the intake air of turbocharged engines (reducing the intake air temperature by 15-20℃).
The oil radiator maintains the viscosity of the oil (with the working temperature controlled between 80 and 120℃).
The main manifestations of car radiator faults are abnormal coolant temperature, decreased power, leakage and other problems, which require timely maintenance.
Common symptoms
Youdaoplaceholder0 Abnormal coolant temperature : Radiator failure can cause the coolant to fail to circulate normally, with the temperature soaring above 105℃, which may lead to engine overheating or even "boiling over".
Youdaoplaceholder0 Weakened power : The engine experiences weak acceleration and unstable power output due to overheating, which is particularly evident during high-speed driving.
Youdaoplaceholder0 coolant leakage : A damaged radiator can cause coolant to seep out from the damaged area, and liquid traces can be seen on the ground.
Youdaoplaceholder0 Increased engine noise : Due to the thermal expansion or deformation of components, the operating noise significantly increases.
The dashboard warning light is on : the water temperature warning light or oil pressure warning light may be on, indicating a system abnormality.
Cause of malfunction
Youdaoplaceholder0 Radiator blockage : Impurities in the coolant or the mixed use of brands cause water channel blockage, affecting the circulation efficiency.
Youdaoplaceholder0 pump or thermostat failure : A damaged pump or a thermostat not being turned on can cause the coolant to flow poorly.
Youdaoplaceholder0 Abnormal water temperature sensor : False alarm of temperature signal, triggering abnormal operation of the cooling system.
Youdaoplaceholder0 not cleaned for a long time : the lack of regular maintenance leads to a decline in heat dissipation performance, causing a chain of faults.
Emergency handling suggestions
If the above symptoms are found, the coolant level should be checked immediately, the leakage situation observed, and professional maintenance should be contacted. Avoid driving for long periods or forcing the engine to start to prevent further damage to the engine.
