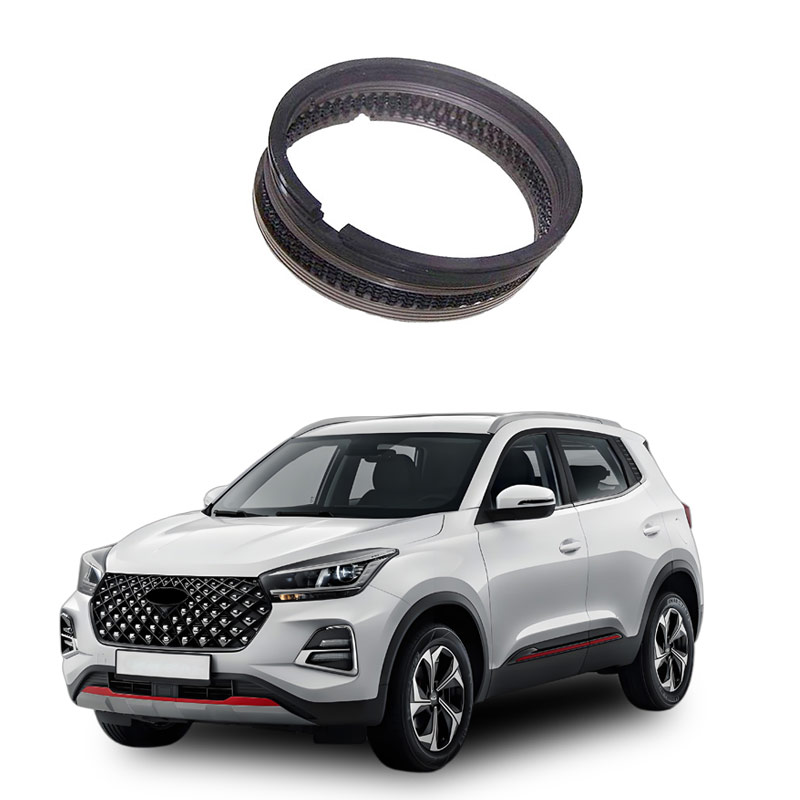

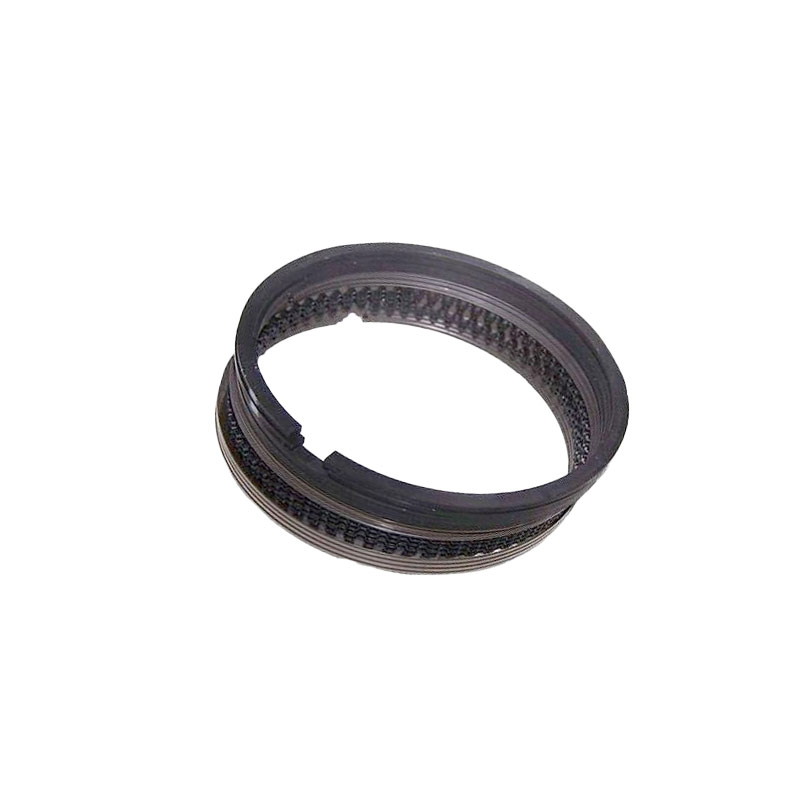

What are piston rings
Piston rings are metal rings embedded in the piston grooves. As core components of the engine, they mainly perform functions such as sealing, heat transfer, and oil scraping. They are divided into two types: gas rings and oil rings.
Youdaoplaceholder0 Definition and function of piston rings
Piston rings are metal ring-shaped parts installed in the piston grooves. Their core functions include:
Youdaoplaceholder0 Sealing function : To prevent high-pressure gas in the combustion chamber from leaking into the crankcase, ensuring the engine works effectively.
Youdaoplaceholder0 heat transfer effect : The heat absorbed by the top of the piston is conducted to the cylinder wall and dissipated through the cooling system.
Youdaoplaceholder0 Oil scraping and oil distribution : The oil ring is responsible for scraping off the excess oil on the cylinder wall and forming a uniform oil film to reduce friction and wear.
Youdaoplaceholder0 Structure and classification
Youdaoplaceholder0 gas ring (sealing ring) :
It is usually located in the first and second ring grooves of the piston and mainly seals the combustion gas.
The materials should possess high-temperature resistance and high strength, such as alloy cast iron or ductile iron.
Youdaoplaceholder0 oil ring :
Located in the third ring groove, the excess engine oil is recovered through the oil scraper hole to prevent the "oil burning" phenomenon.
Working environment and material properties
Piston rings operate under high-temperature, high-pressure and high-speed friction conditions and need to meet the following requirements:
It has good elasticity and ensures a tight fit with the cylinder wall.
It has high wear resistance to cope with long-term sliding friction.
It has strong heat resistance and can prevent deformation and failure at high temperatures.
The main functions of the piston ring include sealing the combustion gas, controlling the lubricating oil film, conducting heat and supporting the piston movement . It is a core component for the stable operation of internal combustion engines.
The core function of the piston ring is
Youdaoplaceholder0 sealing effect .
To prevent the high-temperature and high-pressure gas in the combustion chamber from leaking into the crankcase and ensure the efficiency of the compression and power stroke (the main function of the gas ring).
Prevent engine oil from entering the combustion chamber through the gap between the piston and the cylinder to participate in combustion (oil ring auxiliary function).
Youdaoplaceholder0 Oil control effect .
The oil ring, through a specially designed structure, scrapes off the excess engine oil on the cylinder wall, reducing oil consumption and the formation of carbon deposits.
At the same time, a uniform oil film is formed on the cylinder wall to ensure the lubrication effect between the piston and the cylinder.
Youdaoplaceholder0 heat conduction effect .
Approximately 70% to 80% of the heat absorbed by the piston head is conducted to the cylinder wall and dissipated through the cooling system to prevent the piston from overheating and deforming.
Youdaoplaceholder0 supporting effect .
Reduce the frictional resistance between the piston and the cylinder wall to maintain the stability of the piston's linear motion.
Prevent abnormal wear caused by direct contact between the piston and the cylinder wall (commonly known as "knocking").
The implementation mechanism of function
Youdaoplaceholder0 Pressure balance design : Dynamic sealing is achieved through the combination of gas pressure and elastic force, maintaining effective sealing even in the event of wear.
Youdaoplaceholder0 multi-ring combination : The typical structure consists of 2 gas rings and 1 oil ring, respectively focusing on gas sealing and oil film control.
Youdaoplaceholder0 Surface treatment technology : Enhance wear resistance and extend service life by using processes such as chromium plating and nitriding.
Piston ring faults are mainly manifested as engine oil burning (such as blue smoke coming out of the exhaust pipe), abnormal increase in fuel consumption, power decline and cylinder seal failure, etc. They are mainly caused by carbon deposits blocking, wear or incorrect installation. Professional diagnosis and timely handling are required to avoid serious engine damage.
Youdaoplaceholder0 Common fault phenomena
Piston ring failure usually leads to the following observable symptoms:
Youdaoplaceholder0 Oil burning phenomenon : blue smoke comes out of the exhaust pipe, and the oil consumption abnormally increases (for example, more than 0.5 liters per 1,000 kilometers).
Youdaoplaceholder0 Performance decline : Weakened engine power, weak acceleration, accompanied by a 30%-50% increase in fuel consumption.
Youdaoplaceholder0 Mechanical abnormality : cylinder leakage causes an increase in exhaust temperature, abnormal water temperature in the cylinder liner, or abnormal noise and vibration.
Analysis of the main causes of
The core causes of the failure include:
Youdaoplaceholder0 Carbon deposit blockage : Long-term use of inferior fuel or short-distance driving can cause carbon deposits to get stuck in the gaps of the piston rings, accounting for 60% to 70% of the fault cases, allowing engine oil to seep into the combustion chamber and burn.
Youdaoplaceholder0 Piston ring wear or fracture : Improper maintenance of the air filter introduces dust, causing wear of the ring groove or fatigue fracture of the ring body, reducing the sealing performance.
Youdaoplaceholder0 Installation or design defect :
The opening gap of the piston ring is too small, and it gets stuck in the cylinder after thermal expansion.
The bending of the connecting rod causes the piston to tilt during operation, resulting in uneven wear.
Youdaoplaceholder0 Diagnostic and testing methods
A confirmed diagnosis requires a combination of professional methods:
Youdaoplaceholder0 Preliminary observation : Record the oil consumption and check if blue smoke or pungent exhaust gas is emitted during cold start.
Youdaoplaceholder0 instrument detection :
Endoscopic inspection of carbon deposits on the cylinder wall or piston ring jamming.
Measure the cylinder pressure value (normally it should be higher than 10bar). If it is lower, it indicates that the seal has failed.
If you want to know more, keep reading the other articles on this site!
