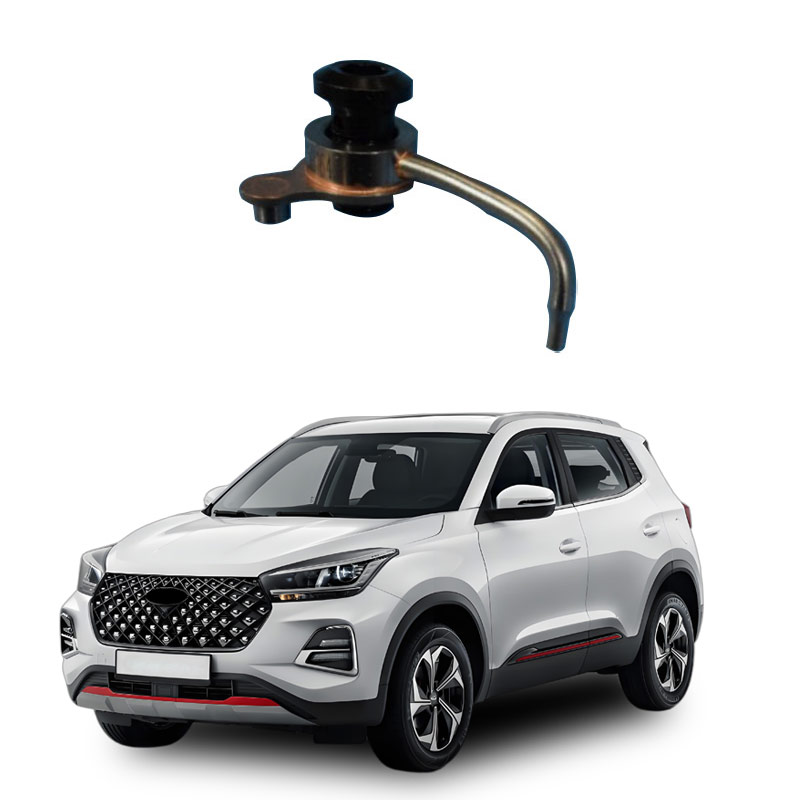

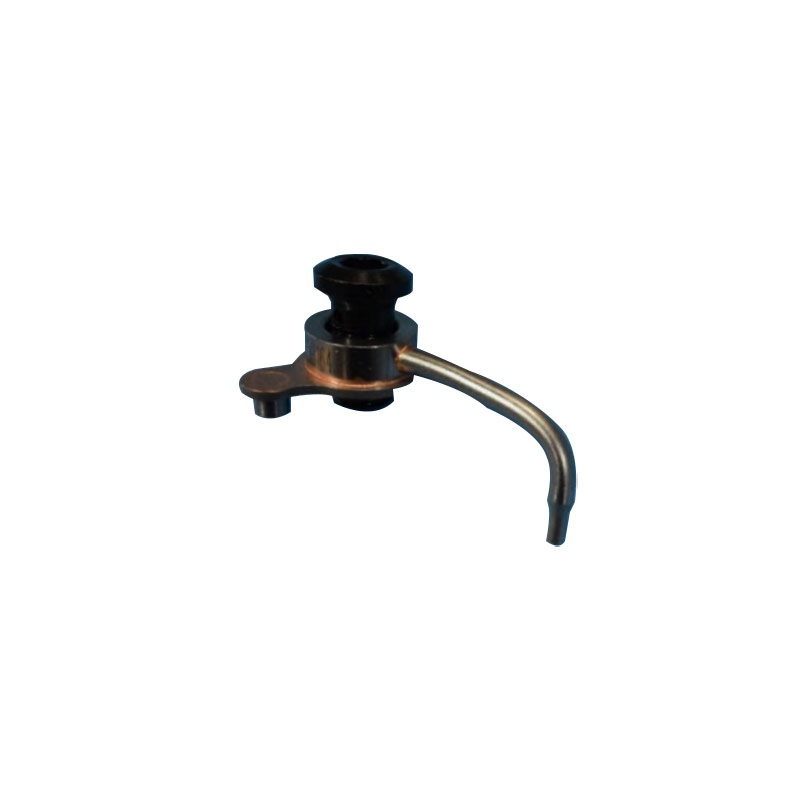

What does a car piston cooling nozzle mean
The automotive piston cooling nozzle is a key component inside the engine used to cool the piston. It lubricates and dissipates heat to the piston by spraying engine oil, preventing expansion, adhesion or damage caused by overheating.
Core function
The main function is to provide continuous oil cooling and lubrication for the piston, preventing the piston material from softening or melting due to high temperatures, and reducing friction and wear at the same time. If the nozzle is clogged, it may cause the piston to overheat, lubrication failure, and in severe cases, lead to cylinder pulling failure.
Structural features
It is usually installed on the oil passage of the engine block and adopts a hollow tube design with a small inner diameter, which is prone to being clogged by impurities in the engine oil. The piston skirts of some models are designed with notches to prevent collisions with the nozzles.
Maintenance suggestions
When overhauling the engine, the cylinder block oil passage and nozzles must be thoroughly cleaned to prevent metal debris from remaining. When replacing parts, make sure that the nozzle and the piston notch position match to avoid assembly errors.
The main function of the car piston cooling nozzle is to atomize the engine lubricating oil and spray it onto the inner side of the piston to prevent it from overheating. Specific functions include:
Cooling effect
By atomizing the lubricating oil and spraying it into the inner cavity of the piston, the temperature at the top and skirt of the piston is reduced, avoiding problems such as expansion, carbonization of the lubricating oil, and adhesion of the sliding surface caused by high temperature.
Lubricating effect
After the lubricating oil is atomized, it covers the surface of the piston, reducing the frictional resistance during movement and extending the service life of the piston.
Prevent cylinder pulling
If the cooling nozzle is clogged and causes the piston to overheat, it may lead to serious faults such as burning off the top of the piston and cylinder pulling, directly affecting the engine performance.
Structural adaptation
Some of the piston skirts are designed with notches to ensure that the nozzle maintains a safe distance from the piston's movement trajectory and avoid collision.
A malfunction of the cooling nozzle for the car piston may cause abnormal operation of the engine, mainly manifested as piston erosion, power decline and other problems. The following is the specific fault phenomenon and cause analysis:
Fault phenomenon
Youdaoplaceholder0 Piston ablation : White point-like ablation or alloy melting appears on the top of the piston. In severe cases, pits or even fractures may form.
Youdaoplaceholder0 Engine power decline : Insufficient cooling leads to a decrease in combustion efficiency and a reduction in power output.
Youdaoplaceholder0 Increased fuel consumption : Abnormal cooling system may cause poor atomization of fuel, which in turn leads to an increase in fuel consumption.
Youdaoplaceholder0 Exhaust temperature rise : The coolant fails to cool effectively, resulting in an abnormal increase in exhaust temperature.
Common causes
Youdaoplaceholder0 Nozzle blockage or deformation
Impurities, scale or carbon deposits in the coolant may clog the nozzles and affect the cooling effect.
Youdaoplaceholder0 location installation problem
If the gap between the nozzle and the piston skirt is too small, it may cause a collision, leading to breakage or deformation.
Youdaoplaceholder0 Insufficient oil pressure
Insufficient oil pressure or switch failure may impede the normal pressure build-up of the nozzle, leading to cooling failure.
Youdaoplaceholder0 component aging/damage
Long-term use may cause faults in the nozzle control valve (such as N522) or the connecting wiring harness.
Solution
Youdaoplaceholder0 Clean the nozzle : Remove impurities, scale or carbon deposits to ensure unobstructed flow.
Youdaoplaceholder0 Check the oil pressure system : detect the oil level, pressure switch and control valve, and repair or replace the faulty parts.
Youdaoplaceholder0 Adjust the gap : Ensure that the gap between the nozzle and the piston skirt is reasonable to avoid collision.
Youdaoplaceholder0 Replace faulty parts : Replace damaged nozzles, control valves or wiring harnesses.
If the vehicle shows the above symptoms, it is recommended to promptly inspect and repair the relevant components of the cooling system to prevent further damage to the engine.
